Irradiated Closed Cell Crosslinked Polyethylene IXPE Foam For Floor Underlayment
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROSH,REACH,UL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Irradiated Close Cell Crosslinked Polyethylene Foam IXPE Foam For Floor Underlayment | Material: | LDPE(Low Density Polyethylene Foam) |
|---|---|---|---|
| Density: | 25-300 Kg/m3 | Thickness: | 0.5-12mm(single Layer) To 100mm(multilayer) |
| Width: | 300-1800mm | Color: | Black, White, Grey, Blue, Green, Red, Yellow, Etc. |
| Highlight: | IXPE closed cell foam sheets,close cell structure ixpe foam,floor underlayment ixpe foam sheet |
||
Product Description

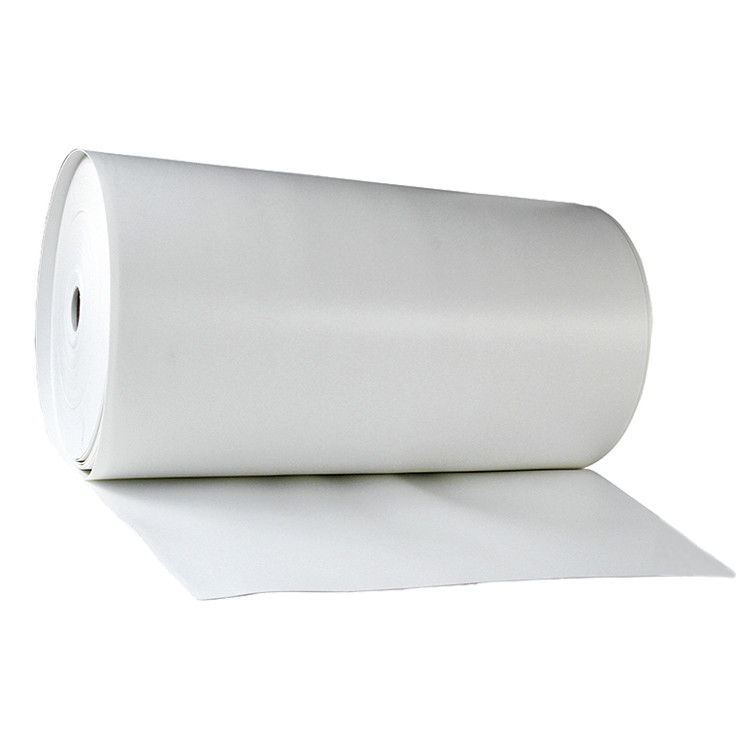

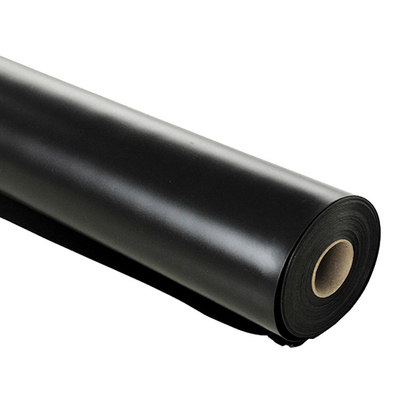

Irradiated Close Cell Crosslinked Polyethylene Foam IXPE Foam for floor underlayment
IXPE foam is physical cross-linked and close cell structure with lightweight,eco-friendly,good mechanical performance.The thickness could be thinnest as 0.1mm.The material could be applied into PE foam tape, Medical, Electronics,Flooring underlayment, Automotice,Gaskets/sealing,HVAC insulation, Construction etc.
-
Thermal Insulation
-
Waterproof
-
Sound Insulation
-
Shock Absorption
-
Thermal Forming
-
Conductice/Anti-static
Specifications:
| IXPE Foam Physical Properties | |||||||||
| Test Item | 5 Times | 8 Times | 10 Times | 15 Times | 20 Times | 25 Times | 30 Times | 35 Times | |
| Density(kg/m³) | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | |
| Shore Hardness(°) | ＞3mm thick | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 25-30 | 18-25 | 13-18 |
| ≤3mm thick | 55-65 | 45-55 | 35-45 | 25-35 | 20-25 | 15-20 | |||
| Tensile Strength(Mpa) | TD | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.35 | ≥0.3 | ≥0.2 | ≥0.15 |
| MD | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.38 | ≥0.35 | ≥2.5 | ≥0.2 | |
| Elogation(%) | TD | ≥200 | ≥150 | ≥130 | ≥130 | ≥130 | ≥110 | ≥110 | ≥110 |
| MD | ≥220 | ≥170 | ≥150 | ≥150 | ≥150 | ≥120 | ≥120 | ≥110 | |
| Tearing Strength(KN/m) | TD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 |
| MD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | |
| Compressed Distortions(% 23℃+2℃6,22h) | ≤2 | ≤3 | ≤5 | ≤7 | ≤8 | ≤9 | ≤10 | ≤11 | |
| Dimension Change (% 70℃+2℃,22h) |
TD | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 |
| MD | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | |
| Water Absorbtion (g/cm2)23℃+2℃,24h | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 | |
| Thermal Conductivity(w/mk) | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.045 | ≤0.040 | ≤0.040 | |
The difference between XPE foam and IXPE foam:
|
|
IXPE foam |
XPE foam |
|---|---|---|
|
Full name |
Physical crosslinked polyethylene foam or Irradiation crosslinked polyethylene foam |
Chemically crosslinked polyethylene foam |
|
Production |
Material PE--Extrusion--Vertical foaming--IXPE foam |
Material PE--Extrusion--Horizontal foaming--XPE foam |
|
Difference |
Compared with XPE foam, IXPE foam has more delicate cellular,more smooth and flat surface,more excellent mechanical performance |
|
|
Color |
Black ,White,Grey and customization |
|
|
Density |
25-300kg/m3 |
|
|
Thickness |
3-15mm(single layer) to 100mm(multilayer) |
0.5-12mm(single layer) to 100mm(multilayer) |
|
Material |
LDPE(Low density polyethylene) |
|
|
Length |
No limited |
|
|
Width |
300-1800mm |
|
|
Supplied form |
Foam roll, Foam sheet, Foam block, ESD PE foam, PE foam with adhesive, PE foam with aluminum foil |
|
|
Optional service |
Laminating, Cutting and Adhesive coated |
|
|
Application |
HVAC system&Airconditioning,Packaging, Building&construction,Sports&Leisure, |
Foam tape,Floor underlayment,Medical,Sports&Leisure |
Applications:
Foam Camping Mat Foam Floating Mat
3D Foam Adhesive Wallpaper ESD Foam Tray
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q4:What's the MOQ?
Available MOQ is 3000m2 ,But we generally export the foam in full 40HQ containers.
