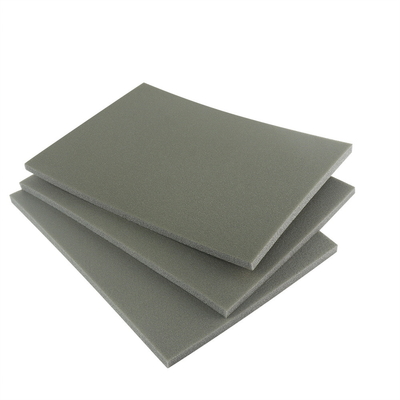

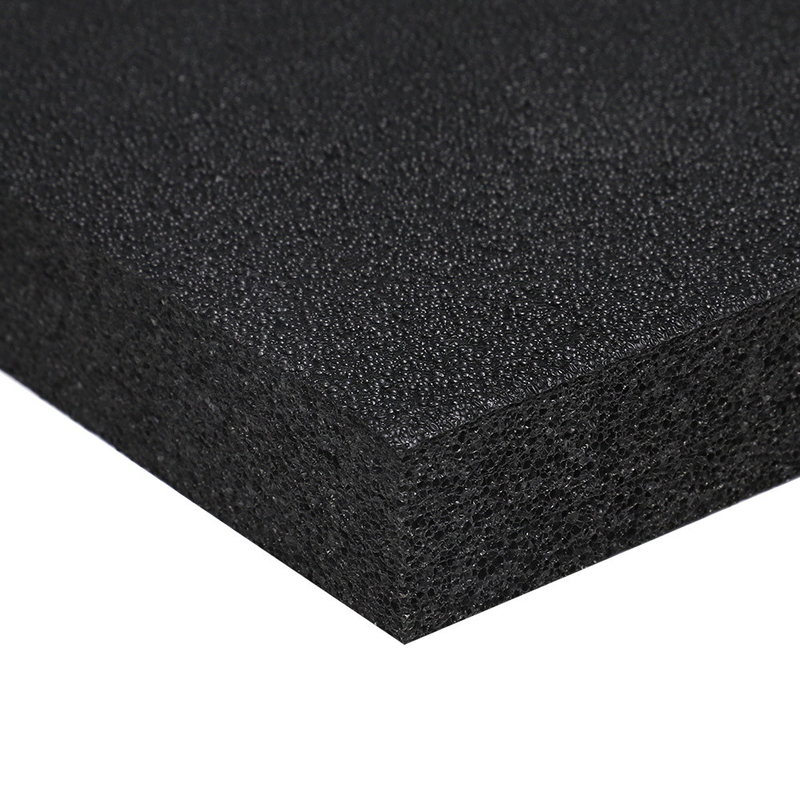

Flame Retardant XPE Foam Material XLPE Insulation Foam Material For Building
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Flame Retardant XPE Foam Material XLPE Insulation Foam Material For Building | Material: | Cross-linked Polyethylene Foam |
|---|---|---|---|
| Density: | 28~200kg/m³ | Shore Hardness: | 13~70° |
| Texture: | Smooth Or Embossed | Thickness: | 3~15mm(single Layer) To 100m(multilayer) |
| Advantage: | Thermal Insulation, Waterproof | Production Process: | Compounding-extrusion-foaming |
| Highlight: | flame retardant xpe foam material,flame retardant xlpe insulation foam |
||
Product Description
Flame Retardant XPE Foam Material XLPE Insulation Foam Material For Building
Crosslinked Polyethylene foam common abbreviations XPE foam, XLPE foam, AEPE foam, etc. Among them, XPE and XLPE are commonly used abroad.It is made of low-density polyethylene (LDPE), AC foaming agent and other powders after being melted, mixed and extruded, and then foamed at high temperature. XPE foam has good water resistance, moisture resistance, insulation, shock absorption, cushioning, rebound, thermal insulation, weather resistance, aging resistance, internal corrosion resistance, easy processing and quality.
- Thermal Insulation/heat insulation
- Waterproof
- Sound Insulation
- Shock Absorption
- Thermal Forming
- Conductice/Anti-static
Specifications:
|
Test item |
Items |
|||||||
|
5 Times |
8 Times |
10 Times |
15 Times |
20 Times |
25 Times |
30 Times |
35 Times |
|
|
Density (kg/m3) |
200±30 |
125±15 |
100±10 |
66.7±8 |
50±6 |
40±4 |
33.3±3 |
28.6±2 |
|
Shore Hardness |
60~70 |
50~60 |
45~50 |
35~45 |
30~35 |
25~30 |
18~25 |
13~18 |
|
(°) |
||||||||
|
Water absorbtion (23℃±2℃,24h)g/cm2 |
≤0.02 |
≤0.02 |
≤0.03 |
≤0.03 |
≤0.04 |
≤0.04 |
≤0.05 |
≤0.05 |
|
Heat conductivity |
≤0.092 |
≤0.082 |
≤0.072 |
≤0.062 |
≤0.053 |
≤0.047 |
≤0.041 |
≤0.038 |
The difference between XPE foam and IXPE foam
|
IXPE foam Physical crosslinked polyethylene foam or Irradiation crosslinked polyethylene foam Material PE--Extrusion--Vertical foaming--IXPE foam |
XPE foam Chemically crosslinked polyethylene foam Material PE--Extrusion--Horizontal foaming--XPE foam |
|
|---|---|---|
|
Full name |
||
|
Production |
||
|
Difference |
Compared with XPE foam, IXPE foam has more delicate cellular,more smooth and flat surface,more excellent mechanical performance |
|
|
Color |
Black ,White,Grey and customization |
|
|
Density |
25-200kg/m3 |
|
|
Thickness |
3-15mm(single layer) to 100mm(multilayer) |
0.5-12mm(single layer) to 100mm(multilayer) |
|
Material |
LDPE(Low density polyethylene) |
|
|
Length |
No limited |
|
|
Width |
300-1800mm |
|
|
Supplied form |
Foam roll, Foam sheet, Foam block, ESD PE foam, PE foam with adhesive, PE foam with aluminum foil |
|
|
Optional service |
Laminating, Cutting and Adhesive coated |
|
|
Application |
HVAC system&Airconditioning,Packaging, Building&construction,Sports&Leisure, |
Foam tape,Floor underlayment,Sports&Leisure |
Applications:
Construction and Engineering Materials
1) Roof insulation/heat insulation/waterproof/road/airport runway/culvert/bridge buffer and heat shrinkable materials
2) Floor/wall thermal insulation, sound insulation and moisture-proof/ground waterproof and shock-proof
3) Pipe insulation, ventilation pipe insulation and outdoor building protection projects
Packaging:
Electronics, components, appliances and other demanding protection and packaging materials.
FAQ:
Q1:Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again, like to be remade
to be mattress, underlay, furniture filling etc
Q2:Does your foam work with adhesives?
Our foam does work well with adhesives. PE foam tape is one of the foam application
Q3:Can you do custom design?
Of course,Color,Logo,Size,Pattern and Materials all could be customized, we have the professional technical staffs.
Q4:What is the difference between polyethylene and polyurethane foam?
Polyethylene is a firm, closed-cell foam.It is also sometimes used as a top layer over softer foam in order to provide better footing while the lower, softer foam adds some shock absorption. What is polyurethane foam? Polyurethane is a softer, open-cell type of foam that is made in varying degrees of firmness.
