3mm IXPE Crosslinked Polyethylene Foam Sheet For SPC Flooring Underlay
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROSH,REACH,UL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 3mm IXPE Foam Sheet Thermal Insulation Polyethylene Foam For SPC Flooring Underlay | Material: | LDPE |
|---|---|---|---|
| Density: | 25-333 Kg/m3 | Shore Hardness: | 15~65°（≤3mm）13~70°（＞3mm） |
| Advantage: | Thermal Insulation, Waterproof And Sound Absorption | Application: | Insulation,packaging, Sports Equipment,Automotive ,construction |
| Highlight: | thermal insulation thin pe foam,3mm ixpe crosslinked polyethylene foam,flooring underlay 3mm pe foam |
||
Product Description

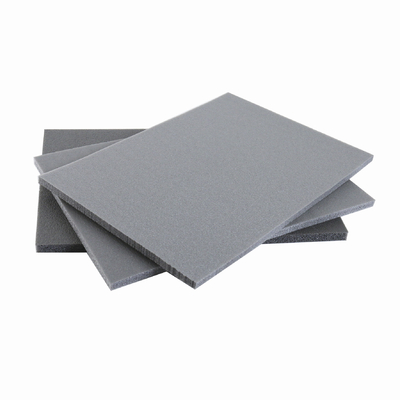

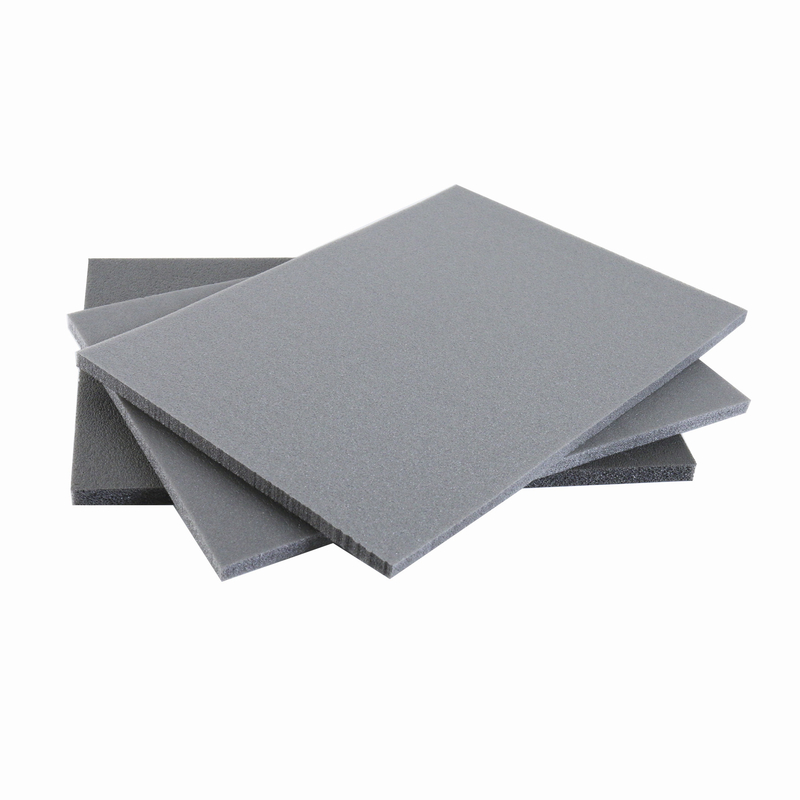

3mm IXPE foam sheet thermal insulation polyethylene foam for SPC flooring underlay
Crosslinked Polyethylene foam common abbreviations XPE foam, XLPE foam, AEPE foam, etc. Among them, XPE and XLPE are commonly used abroad.It is made of low-density polyethylene (LDPE), AC foaming agent and other powders after being melted, mixed and extruded, and then foamed at high temperature. XPE foam has good water resistance, moisture resistance, insulation, shock absorption, cushioning, rebound, thermal insulation, weather resistance, aging resistance, internal corrosion resistance, easy processing and quality.
Specifications:
| IXPE Foam Physical Properties | |||||||||
| Test Item | 5 Times | 8 Times | 10 Times | 15 Times | 20 Times | 25 Times | 30 Times | 35 Times | |
| Density(kg/m³) | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | |
| Shore Hardness(°) | ＞3mm thick | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 25-30 | 18-25 | 13-18 |
| ≤3mm thick | 55-65 | 45-55 | 35-45 | 25-35 | 20-25 | 15-20 | |||
| Tensile Strength(Mpa) | TD | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.35 | ≥0.3 | ≥0.2 | ≥0.15 |
| MD | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.38 | ≥0.35 | ≥2.5 | ≥0.2 | |
| Elogation(%) | TD | ≥200 | ≥150 | ≥130 | ≥130 | ≥130 | ≥110 | ≥110 | ≥110 |
| MD | ≥220 | ≥170 | ≥150 | ≥150 | ≥150 | ≥120 | ≥120 | ≥110 | |
| Tearing Strength(KN/m) | TD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 |
| MD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | |
| Compressed Distortions(% 23℃+2℃6,22h) | ≤2 | ≤3 | ≤5 | ≤7 | ≤8 | ≤9 | ≤10 | ≤11 | |
| Dimension Change | TD | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 |
| (% 70℃+2℃,22h) | MD | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 |
| Water Absorbtion (g/cm2)23℃+2℃,24h | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 | |
| Thermal Conductivity(w/mk) | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.045 | ≤0.040 | ≤0.040 | |
The difference between XPE foam and IXPE foam:
|
|
IXPE foam |
XPE foam |
|---|---|---|
|
Full name |
Physical crosslinked polyethylene foam or Irradiation crosslinked polyethylene foam |
Chemically crosslinked polyethylene foam |
|
Production |
Material PE--Extrusion--Vertical foaming--IXPE foam |
Material PE--Extrusion--Horizontal foaming--XPE foam |
|
Difference |
Compared with XPE foam, IXPE foam has more delicate cellular,more smooth and flat surface,more excellent mechanical performance |
|
|
Color |
Black ,White,Grey and customization |
|
|
Density |
25-300kg/m3 |
|
|
Thickness |
3-15mm(single layer) to 100mm(multilayer) |
0.5-12mm(single layer) to 100mm(multilayer) |
|
Material |
LDPE(Low density polyethylene) |
|
|
Length |
No limited |
|
|
Width |
300-1800mm |
|
|
Supplied form |
Foam roll, Foam sheet, Foam block, ESD PE foam, PE foam with adhesive, PE foam with aluminum foil |
|
|
Optional service |
Laminating, Cutting and Adhesive coated |
|
|
Application |
HVAC system&Airconditioning,Packaging, Building&construction,Sports&Leisure, |
Foam tape,Floor underlayment,Medical,Sports&Leisure |
Applications:
Foam Camping Mat Foam Floating Mat
ESD Foam Tray 3D Foam Adhesive Wallpaper
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:Do you have fire retardant foam?
Yes, we have. UL94 HF-1; FMVSS302/ISO3795; BS476 Class 0
Q3:How can I know the suitable foam density I need?
Our PE foam density is between 25 kg/m3 and 330 kg/m3
We can provide the best solution for you according to the application, Density, hardness, thickness.
And The free sample is available for your confirmation and test.
