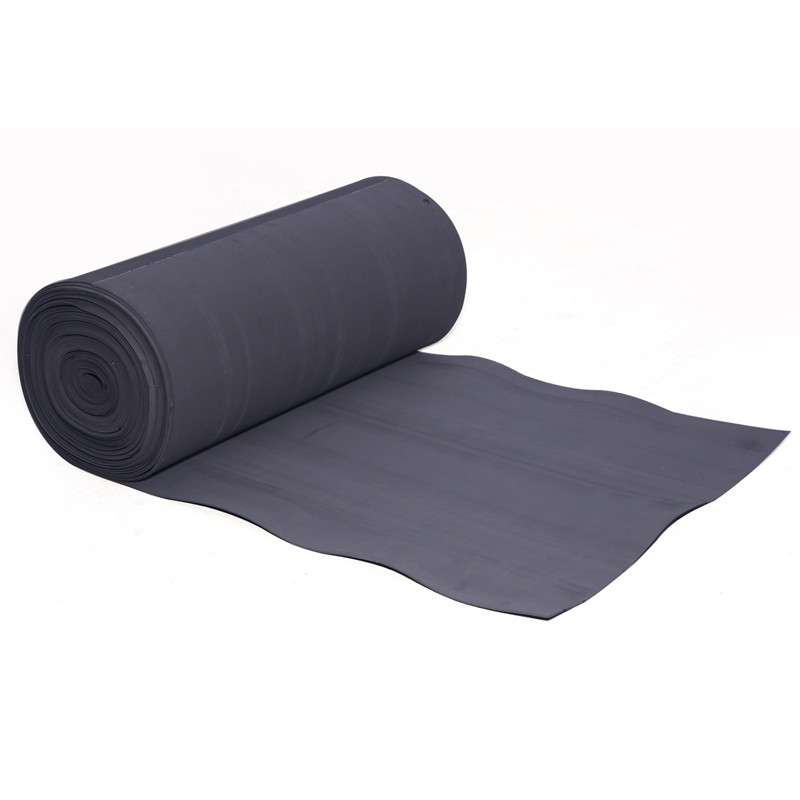

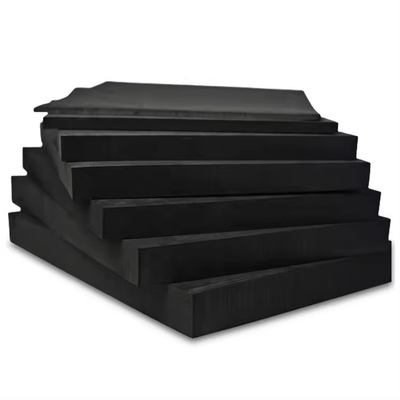

38 Degree To 70 Degrees Hardness EVA Material Ethylene Vinyl Acetate Foam Sheet
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | $0.5-1.5/Piece |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs/week |
|
Detail Information |
|||
| Product Name: | 38 Degree To 70 Degrees Hardness EVA Material Ethylene Vinyl Acetate Foam | Material: | Ethylene-Vinyl Acetate Copolymer |
|---|---|---|---|
| Density: | 50-150kg/m³ | Thickness: | 1-20mm |
| Hardness: | 10-80° | Size: | 1.2m*3m,1m*3m,1.5m*3m |
| Cell Structure: | Closed Cell,recycled Foam | Application: | Educational Products, Child Toys, DIY Material, Arts & Crafts |
| Highlight: | 54kg/m3 ethylene vinyl acetate foam,eva ethylene vinyl acetate foam oem |
||
Product Description
38 Degree To 70 Degrees Hardness EVA Material Ethylene Vinyl Acetate Foam
EVA refers to a foam material made of EVA and low-density polyethylene as raw materials, and other additives are added through molding foaming or injection molding foaming. EVA material is made from the copolymerization of ethylene and vinyl acetate. The English name is EthyleneVinylAcetate, or EVA for short.
EVA foam materials have excellent chemical properties and are widely used in the manufacture of shoe materials, EVA luggage linings, sporting goods materials EVA tool kits, building materials, and various emerging applications such as electronic accessories and automotive interiors.
Specification:
|
Material |
Hardness (Shore C) |
Density (kg/m3) |
Foam Rate |
Water Absoprtion (%) |
|
EVA |
25±5 |
90±20 |
40 |
≤1 |
|
EVA |
35±5 |
110±20 |
35 |
≤1 |
|
EVA |
45±5 |
110±20 |
20 |
≤1 |
|
EVA |
55±5 |
110±20 |
20 |
≤1 |
|
EVA |
65±5 |
180±20 |
20 |
≤1 |
Parameters are for reference only and are customized according to customer requirements.
|
Density |
Hardness |
|
27 |
11.3 |
|
31 |
12.9 |
|
36 |
15 |
|
43 |
18 |
|
54 |
22.5 |
|
72 |
30 |
|
108 |
45 |
|
120 |
50 |
|
127 |
52.9 |
|
135 |
56.3 |
|
144 |
60 |
|
154 |
64.3 |
|
168 |
69.2 |
|
180 |
75 |
|
192 |
80 |
Applications:
ESD EVA Tray PEF Foam
(Secondary Foaming Low Density EVA Foam)
FAQ:
Q1:What's the physical properties of EVA foam?
EVA foam is quite versatile when it comes to physical properties. Its hardness levels can vary from 15 to 80 degrees on the Shore C scale. Additionally, its density can range from as low as 33 kg/m³ to as high as 280 kg/m³.
Q2:What's the relationship between hardness and density of EVA foam?
EVA foam density is divided into three standards according to hardness:
1)High foaming hardness is 5%-40%,
2)Secondary foaming hardness is 40%-55%
3) Primary foaming hardness is 55%-75%,
Currently 38-60 °,Most used in packaging linings
Q3:What are the production process of EVA foam?
1)Mold making
2)Sample making
3)Sample confirmation
4)Sample delivery
5)Mass production with quality inspection
6)Final quality inspection
7)Packaging
8)Shipping
