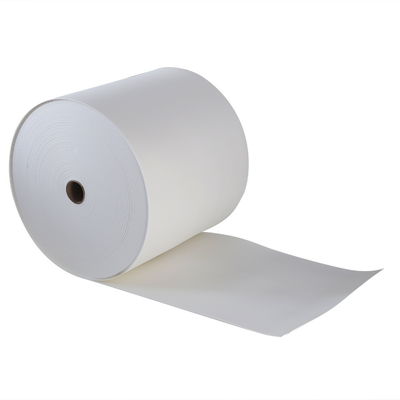

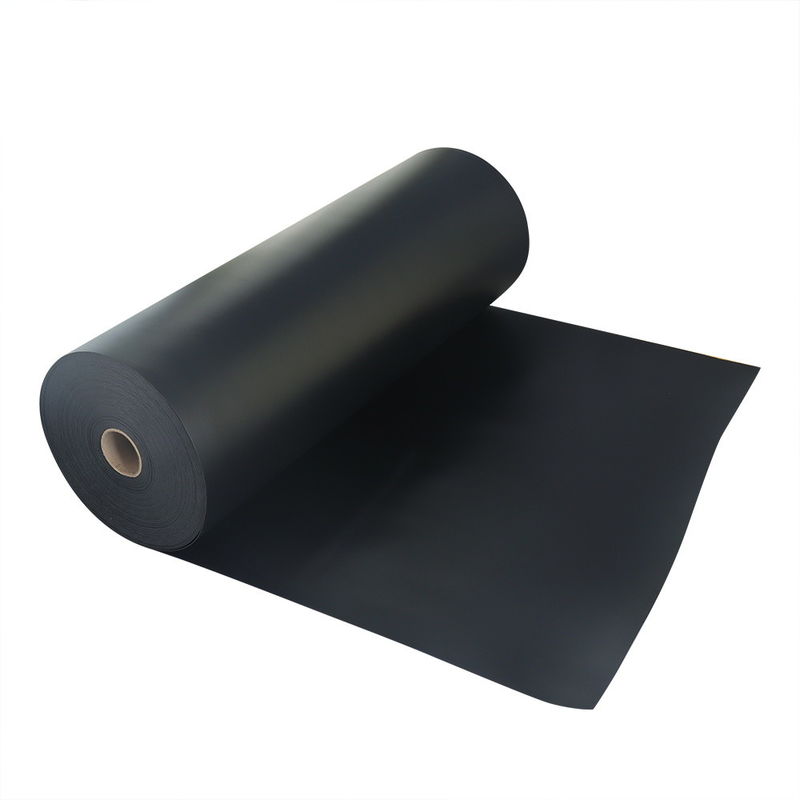

Customized Cross Linked IXPE Foam Closed Cell Thermal Insulation Foam For Acrylic Adhesive Tape
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROSH,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Customized Cross Linked IXPE Foam Closed Cell Thermal Insulation Foam For Acrylic Adhesive Tape | Material: | Irradiated Cross-linking |
|---|---|---|---|
| Thermal Property: | Closed-cell Insulation | Adhesive Bonding: | High-Dyne Surface |
| Water Resistance: | 100% Waterproof | Thermal Conductivity: | $0.035 - 0.045\text{ W/m.K}$ |
| Surface Tension: | ≥42 Dyne/cm(Corona Treated) | Keywords: | IXPE Tape Carrier, Corona Treated Foam, Waterproof Tape Substrate, Heat Resistant PE Foam |
| Service Temperature: | -40℃ To +110℃ | Compliance: | RoHS, REACH, VOC-free |
| Highlight: | Customized Cross Linked IXPE Foam,Closed Cell Thermal Insulation Foam,IXPE Foam for Acrylic Adhesive Tape |
||
Product Description
Our Customized Irradiation Cross-linked Polyethylene (IXPE) Foam is engineered for high-performance Acrylic Adhesive Tapes. Featuring an ultra-fine 100% closed-cell structure, it delivers superior thermal insulation and structural integrity. The specialized Double-sided Corona Treatment ensures exceptional bonding with acrylic systems, making it ideal for automotive, electronics, and construction applications.
| Category | Attribute | Typical Value | Key Advantage |
|---|---|---|---|
| Material | Type | Irradiation Cross-linked (IXPE) | Ultra-fine cells; superior surface flatness |
| Structure | Cell Type | 100% Closed-cell | 100% Waterproof; excellent thermal barrier |
| Dimension | Thickness | 0.2mm to 10mm | Supports ultra-thin precision electronics |
| Physical | Density | 33 - 200kg/m³ | High density for support; low for cushioning |
| Surface | Surface Energy | ≥ 42 Dyne/cm | High acrylic bond; zero delamination |
| Thermal | Conductivity | 0.035 - 0.045 W/m.K | Superior Heat Insulation properties |
| Durability | Temp Range | -40℃ to +110℃ | Heat resistant; no shrinkage during coating |
| Mechanical | Recovery | ≥ 95% | Excellent "spring-back" for long-term sealing |
| Compliance | Safety | RoHS / REACH / Low VOC | Non-toxic; safe for automotive/medical use |
Our PE foam density ranges from 25 kg/m³ to 330 kg/m³. We provide customized solutions based on your specific application requirements, including density, hardness, and thickness. Free samples are available for testing and confirmation.
Insulation foam is categorized as open cell or closed cell based on the structure of the small bubbles (cells) that compose the foam. In closed cell foam, the cells are pressed together, preventing air and moisture penetration. This makes closed cell foam more rigid and stable than open cell foam.
These foams have numerous applications including: Automotive NVH, PE foam tape, Building insulation, HVAC insulation, Electronics, Sports protection, Flooring underlay, and many more industrial uses.
Due to its crosslinked and closed-cell structure, XLPE foam is challenging to recycle. However, waste PE foam can be repurposed for applications such as mattress filling, underlay materials, and furniture padding.
Yes, we provide fire retardant foam that meets various safety standards including UL94 HF-1, FMVSS302/ISO3795, and BS476 Class 0 certifications.
