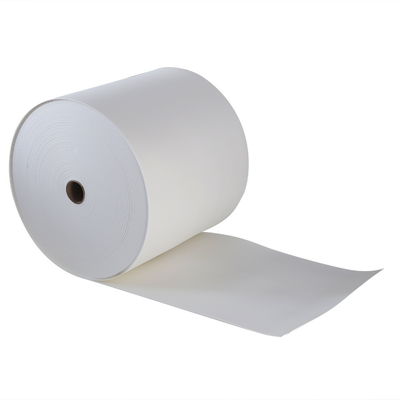

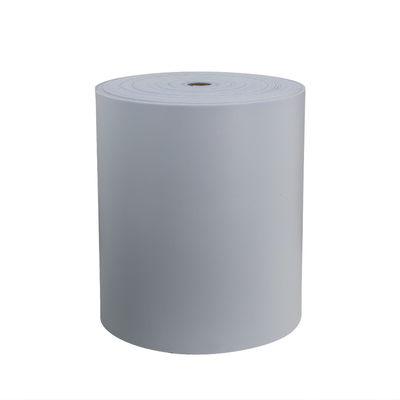

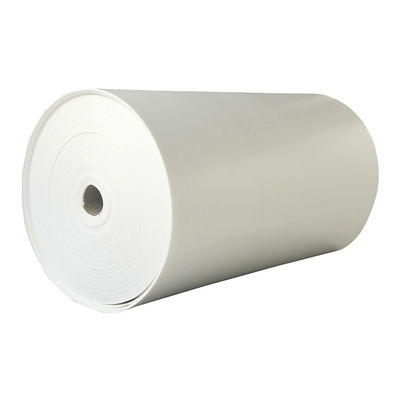

Polyethylene IXPE Cross Linked PE Foam For ECG Electrode
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROSH,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Cross-section Of Closed-cell Medical Grade Cross-linked Polyethylene Foam | Keywords: | Medical Grade IXPE Foam, Ultra-thin Medical Foam |
|---|---|---|---|
| Density Range: | 67kg/m³ To 100 Kg/m³ | Feature: | High Density, Lightweight, Durable, Tear-resistant,Sweat-proof, Moisture-proof |
| Standard Thickness: | 0.5mm, 0.8mm, 1.0mm, 1.5mm | Cell Structure: | 100% Closed-cell |
| Tensile Strength: | ≥ 0.5MPa | Water Abosrption: | ＜0.01 Mg/cm³ |
| Surface Finish: | Smooth, Matte, And Corona Treated | Color: | Medical White / Clinical Grey |
| Highlight: | Cross Linked PE Foam,Polyethylene IXPE PE Foam,PE Foam For ECG Electrode |
||
Product Description
Polyethylene IXPE Cross Linked PE Foam For ECG Electrode
Medical-grade irradiated cross-linked polyethylene foam specifically engineered for ECG electrodes and medical monitoring applications.
Key Advantages of IXPE Foam for Medical Electrodes
- Superior Adhesion Base: Fine, closed-cell surface ideal for medical-grade acrylic or silicone adhesives, ensuring secure placement during stress tests and long-term monitoring
- Hypoallergenic & Non-Toxic: Free from chemical foaming agents and CFCs, safe for prolonged contact with sensitive skin
- Fluid Barrier: Waterproof nature prevents perspiration or gels from soaking through, maintaining electrical signal integrity
- Flexibility & Comfort: Cross-linked structure provides memory and softness, contouring comfortably to body curves
Technical Specifications
| Property | Value | Advantage |
|---|---|---|
| Material Type | Irradiated Cross-linked Polyethylene (IXPE) | Medical Grade Foam, IXPE |
| Density Range | 67 kg/m³ - 100 kg/m³ (Customizable) | High density, lightweight |
| Standard Thickness | 0.5mm, 0.8mm, 1.0mm, 1.5mm | Ultra-thin medical foam |
| Cell Structure | 100% Closed-cell | Fluid resistant, hygiene |
| Color | Medical White / Clinical Grey | Professional aesthetics |
| Surface Finish | Smooth, Matte, and Corona treated | Glue-ready, high adhesion |
| Water Absorption | < 0.01 mg/cm² | Sweat-proof, moisture-proof |
| Tensile Strength | ≥ 0.5 MPa | Durable, tear-resistant |
| Processing Compatibility | Die-cutting, Laminating, Slicing | Easy manufacturing |
Medical Applications
- Disposable ECG/EKG Electrodes
- Electrosurgical Grounding Pads
- TENS (Transcutaneous Electrical Nerve Stimulation) Pads
- Medical Wearable Sensor Backing
- Wound Dressing Base Material
Frequently Asked Questions
What's your warranty policy?
We provide 12 months warranty on all our products. During this period, we repair defective items or provide other solutions for quality problems.
Why choose your IXPE foam?
Available in sheet, roll, and custom shapes
Thickness: Single layer 0.15-15mm
Maximum width: 1.6 meters, customizable cutting
Packaging: Polybag
Lead time: 3 days for sampling, 15 days for production
No MOQ for stock items, 3000 meters for customized products
Thickness: Single layer 0.15-15mm
Maximum width: 1.6 meters, customizable cutting
Packaging: Polybag
Lead time: 3 days for sampling, 15 days for production
No MOQ for stock items, 3000 meters for customized products
How can I order?
Send inquiry by email or WhatsApp with quantity, your country, and requirements. Final pricing and shipping costs are provided in our sales quotation.
When could I get the quotation?
We typically provide quotations within 24 hours after receiving your inquiry. For urgent pricing requests, please call us or indicate urgency in your email.
