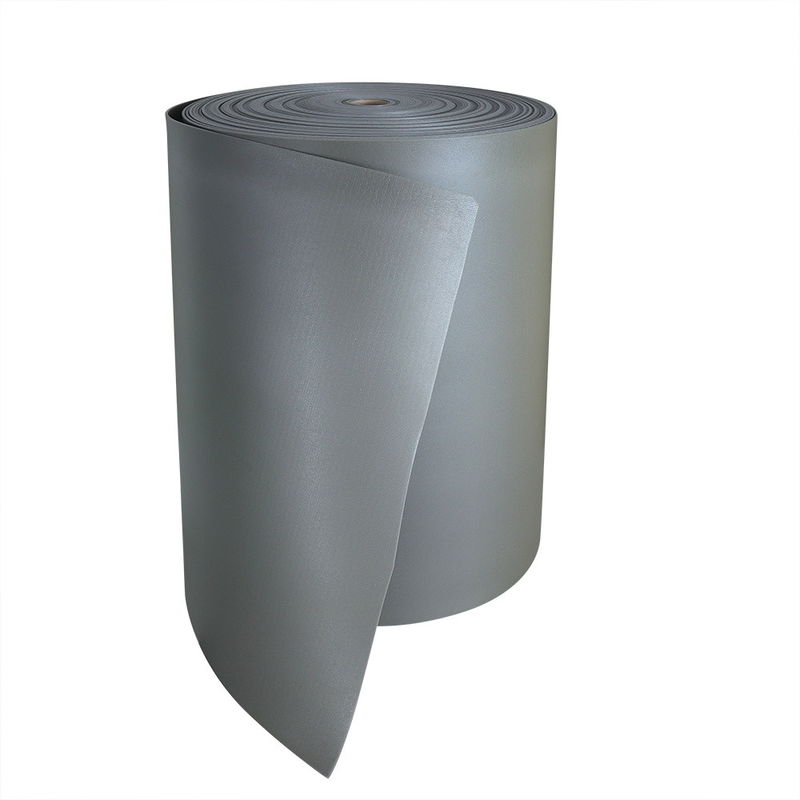

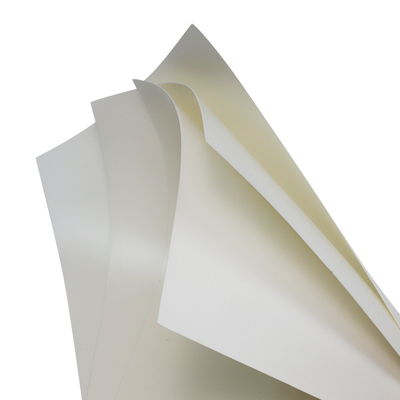

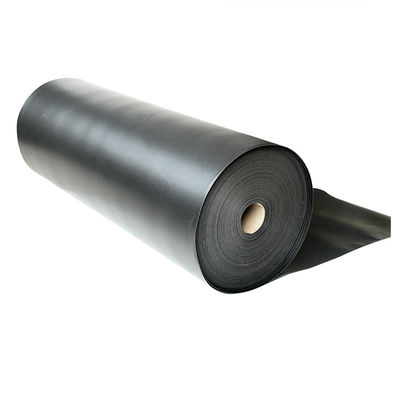

0.5 To 100mm Thickness Waterproof Thermal Insulation Cross Linked IXPE Foam
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROSH,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 0.5 To 100mm Thickness Waterproof Thermal Insulation Cross Linked IXPE Foam | Material: | Irradiation Cross-linked PE (IXPE) |
|---|---|---|---|
| Thermal Conductivity: | 0.035 - 0.045 W/m.K (Excellent Insulation) | Thickness: | 0.5mm To 100mm (Customizable) |
| Water Absorption: | ≤0.01 G/cm³(100% Waterproof) | Density: | 33kg/m³ - 200kg/m³ |
| Temp Resistance: | -40℃ To +110℃ | Keywords: | Thermal Insulation PE Foam, Cross Linked Polyethylene Foam, Waterproof IXPE Insulation |
| Structure: | 100% Independent Closed-cell | Compliance: | RoHS, REACH, Low VOC, Eco-friendly |
| Highlight: | 0.5 To 100mm IXPE Foam,Thermal Insulation IXPE Foam,Cross Linked IXPE Foam |
||
Product Description
0.5 To 100mm Thickness Waterproof Thermal Insulation Cross Linked IXPE Foam
Cross-linked IXPE foam is a high-performance material available in thicknesses from 0.5 to 100mm, fully customizable for diverse application requirements. Its dense closed-cell structure provides excellent waterproof and moisture-proof performance, effectively preventing water penetration while maintaining structural integrity in humid conditions. As a superior thermal insulation material, it features low thermal conductivity that efficiently reduces heat transfer, keeping spaces warm in cold weather and cool in hot conditions. Manufactured from irradiated cross-linked polyethylene, it offers high tensile strength, excellent flexibility, and superior compression resistance without deformation or tearing. The material is non-toxic, halogen-free, and environmentally friendly, complying with international environmental standards.
IXPE Foam Specifications
| Property | Description / Value |
|---|---|
| Foaming Ratio | 5X, 10X, 15X, 20X, 25X, 30X, 35X |
| Cell Structure | 100% Closed-cell (Fine & Uniform) |
| Thickness | 0.2mm - 12mm (Single layer); up to 100mm (Laminated) |
| Surface Energy | ≥ 42 Dyne/cm (Factory Corona Treated) |
| Thermal Range | -40 °C to +110°C |
| Compliance | RoHS, REACH, Low VOC, Halogen-free |
Material Comparison: IXPE vs. Other Foams
| Feature | IXPE (Irradiated) | XPE (Chemical) | EPE (Pearl Wool) |
|---|---|---|---|
| Cell Quality | Ultra-Fine. Microscopic and uniform | Medium. Visible small cells | Coarse. Large visible bubbles |
| Surface | Smooth/Silky. Perfect for coating | Rougher. Noticeable texture | Uneven. High friction |
| Thickness | Ultra-thin (0.2mm) possible | Typically >1.0mm | Typically >0.5mm |
| Strength | High. Excellent tensile strength | Medium-High | Weak. Easily torn |
| Heat Stability | Excellent. Minimal shrinkage | Good | Poor. Melts easily |
| Cost | Higher (Premium Performance) | Moderate | Low (Disposable) |
Frequently Asked Questions
What applications are suitable for XPE and IXPE foam?
These foams have numerous applications including: Automotive NVH, PE foam tape, Building insulation, HVAC insulation, Electronics, Sports protection, Flooring underlay, and many more industrial uses.
Is XLPE foam recyclable?
Due to its crosslinked and closed-cell structure, XLPE foam is challenging to recycle. However, waste PE foam can be repurposed for applications such as mattress filling, underlay materials, and furniture padding.
Do you offer fire retardant foam options?
Yes, we provide fire retardant foam that meets various safety standards including UL94 HF-1, FMVSS302/ISO3795, and BS476 Class 0 certifications.
