Thermal Insulation IXPE Foam Sheet for Water Absorption ≤0.1% and Thickness 0.5-12mm to 100mm
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROSH,REACH,UL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Thermal Insulation Cross Linked Closed Cell Polyolefin Foam IXPE Foam Sheet | Material: | Irradiation Crosslinked Polyethylene Foam |
|---|---|---|---|
| Density: | 25-300 Kg/m3 | Thickness: | 0.5-12mm(single Layer) To 100mm(multilayer) |
| Water Absorption: | ≤0.1% Less Than 0.1% | Hardness: | 15-65 Shore C |
| Thermal Conductivity: | 0.038~0.095w/m.k | Shock Absorption: | ≥45% |
| Flame Retardant: | B1 Grade | Application: | Foam Tape,Flooring Underlayment, Medical, Gasket,Sports&Leisure Insulation,packaging, Sports Equipment,Automotive ,construction |
| Production Process: | Compounding-Extrusion-Foaming | Operating Temperature: | -40°C To 80°C |
| Highlight: | 0.1% Water Absorption IXPE Foam Sheet,12mm IXPE Foam Sheet |
||
Product Description

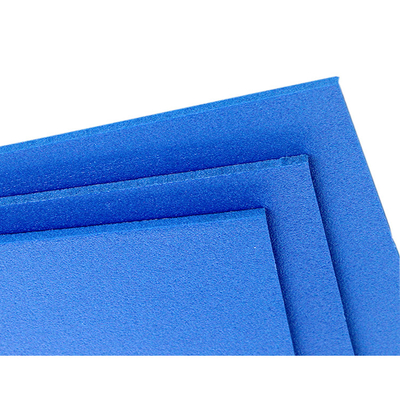

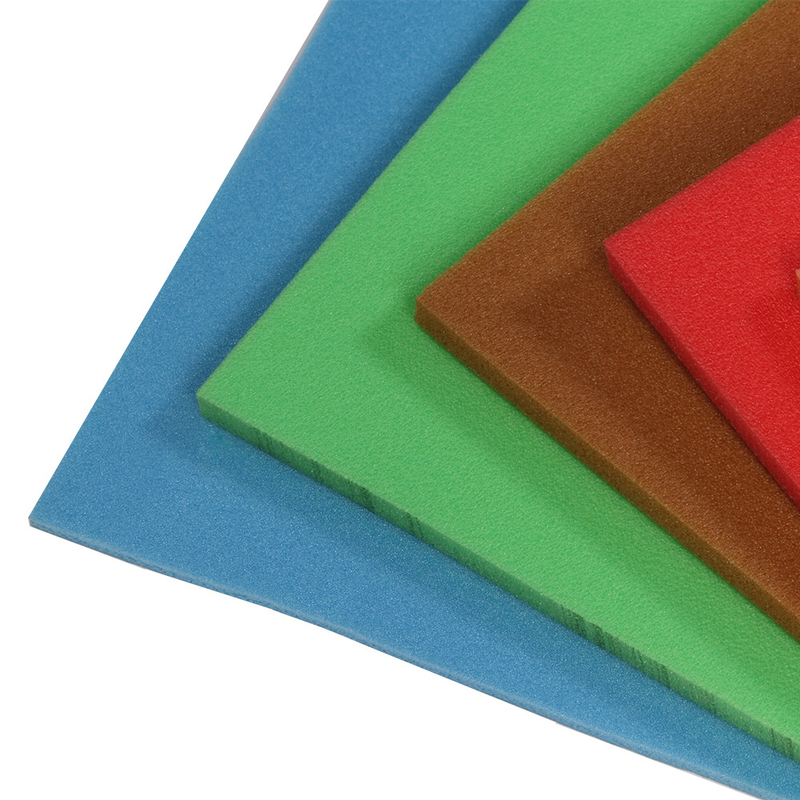

Thermal Insulation Cross Linked Closed Cell Polyolefin Foam IXPE Foam Sheet
IXPE foam sheets with thermal insulation properties find wide application. In the construction industry, they insulate walls and roofs, reducing energy consumption for heating and cooling. For automotive use, they enhance cabin comfort by blocking engine heat and outside temperature fluctuations. These sheets are also crucial in packaging, protecting temperature - sensitive goods during transit, and in refrigeration systems, maintaining low - temperature environments efficiently.
Specifications:
| IXPE Foam Physical Properties | |||||||||
| Test Item | 5 Times | 8 Times | 10 Times | 15 Times | 20 Times | 25 Times | 30 Times | 35 Times | |
| Density(kg/m³) | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | |
| Shore Hardness(°) | ＞3mm thick | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 25-30 | 18-25 | 13-18 |
| ≤3mm thick | 55-65 | 45-55 | 35-45 | 25-35 | 20-25 | 15-20 | |||
| Tensile Strength(Mpa) | TD | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.35 | ≥0.3 | ≥0.2 | ≥0.15 |
| MD | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.38 | ≥0.35 | ≥2.5 | ≥0.2 | |
| Elogation(%) | TD | ≥200 | ≥150 | ≥130 | ≥130 | ≥130 | ≥110 | ≥110 | ≥110 |
| MD | ≥220 | ≥170 | ≥150 | ≥150 | ≥150 | ≥120 | ≥120 | ≥110 | |
| Tearing Strength(KN/m) | TD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 |
| MD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | |
| Compressed Distortions(% 23℃+2℃6,22h) | ≤2 | ≤3 | ≤5 | ≤7 | ≤8 | ≤9 | ≤10 | ≤11 | |
| Dimension Change (% 70℃+2℃,22h) |
TD | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 |
| MD | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | |
| Water Absorbtion (g/cm2)23℃+2℃,24h | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 | |
| Thermal Conductivity(w/mk) | ≤0.095 | ≤0.084 | ≤0.073 | ≤0.065 | ≤0.055 | ≤0.045 | ≤0.040 | ≤0.040 | |
The difference between XPE foam and IXPE foam:
|
|
IXPE foam |
XPE foam |
|---|---|---|
|
Full name |
Physical crosslinked polyethylene foam or Irradiation crosslinked polyethylene foam |
Chemically crosslinked polyethylene foam |
|
Production |
Material PE--Extrusion--Vertical foaming--IXPE foam |
Material PE--Extrusion--Horizontal foaming--XPE foam |
|
Difference |
Compared with XPE foam, IXPE foam has more delicate cellular,more smooth and flat surface,more excellent mechanical performance |
|
|
Color |
Black ,White,Grey and customization |
|
|
Density |
25-300kg/m3 |
|
|
Thickness |
3-15mm(single layer) to 100mm(multilayer) |
0.5-12mm(single layer) to 100mm(multilayer) |
|
Material |
LDPE(Low density polyethylene) |
|
|
Length |
No limited |
|
|
Width |
300-1800mm |
|
|
Supplied form |
Foam roll, Foam sheet, Foam block, ESD PE foam, PE foam with adhesive, PE foam with aluminum foil |
|
|
Optional service |
Laminating, Cutting and Adhesive coated |
|
|
Application |
HVAC system&Airconditioning,Packaging, Building&construction,Sports&Leisure, |
Foam tape,Floor underlayment,Medical,Sports&Leisure |
Applications:
Foam Camping Mat Foam Floating Mat
3D Foam Adhesive Wallpaper ESD Foam Tray
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q3:Is polyethylene foam toxic?
Polyethylene is Safe and Non-Toxic
Blocking chemical off-gassing is not so simple.Low density, food-grade polyethylene is safe and non-toxic. It has a simple molecular structure that does not require toxic chemical additives like phthalates and other unsafe plasticizers.
