Closed Cell NBR Rubber Closed Cell Foam Oil Resistance For Gasket And Sealing
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.8-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Closed Cell NBR Rubber Foam Oil Resistance Nitrile Foam For Gasket And Sealing | Cell Structure: | Closed Cell Foam |
|---|---|---|---|
| Density: | 20-200kg/m³ | Two Kinds: | Rubber Foam Sheet , Rubber Foam Pipes |
| Feature: | Soft, Cold Resistance, Fire Retardant, Waterproof, Damping | Tearing Power: | 2.76N/cm |
| Application: | Air Conditioning,Construction,Automotive,Electronics, Packing | ||
| Highlight: | NBR closed cell foam oil resistance,nbr pvc insulation foam For gasket |
||
Product Description
Closed Cell NBR Rubber Foam Oil Resistance Nitrile Foam For Gasket And Sealing
Rubber Foam refers to rubber that has been manufactured with a foaming agent to create an air-filled matrix structure.
The main physical properties of foam rubber are generalized as being ‘Lightweight, buoyant, cushioning performance, thermal and acoustic insulation, impact damping, and cost reduction
- EPDM Rubber Foam
- NBR Rubber Foam
- CR Rubber Foam
Specification:

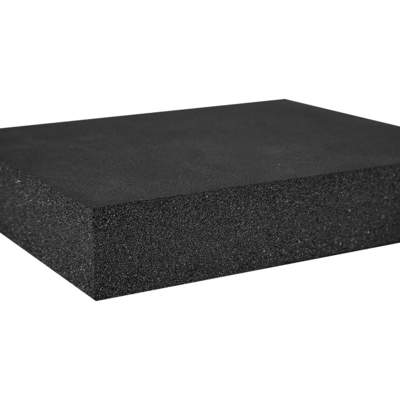

1. NBR Rubber Foam Sheet:
| Specification of NBR Sheet | ||||||
| Thickness(mm) | 6TK | 10TK | 15TK | 20TK | 25TK | 30TK |
| Width(mm) | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Length(mm) | 30 | 20 | 12 | 10 | 8 | 6 |

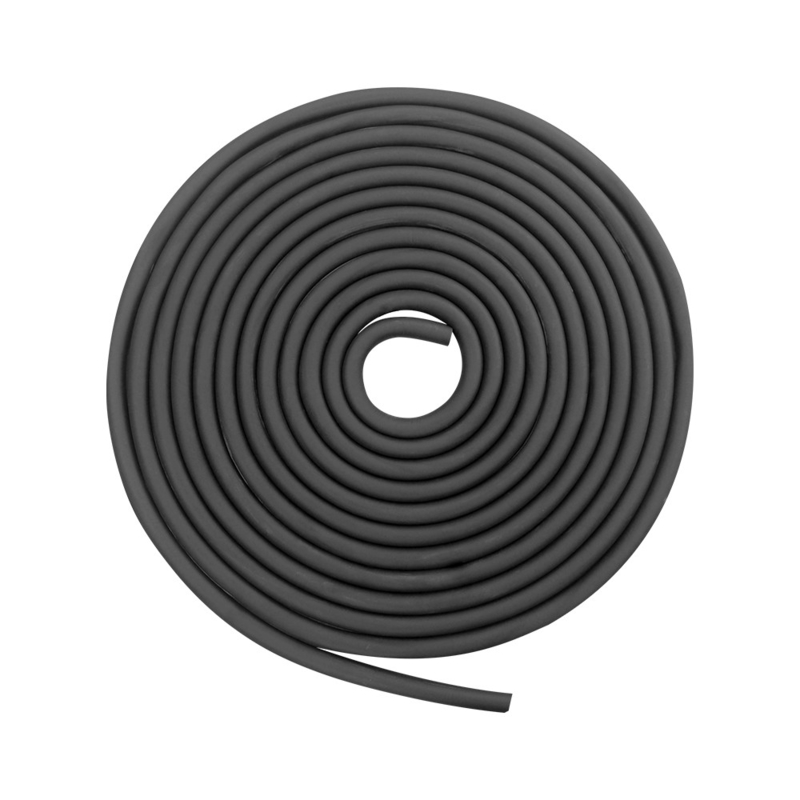

2.NBR Rubber Foam Tube:
| Thickness | inches | 1/4“ | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| mm | 6 | 9 | 13 | 15 | 20 | 25 | 30 | |
| ID | Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
|
| mm | inches | |||||||
| 6 | 1/4" | 6*6 | 6*9 | 6*13 | 6*15 | 6*20 | 6*25 | / |
| 10 | 3/8" | 10*6 | 10*9 | 10*13 | 10*15 | 10*20 | 10*25 | / |
| 13 | 1/2" | 13*6 | 13*9 | 13*13 | 13*15 | 13*20 | 13*25 | / |
| 16 | 5/8" | 16*6 | 16*9 | 16*13 | 16*15 | 16*20 | 16*25 | 16*32 |
| 19 | 3/4" | 18*6 | 19*9 | 19*13 | 19*15 | 19*20 | 19*25 | 19*32 |
| 22 | 7/8" | 22*6 | 22*9 | 22*13 | / | 22*20 | 22*25 | 22*32 |
| 25 | 1" | 25*6 | 25*9 | 25*13 | 25*15 | 25*20 | 25*25 | 25*32 |
| 28 | 1-1/8" | 28*6 | 28*9 | 28*13 | / | 28*20 | 28*25 | 28*32 |
| 32 | 1-1/4" | 32*6 | 32*9 | 32*13 | / | 32*20 | 32*25 | 32*32 |
| 35 | 1-3/8" | 35*6 | 35*9 | 35*13 | / | 35*20 | 35*25 | 35*32 |
| 38 | 1-1/2" | / | 38*9 | 38*13 | / | 38*20 | 38*25 | 38*32 |
| 42 | 1-5/8" | / | 42*9 | 42*13 | / | 42*20 | 42*25 | 42*32 |
| 45 | 1-3/4" | / | / | / | / | / | / | / |
| 48 | 1-7/8" | / | 48*9 | 48*13 | / | 48*20 | 48*25 | 48*32 |
| 50 | 2" | / | 50*9 | 50*13 | / | / | / | / |
| 54 | 2-1/8" | / | 54*9 | 54*13 | / | 54*20 | 54*25 | / |
| 57 | 2-1/4" | / | / | / | / | / | / | / |
| 60 | 2-3/8" | / | 60*9 | 60*13 | / | 60*20 | 60*25 | 60*32 |
| 64 | 2-1/2" | / | / | / | / | / | / | / |
| 67 | 2-5/8" | / | / | / | / | / | / | / |
| 70 | 2-3/4" | / | / | / | / | / | / | / |
| 73 | 2-7/8" | / | / | / | / | / | / | / |
| 76 | 3" | / | / | 76*13 | / | 76*20 | 76*25 | 76*32 |
| 80 | 3-1/8" | / | / | / | / | / | / | / |
| 89 | 3-1/2" | / | / | 89*13 | / | 89*20 | 89*25 | 89*32 |
| 102 | 4" | / | / | / | / | / | / | / |
| 108 | 4-1/4" | / | / | / | / | / | 108*25 | 108*32 |
The comparison between EPDM ,NBR and CR foam rubber:
| Comparison of rubber foam performance parameters | |||
| Performance | EPDM Rubber Foam | NBR Rubber Foam | CR Rubber Foam |
| Aging resistance | good | poor | good |
| electrical insulation | very good | poor | poor |
| preservative | good | general | good |
| Impact elasticity | good | general | -- |
| Adhesion properties | poor | good | -- |
| Oil resistance | no | very good | good |
| Wear resistance | good | good | -- |
| Heat resistance | very good | good | good |
| Cold resistance | very good | poor | poor |
| Ozone resistance | good | -- | good |
| Weather resistance | very good | general | very good |
| Flame resistance | no | -- | good |
| Acid resistance | good | good | general |
| Alkali resistance | good | good | good |
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q3:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
