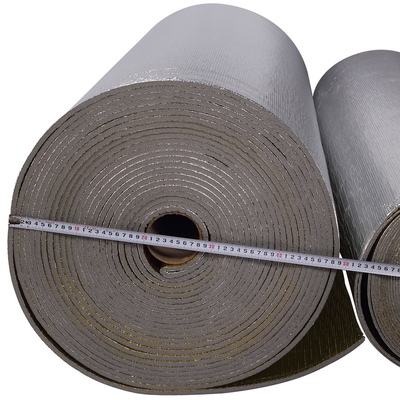

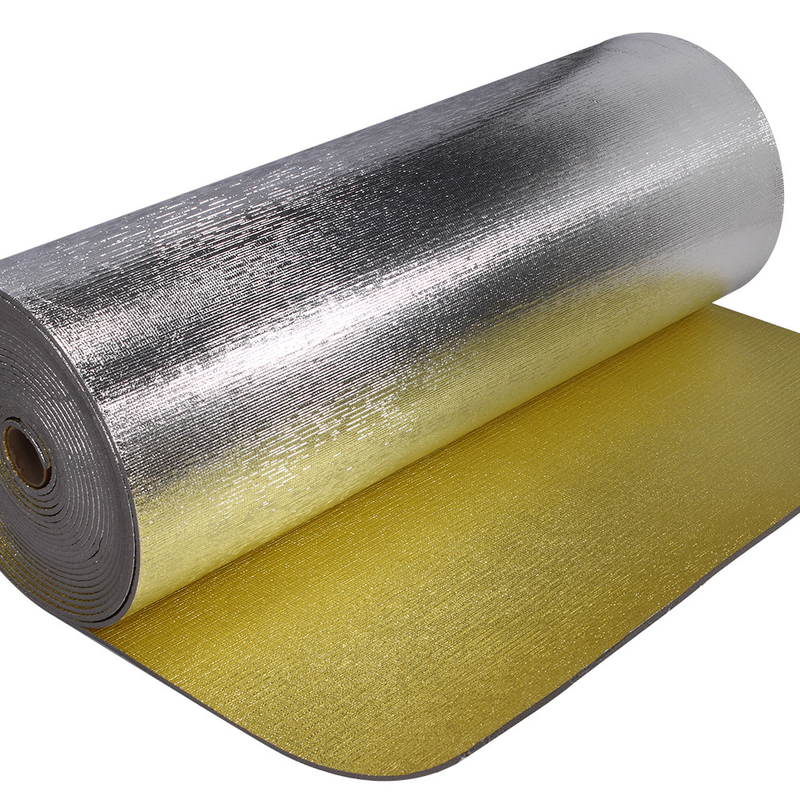

Waterproof XPE Foam Roll Doube Sided Aluminum Foil Floor Wall Insulation Material
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | BS476,UL94,RoHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Waterproof XPE Foam Doube Sided Aluminum Foil Floor Wall Insulation Material | Structure: | XPE Foam+double Sides Aluminum Foil |
|---|---|---|---|
| Density: | 28-35kg/m³ | Thickness: | 4-10mm |
| Width: | 1.2-1.5m | Noise Reduction: | 10-19dba |
| Thermal Conductivity: | 0.035W/mk | Reflectivity: | ≥95% |
| Highlight: | wall insulation xpe foam roll,1.5m width xpe closed cell foam,customized thick polyethylene xpe foam |
||
Product Description
Waterproof XPE Foam Doube Sided Aluminum Foil Floor Wall Insulation Material
It is a brand-new environmental friendly thermal insulation material and is made from Aluminum foil or Aluminized film with PE Foam . Unlike the conventional insulation material, such as glass fiber, this new insulation material does not cause any harm to human health and environment.
A wide spread of densities and colours Uniform closed-cell structure appearance High resistance to wear and tear Temperature resistance between -60°C and +90°C Easy processing and conversion Can be thermoformed, vacuum formed, milled (CNC), laminated, glued, die-cut, split, butt welded and can be combined with other foams, films, polymers and textiles by lamination .
XPE foam with double sided Aluminum Foil:
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
4 |
1200,1350,1500 |
20.22.25.40.50 |
1.Both sides in aluminum foil faced 2.R value ≥2,based on thickness 3.Emissivity≥90% or ≥95%,based on foil type. 4.Thickness,width and length can be customized by customer's requests |
|
5 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
6 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
7 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
8 |
1200,1350,1500 |
20,40,50, |
|
|
10 |
1200,1350,1500 |
20,40 |
Specification:
| Item | Test method | Index |
| Material: | closed cell polyethylene foam | |
| Density | DIN 53571/ISO standard 345 | 25kg/m³ |
| Thermal conductivity:(JIS A 1413)@20C 50-70%R.H. | At 10℃ | 0.032W/Mk |
| ISO standard 2581 | At 20℃ | 0.034K/Mk |
| At 40℃ | 0.038K/Mk | |
| Tensile strength DIN 53571/ISO standard 1926 | lengthwise | 4.1kPa/mm³ |
| Crosswise | 3.0kPa/mm³ | |
| Tensile elongation ISO Standard 1926 | lengthwise | 130% |
| Crosswise | 135% | |
| Shore hardness | 13/30 | |
| Dimensional change on heating 22hrs@70℃ | lengthwise | 2.00% |
| Crosswise | 0.50% | |
| Tear strength (DIN 53571) | lengthwise | 1.8kPa/cm |
| Crosswise | 1.1kPa/cm | |
| Compression strength: ISO standard 844 | deflection 10% | 12kpa |
| deflection 25% | 25kpa | |
| Deflection 50% | 65kpa | |
| Compression set:ISO Standard 1856C deflection 25% | 0.5h after discharge | 25% |
| 25hr after discharge | 17% | |
| Pulsating comprehensive loads (DIN 53574) | 0.23kg/cm³ | |
| Comprehensive load ctcles: | 1,000,000 | no damage, Loss in thickness 1% |
| Water vapour permeance: | 3.3* 10-4 g/M.N.s | |
| Water vapour permeability: (ASTM E96) | 8.19*10-15kg/pa.s.m(0.029mg.m/N.h) | |
| Water absorption by volume:(DIN 53428) | after 7 days | 0.70% |
| after 28days | 0.80% | |
| Working temperature | -80℃ to 100℃ | |
| Noise reduction co-efficient | (AS1045-1971) | 0.15 |
| Dynamic stiffness: | 5mm thick | 164NM/ m³ |
| 10mm thick | 74NM/ m³ |
FAQ:
Q1:What's the difference between open and closed cell foam?
Insulation foam is referred to open cell or closed cell because of the difference between the small bubbles (cells) that make up the foam.
The cells are pressed together, so air and moisture are unable to get inside the foam. Because of this,closed cell foam is much more rigid
and stable than open cell foam.
Q2:.Why choose you?
Our Foam is in Sheet, Roll, and customed shape ,
The Thickness Single layer 0.15-15mm,
Max Width 1.6meter Can Be Cut By Customers’ Requirement.
Packaging Polybag Lead Time 3 Days For Sampling, 15 Days For Production.
No MOQ For Stock, 3000 Meter For Customized Product.
Q3:What’s your warranty policy?
We provide 12 Months warranty on all of our products, which means during the warranty period,
we’ll repair the defective items or other solutions with quality problems.
