Self Adhesive HVAC Insulation Foam , XPE Foam Insulation Pipe For HVAC System Building
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | BS476,UL94,RoHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.6-1.2/m |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Embossed Polyethylene PE Foam Thermal Insulation Pipe | Structure: | PEF+EPE+XPE Foam |
|---|---|---|---|
| Density: | 20-35Kg/m3 | Resistance To Tensile Stress: | 180KPa |
| Elastic Restoring Rate: | 90% | Flammability: | Class B2 |
| Type: | Twin Tube,single Tube | Application: | Air Condition, Hot Water Pipe, Cool Water Pipe |
| Highlight: | pe composite hvac insulation foam,hvac system foam insulation pipe,oem xpe foam insulation pipe |
||
Product Description

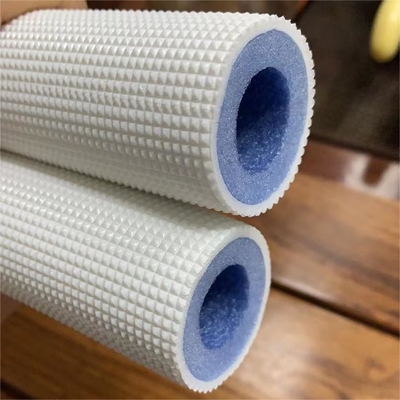

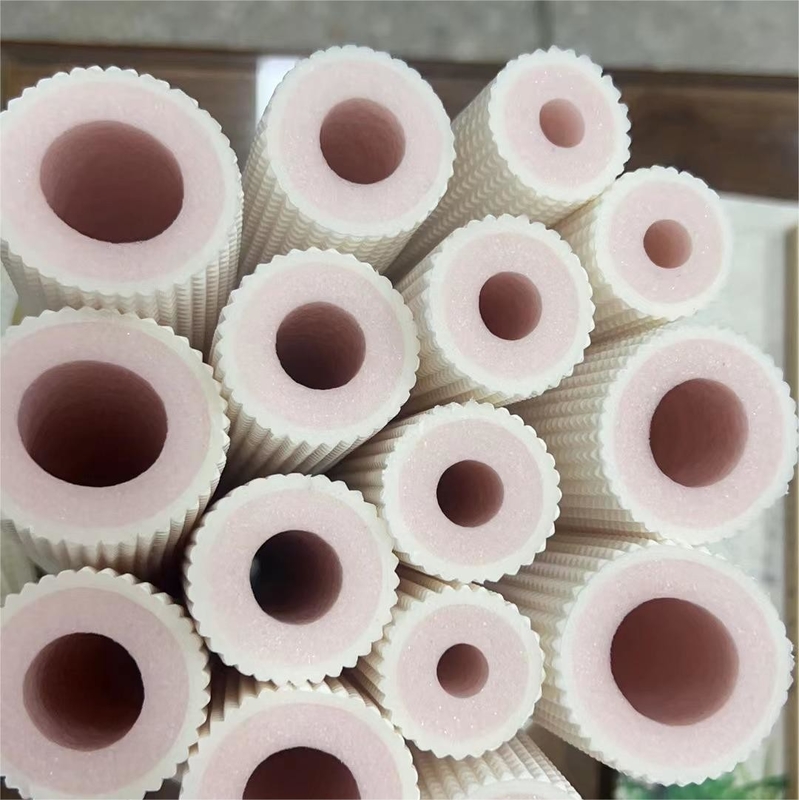

Self Adhesive XPE Polyethylene Foam Insulation Pipe For HVAC System Building
PE Composite Insulation Tubes Series Used For Air-Conditioners
Our embossed PE insulation sleeve tube has three-layer structure: Outer layer embossing process is smooth, beautiful, anti-aging,anti-ultraviolet; Inner layer is independent foam with bubble structure, unique formula, good insulation resistance, resistance tohigh temperature of 95 degree without deformation; The insulation sleeve tube is twin-tube combination and easy separation,easy installation, beautiful appearance. Installed with copper tube or Cu-Al tube it is the best choice for connecting indoor andoutdoor of air conditioners. This sleeve tube is made of polyethylene(PE) closed-cell foam, the tube has no interface cracks with small water absorption and good insulation properties, and does not corrode steel tube and copper tube. The surface of sleeve tube can be fixed with a layer of embossed Pe sheet. This sleeve tubes can be widely used for air conditioning insulation pipe and protective sleeve of metalpipes.
Dimension for twin-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ12mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ9*Φ12mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
Dimension for single-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ15mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ15*Φ22mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:.Why choose you?
Our Foam is in Sheet, Roll, and customed shape ,
The Thickness Single layer 0.15-15mm,
Max Width 1.6meter Can Be Cut By Customers’ Requirement.
Packaging Polybag Lead Time 3 Days For Sampling, 15 Days For Production.
No MOQ For Stock, 3000 Meter For Customized Product.
Q3:Is polyethylene foam toxic?
Polyethylene is Safe and Non-Toxic
Blocking chemical off-gassing is not so simple.Low density, food-grade polyethylene is safe and non-toxic. It has a simple molecular structure that does not require toxic chemical additives like phthalates and other unsafe plasticizers.
