Chemically XPE Closed Cell Foam Crosslinked Polyethylene Foam For Construction
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Chemical Crosslinked Polyethylene Foam | Material: | LDPE(Low Density Polyethylene) |
|---|---|---|---|
| Density: | 25~200kg/m^3 | Thickness: | 3~15mm(single Layer) To 100m(multilayer) |
| Width: | 300~1800mm | Color: | White,Black,Grey Or Customized |
| Cell Structure: | Closed Cell | Compression Strength: | ≥0.2MPa |
| Highlight: | crosslinked polyethylene foam For construction,custom closed cell cross linked polyethylene foam,xpe closed cell foam odm |
||
Product Description

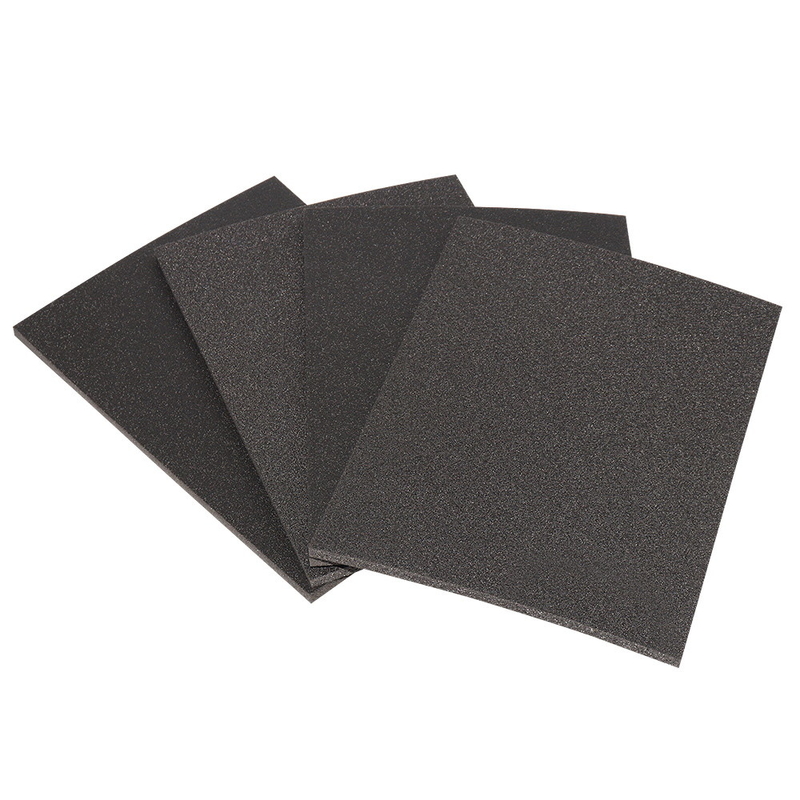

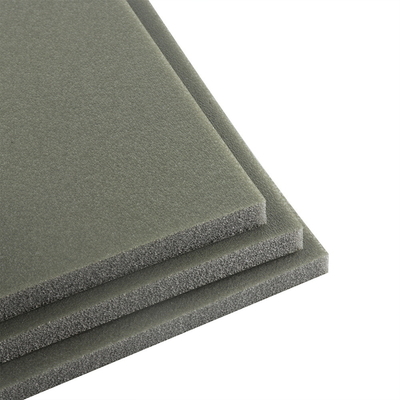

Chemically XPE Foam Closed Cell Crosslinked Polyethylene Foam For Construction
XPE / XLPE foam is chemically cross-linked PE foam. It is produced in continuous rolls to form a foam product with uniform, closed cells and smooth skins on both sides. It is lightweight, flexible and soft to touch, yet is stretchy, resistant to moisture, a wide range of chemicals and temperature extremes.
The PE polymer is foamed at high temperature after extrusion, and is crosslinked and foamed at the same time. It is the ideal foam for application where support and durability are critical.
The density range of XPE/XLPE foam is 25kg/m3~200kg/m3,and the thickness,width,length and other foam sizes and colors can be customized by customers.
Specifications:
| XLPE Foam Physical Properties | |||||||||
| Test Item | 5 Times | 8 Times | 10 Times | 15 Times | 20 Times | 25 Times | 30 Times | 35 Times | |
| Density(kg/m³) | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | |
| Shore Hardness(°) | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 25-30 | 18-25 | 13-18 | |
| Tensile Strength(Mpa) | TD | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.35 | ≥0.3 | ≥0.2 | ≥0.15 |
| MD | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.38 | ≥0.35 | ≥2.5 | ≥0.2 | |
| Elogation(%) | TD | ≥130 | ≥125 | ≥110 | ≥100 | ≥80 | ≥80 | ≥80 | ≥70 |
| MD | ≥150 | ≥125 | ≥120 | ≥110 | ≥90 | ≥90 | ≥90 | ≥80 | |
| Tearing Strength(KN/m) | TD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 |
| MD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | |
| Compressed Distortions(% 23℃+2℃6,22h) | ≤2 | ≤3 | ≤5 | ≤7 | ≤8 | ≤9 | ≤10 | ≤11 | |
| Dimension Change (% 70℃+2℃,22h) |
TD | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 |
| MD | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | |
| Water Absorbtion (g/cm2)23℃+2℃,24h | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 | |
| Thermal Conductivity(w/mk) | ≤0.092 | ≤0.082 | ≤0.072 | ≤0.062 | ≤0.053 | ≤0.047 | ≤0.041 | ≤0.038 | |
The difference between XPE foam and IXPE foam
|
IXPE foam Physical crosslinked polyethylene foam or Irradiation crosslinked polyethylene foam Material PE--Extrusion--Vertical foaming--IXPE foam |
XPE foam Chemically crosslinked polyethylene foam Material PE--Extrusion--Horizontal foaming--XPE foam |
|
|---|---|---|
|
Full name |
||
|
Production |
||
|
Difference |
Compared with XPE foam, IXPE foam has more delicate cellular,more smooth and flat surface,more excellent mechanical performance |
|
|
Color |
Black ,White,Grey and customization |
|
|
Density |
25-200kg/m3 |
|
|
Thickness |
3-15mm(single layer) to 100mm(multilayer) |
0.5-12mm(single layer) to 100mm(multilayer) |
|
Material |
LDPE(Low density polyethylene) |
|
|
Length |
No limited |
|
|
Width |
300-1800mm |
|
|
Supplied form |
Foam roll, Foam sheet, Foam block, ESD PE foam, PE foam with adhesive, PE foam with aluminum foil |
|
|
Optional service |
Laminating, Cutting and Adhesive coated |
|
|
Application |
HVAC system&Airconditioning,Packaging, Building&construction,Sports&Leisure, |
Foam tape,Floor underlayment,Sports&Leisure |
Applications:
Foam Camping Mat Foam Floating Mat
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q3:Can you do custom design?
A:Of course,Color,Logo,Size,Pattern and Materials all could be customized,
we have the professional technical staffs.
