3mm To 12mm Thick High Density XPE Foam Insulation Roll For Construction
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 3mm To 12mm Thick High Density XPE Foam Insulation Roll For Construction | Material: | Cross-linked Polyethylene Foam |
|---|---|---|---|
| Density: | 28~200kg/m³ | Thickness: | 3~15mm(single Layer) To 100m(multilayer) |
| Temperature Resistance: | -40℃ To 80℃ | Flammability: | Class B1 |
| Application: | Insulation, Packaging, Sports And Leisure, Automotive, Construction | Production Process: | Compounding-extrusion-foaming |
| Highlight: | 12mm thick high density xpe foam,xpe foam insulation for construction,xpe foam roll ROHS approved |
||
Product Description

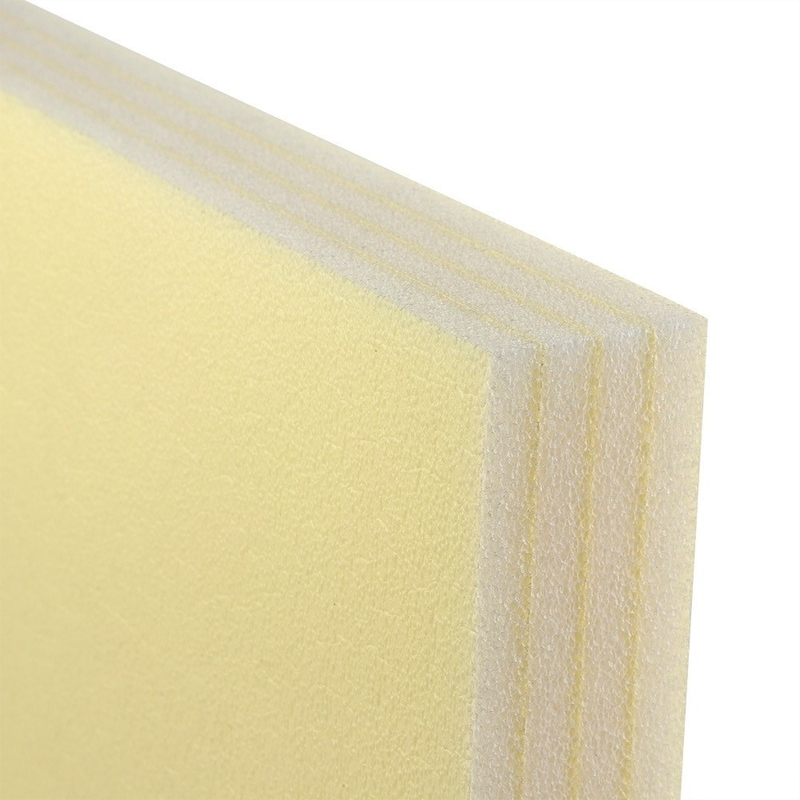

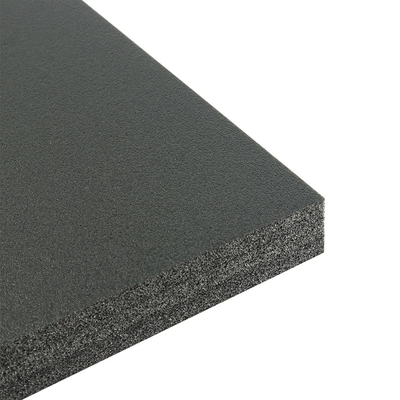

3mm To 12mm Thick High Density XPE Foam Insulation Roll For Construction
Closed-cell chemical crosslinked polyethylene foam (XPE), with low density polyethylene resin and a crosslinking agent and foaming agent through continuous foaming and high temperature, XPE foam is chemically stable, difficult to decompose, odorless and flexible.
Specifications:
| XLPE Foam Physical Properties | |||||||||
| Test Item | 5 Times | 8 Times | 10 Times | 15 Times | 20 Times | 25 Times | 30 Times | 35 Times | |
| Density(kg/m³) | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | |
| Shore Hardness(°) | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 25-30 | 18-25 | 13-18 | |
| Tensile Strength(Mpa) | TD | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.35 | ≥0.3 | ≥0.2 | ≥0.15 |
| MD | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.38 | ≥0.35 | ≥2.5 | ≥0.2 | |
| Elogation(%) | TD | ≥130 | ≥125 | ≥110 | ≥100 | ≥80 | ≥80 | ≥80 | ≥70 |
| MD | ≥150 | ≥125 | ≥120 | ≥110 | ≥90 | ≥90 | ≥90 | ≥80 | |
| Tearing Strength(KN/m) | TD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 |
| MD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | |
| Compressed Distortions(% 23℃+2℃6,22h) | ≤2 | ≤3 | ≤5 | ≤7 | ≤8 | ≤9 | ≤10 | ≤11 | |
| Dimension Change (% 70℃+2℃,22h) |
TD | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 |
| MD | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | |
| Water Absorbtion (g/cm2)23℃+2℃,24h | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 | |
| Thermal Conductivity(w/mk) | ≤0.092 | ≤0.082 | ≤0.072 | ≤0.062 | ≤0.053 | ≤0.047 | ≤0.041 | ≤0.038 | |
The difference between XPE foam and IXPE foam
|
IXPE foam Physical crosslinked polyethylene foam or Irradiation crosslinked polyethylene foam Material PE--Extrusion--Vertical foaming--IXPE foam |
XPE foam Chemically crosslinked polyethylene foam Material PE--Extrusion--Horizontal foaming--XPE foam |
|
|---|---|---|
|
Full name |
||
|
Production |
||
|
Difference |
Compared with XPE foam, IXPE foam has more delicate cellular,more smooth and flat surface,more excellent mechanical performance |
|
|
Color |
Black ,White,Grey and customization |
|
|
Density |
25-200kg/m3 |
|
|
Thickness |
3-15mm(single layer) to 100mm(multilayer) |
0.5-12mm(single layer) to 100mm(multilayer) |
|
Material |
LDPE(Low density polyethylene) |
|
|
Length |
No limited |
|
|
Width |
300-1800mm |
|
|
Supplied form |
Foam roll, Foam sheet, Foam block, ESD PE foam, PE foam with adhesive, PE foam with aluminum foil |
|
|
Optional service |
Laminating, Cutting and Adhesive coated |
|
|
Application |
HVAC system&Airconditioning,Packaging, Building&construction,Sports&Leisure, |
Foam tape,Floor underlayment,Sports&Leisure |
Applications:
Pool Cover HVAC Insulation foam
FAQ:
Q1:What's the difference between open and closed cell foam?
Insulation foam is referred to open cell or closed cell because of the difference between the small bubbles (cells) that make up the foam. The cells are pressed together, so air and moisture are unable to get inside the foam. Because of this,closed cell foam is much more rigid and stable than open cell foam.
Q2:How about the delivery cost and tax cost?
Delivery cost is depend on the way, destination and weight.
And tax is depend on customer’s local customs.
Q3:What’s your warranty policy?
We provide 12 Months warranty on all of our products, which means during the warranty period,
we’ll repair the defective items or other solutions with quality problems.
Q4:What is the thickness tolerance?
It depends on the density and thickness.
Q5:Do you have fire retardant foam?
Yes, we have. UL94 HF-1; FMVSS302/ISO3795; BS476 Class 0
