Self Adhesive XPE HVAC Insulation Foam Laminated Silver Aluminum Foil For Ductwork
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | BS476,UL94,RoHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Features: | Anti-fire | Product Name: | Self Adhesive XPE Foam Laminated Silver Aluminum Foil For Havc Ductwork |
|---|---|---|---|
| Structure: | Aluminum Foil/XPE Foam/ Release Paper | Density: | 28-35kg/m³ |
| Thickness: | 12/13/15/19/25/30mm | Width: | 1000-1500mm |
| Installation Method: | Adhesive Or Mechanical Fasteners | Type: | Insulation Material |
| Highlight: | anti fire xpe hvac insulation foam,1000mm foam board insulation for ductwork,15mm thick hvac duct insulation foam |
||
Product Description

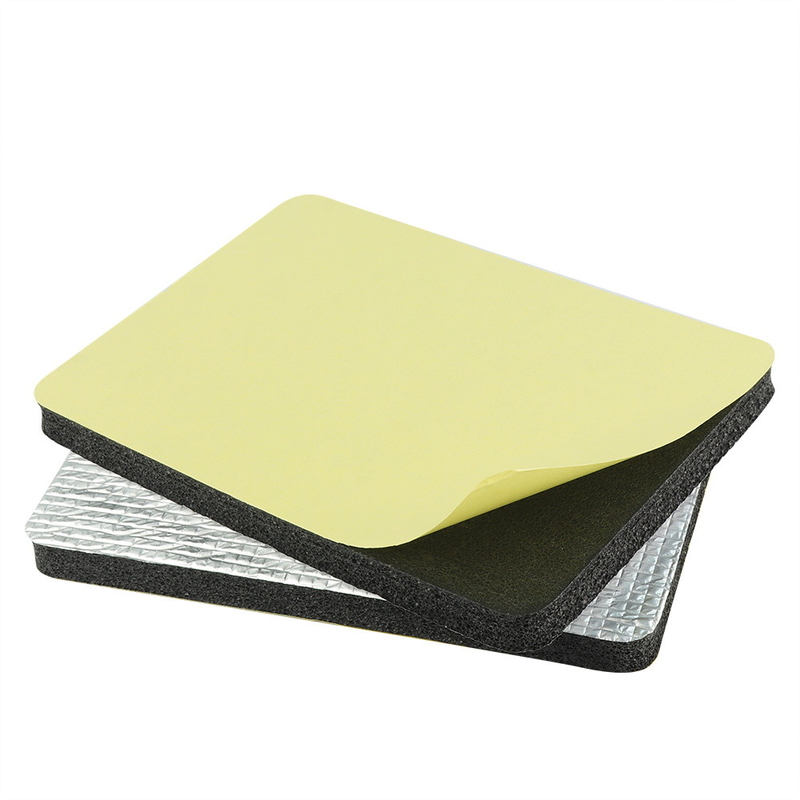

Self Adhesive XPE Foam Laminated Silver Aluminum Foil For Havc Ductwork
The foam foil insulation is made of Aluminum foil and combined with XPE. It is environmentally friendly, light, easy to install and widely used. It is not only used as a necessary thermal insulation material but also has a perfect application in the fields of luggage, automobile, pipeline, refrigeration, and even aerospace.
XPE foam coated adhesive and aluminum foil:
|

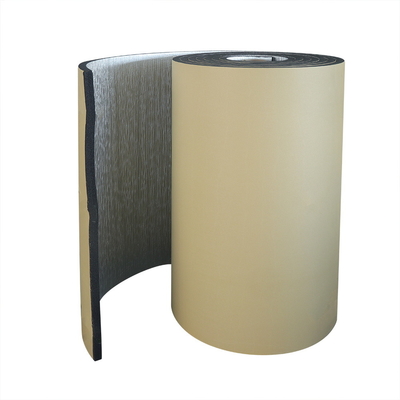

Rolls-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
5 |
1000,1200,1500 |
50 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
10 |
1000,1200,1500 |
25 |
|
|
12 |
1000,1200,1500 |
25 |
|
|
13 |
1000,1200,1500 |
25 |
|
|
15 |
1000,1200,1500 |
25 |
|
|
19 |
1000,1200,1500 |
25 |
|
|
20 |
1000,1200,1500 |
15 |
|
|
25 |
1000,1200,1500 |
15 |
|
|
Sheet-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
10 |
1000,1200,1500 |
2 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
12 |
1000,1200,1500 |
2 |
|
|
13 |
1000,1200,1500 |
2 |
|
|
15 |
1000,1200,1500 |
2 |
|
|
19 |
1000,1200,1500 |
2 |
|
|
20 |
1000,1200,1500 |
2 |
|
|
25 |
1000,1200,1500 |
2 |
|
|
30 |
1000,1200,1500 |
2 |
|
XPE foam with double sided Aluminum Foil:
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
4 |
1200,1350,1500 |
20.22.25.40.50 |
1.Both sides in aluminum foil faced 2.R value ≥2,based on thickness 3.Emissivity≥90% or ≥95%,based on foil type. 4.Thickness,width and length can be customized by customer's requests |
|
5 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
6 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
7 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
8 |
1200,1350,1500 |
20,40,50, |
|
|
10 |
1200,1350,1500 |
20,40 |
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:What applications could the XPE and IXPE foam applied for?
A lot. Automotive NVH; PE foam tape; Building insulation; HVAC insulation; Electronic; Sports protection; Flooring underlay;etc.
Q3:Do you have fire retardant foam?
Yes, we have. UL94 HF-1; FMVSS302/ISO3795; BS476 Class 0
Q4:What is the thickness tolerance?
It depends on the density and thickness.
