Close Cell XPE XLPE Foam AC Pipe Insulation Foam For Refrigeration Systems
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | BS476,UL94,RoHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.6-1.2/m |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Air Conditioning Thermal Insulation Tube | Structure: | PEF+EPE+XPE Foam |
|---|---|---|---|
| Density: | 20-35Kg/m3 | Color: | White,red ,blue Or Customized |
| Thermal Conductivity: | 0.027-0.030W/m.K | Flammability: | Class B2 |
| Working Temperature: | -50-+100ºC | Flame Resistance Oxygen Index: | 18-25.5 |
| Highlight: | oem ac pipe insulation foam,refrigeration system xlpe foam insulation,customized color xpe closed cell foam |
||
Product Description

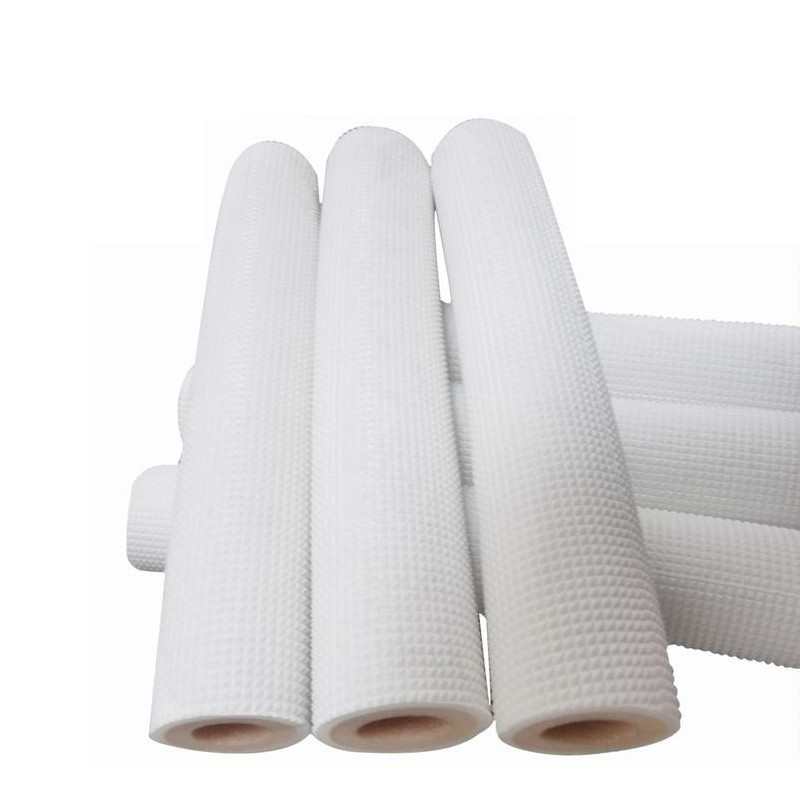

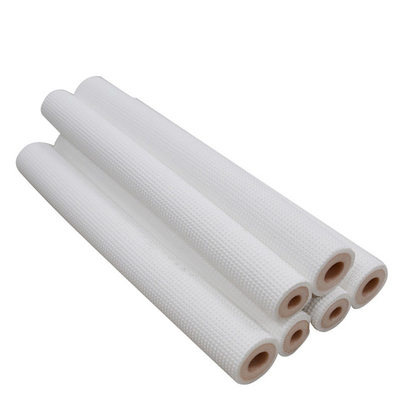

Close Cell XPE XLPE Foam AC Pipe Insulation Foam For Refrigeration Systems
Polyethylene PE Foam Thermal Insulation Pipe
his sleeve tube is made of polyethylene(PE) closed-cell foam, the tube has no interface cracks with small water absorption and good insulation properties, and does not corrode steel tube and copper tube. The surface of sleeve tube can be fixed with a layer of embossed Pe sheet. This sleeve tubes can be widely used for air conditioning insulation pipe and protective sleeve of metal pipes
Dimension for twin-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ12mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ9*Φ12mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
Dimension for single-tube:
| Wall Thickness(mm) | |||||||
| No. | Type of Air-conditioers | ID of twin-tubes | 8mm | 9mm | 10mm | 12mm | 15mm |
| 1 | 1 P | Φ9*Φ12mm | 1 P*8mm | 1 P*9mm | 1 P*10mm | 1 P*12mm | 1 P*15mm |
| 2 | 1.5 P | Φ9*Φ15mm | 1.5P*8 | 1.5P*9 | 1.5P*10 | 1.5P*12 | 1.5P*15 |
| 3 | 2.5 P | Φ9*Φ19mm | 2.5P*8 | 2.5P*9 | 2.5P*10 | 2.5P*12 | 2.5P*15 |
| 4 | 3 P | Φ12*Φ19mm | 3 P*8 | 3 P*9 | 3 P*10 | 3 P*12 | 3 P*15 |
| 5 | 4 P | Φ12*Φ22mm | 4 P*8 | 4 P*9 | 4 P*10 | 4 P*12 | 4 P*15 |
| 6 | 5 P | Φ15*Φ22mm | 5 P*8 | 5 P*9 | 5 P*10 | 5 P*12 | 5 P*15 |
FAQ:
Q1:What's the difference between open and closed cell foam?
Insulation foam is referred to open cell or closed cell because of the difference between the small bubbles (cells) that make up the foam.
The cells are pressed together, so air and moisture are unable to get inside the foam. Because of this,closed cell foam is much more rigid
and stable than open cell foam.
Q2:.Why choose you?
Our Foam is in Sheet, Roll, and customed shape ,
The Thickness Single layer 0.15-15mm,
Max Width 1.6meter Can Be Cut By Customers’ Requirement.
Packaging Polybag Lead Time 3 Days For Sampling, 15 Days For Production.
No MOQ For Stock, 3000 Meter For Customized Product.
Q3:What’s your warranty policy?
We provide 12 Months warranty on all of our products, which means during the warranty period,
we’ll repair the defective items or other solutions with quality problems.
