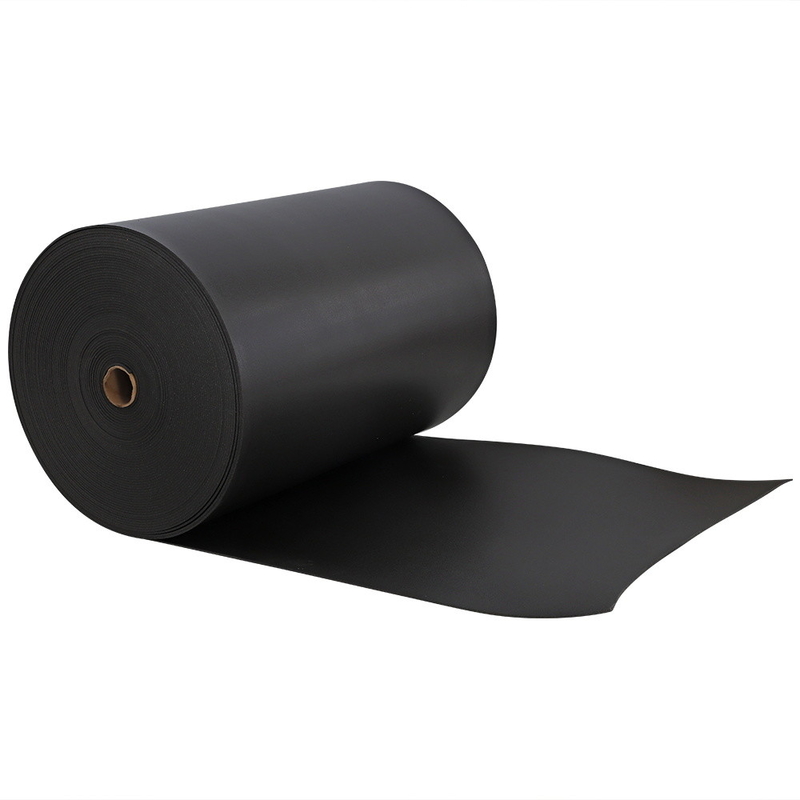

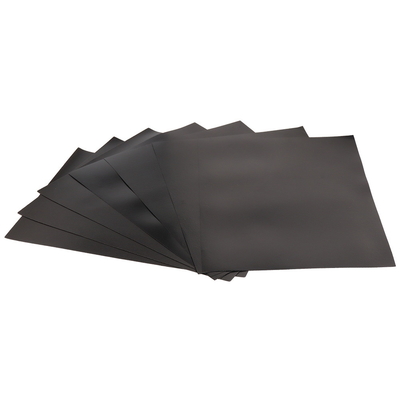

Shock Absorption ESD Foam Inserts Anti Static Packaging Foam In Roll And Sheet
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Shock Absorption ESD Foam Inserts Anti-Static Packaging Foam In Roll And Sheet | Material: | PE Foam,EVA Foam,EPE Foam,PU Foam |
|---|---|---|---|
| Thickness: | 1mm-100mm | ESD Tray: | Foam Tray,Blister Tray,Corrugated Tray |
| Cell Structure: | Close Cell | Type: | Anti-static Foam,ESD Conductive Foam,ESD Tray Products |
| Volume Resistance: | 10^3 - 10^11 Ω.cm | Feature: | Shock Proof,Eco-friendly,Anti-static |
| Highlight: | closed cell anti static packaging foam,electronic packaging esd foam inserts,non crosslinked anti static packing foam |
||
Product Description
Shock Absorption ESD Foam Inserts Anti-Static Packaging Foam In Roll And Sheet
Anti-static EPE foam is expandable Color polyethylene foam, is a kind of non-cross-linked closed cell foam. It has anti-static properties by adding anti-static liquid, and the regular color is pink and red. The regular size is 80*610*2800mm, the surface antistatic value is 10^8-10^11.
Specification:
Types of ESD foam:
|
Anti-Static foam types |
Ordinal ESD Foam Features |
Foam Shape |
ESD Type |
Odor |
|
ESD PE Foam
|
Single Thickness: 0.5-7mm |
Roll / Sheet / Tray |
Permanently |
No Odor |
|
Laminated :100mm |
|
|
|
|
|
Color: Black |
|
|
|
|
|
ESD EVA Foam
|
Single Thickness: 0.5-70mm |
Sheet / Block/ Tray |
Permanently |
—– |
|
Laminated :100mm |
|
|
|
|
|
Color: Black/Blue/Red |
|
|
|
|
|
ESD EPE Foam
|
Single Thickness: 3-50mm |
Sheet / Tray/ Insert |
Around 6 Months |
No Odor |
|
Laminated :100mm |
|
|
|
|
|
Color: Black,Pink, Red |
|
|
|
|
|
ESD PU foam
|
Single Thickness: 3-40mm |
Sheet/ Block/ Tray |
Around 6 Months |
——– |
|
Laminated :100mm |
|
|
|
|
|
Color: Pink , Black |
|
|
|
Types of ESD Tray:
|
Item |
Foam Tray |
Blister Tray |
PP Injection molded Tray |
Corrugated Tray |
Foam Injection Molded Tray |
|
Material |
PU/PE/EVA/EPE |
PP/PS/PET |
PP |
PP |
PP |
|
Color |
Black/Pink/Red |
Black/Transparent |
Black |
Black |
Black |
|
Conductive Value |
10^3-10^5 |
10^3-10^5 |
10^4-10^9 |
10^3-10^5 |
10^5-10^8 |
|
ESD Value |
10^6-10^9 |
10^6-10^9 |
10^6-10^9 |
||
|
Customize |
Yes |
Yes |
Yes |
Yes |
Yes |
|
low cost |
Medium Cost |
High cost |
Low cost |
High cost |
FAQ:
Q1:How does the foam to be anti-static?
1)Adding antistatic agent
2)External coating anti-static liquid
The above two ways are most commonly used in the foam factory to make the foam to be anti-static, through these two methods can produce an effective anti-static packaging products for the electronics field.
Q2:Why do electronics need ESD packaging?
Electrostatic discharge (ESD) refers to the flow of electricity between two electrically charged objects. When static electricity builds up, it can damage sensitive electronic devices.
Q3:What ESD products could we provide to you?
we supply a wide range of ESD (Electrostatic Discharge) products to cater to various needs. Our offerings include ESD foam, ESD trays, ESD cleaning room products, and more. The foam options available encompass PE foam, EVA foam, EPE foam, PU sponge, and other materials. In addition, we offer anti-static trays that are based on different materials such as foam, hollow board, Danpla sheet, conductive carbon, PP board, and various clean room products.
