Anti Static ESD Safe Foam Roll PU EVA IXPE Conductive Material For Shipping Tray
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Anti Static ESD Foam Roll PU EVA IXPE Conductive Material For Shipping Tray | Key Words: | Electrostatic Discharge Foam |
|---|---|---|---|
| Material: | PE Foam,EVA Foam,EPE Foam,PU Foam | Feature: | Conductive,Anti-static |
| Cell Structure: | Close Cell | Elongation: | 100-210% |
| Surface Resistivity: | 10^3 - 10^11 Ω | Service: | OEM ODM |
| Highlight: | ODM esd safe foam packaging,close cell conductive anti static foam,tray shipping esd conductive foam |
||
Product Description

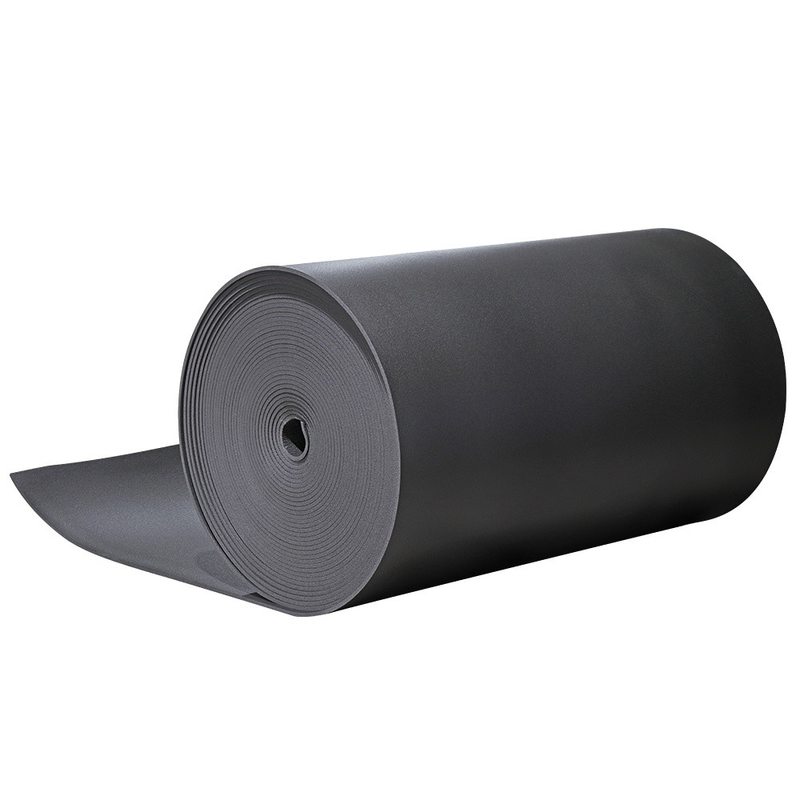

Anti Static ESD Foam Roll PU EVA IXPE Conductive Material For Shipping Tray
ESD EVA Foam is made of PE, ethylene vinyl acetate, and additives through fixed molding, creating a permanent anti-static foam. It comes in rolls, sheets, trays, lining, tape, and shock-absorbing sheets. Its closed-cell structure differs from PE foam with higher density (about 85kg/m3) and various colors like black, blue, red, and white. The range expands with increasing customer demand.
ESD EVA Foam Features:
Main material: EVA foam
Size: customized
Surface resistance:10^3-9
Color: Black / Blue / Red
Cell structure: closed cell.
Anti static time: Permanently
ESD EVA Foam Advantages:
Single layer thick up to 70mm, easy to process molding.
Specification:
Types of ESD foam:
|
Anti-Static foam types |
Ordinal ESD Foam Features |
Foam Shape |
ESD Type |
Odor |
|
ESD PE Foam
|
Single Thickness: 0.5-7mm |
Roll / Sheet / Tray |
Permanently |
No Odor |
|
Laminated :100mm |
|
|
|
|
|
Color: Black |
|
|
|
|
|
ESD EVA Foam
|
Single Thickness: 0.5-70mm |
Sheet / Block/ Tray |
Permanently |
—– |
|
Laminated :100mm |
|
|
|
|
|
Color: Black/Blue/Red |
|
|
|
|
|
ESD EPE Foam
|
Single Thickness: 3-50mm |
Sheet / Tray/ Insert |
Around 6 Months |
No Odor |
|
Laminated :100mm |
|
|
|
|
|
Color: Black,Pink, Red |
|
|
|
|
|
ESD PU foam
|
Single Thickness: 3-40mm |
Sheet/ Block/ Tray |
Around 6 Months |
——– |
|
Laminated :100mm |
|
|
|
|
|
Color: Pink , Black |
|
|
|

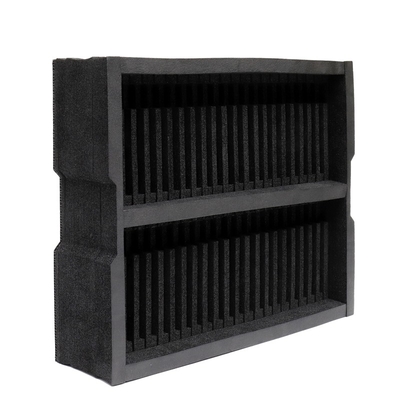

Types of ESD Tray:
|
Item |
Foam Tray |
Blister Tray |
PP Injection molded Tray |
Corrugated Tray |
Foam Injection Molded Tray |
|
Material |
PU/PE/EVA/EPE |
PP/PS/PET |
PP |
PP |
PP |
|
Color |
Black/Pink/Red |
Black/Transparent |
Black |
Black |
Black |
|
Conductive Value |
10^3-10^5 |
10^3-10^5 |
10^4-10^9 |
10^3-10^5 |
10^5-10^8 |
|
ESD Value |
10^6-10^9 |
10^6-10^9 |
10^6-10^9 |
||
|
Customize |
Yes |
Yes |
Yes |
Yes |
Yes |
|
low cost |
Medium Cost |
High cost |
Low cost |
High cost |
FAQ:
Q1:How does the foam to be anti-static?
1)Adding antistatic agent
2)External coating anti-static liquid
The above two ways are most commonly used in the foam factory to make the foam to be anti-static, through these two methods can produce an effective anti-static packaging products for the electronics field.
Q2:Why do electronics need ESD packaging?
Electrostatic discharge (ESD) refers to the flow of electricity between two electrically charged objects. When static electricity builds up, it can damage sensitive electronic devices.
Q3:How about the delivery cost and tax cost?
Delivery cost is depend on the way, destination and weight.
And tax is depend on customer’s local customs.
