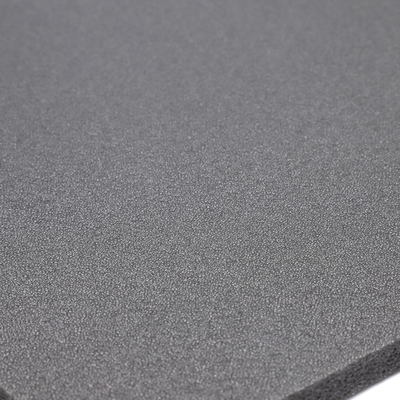

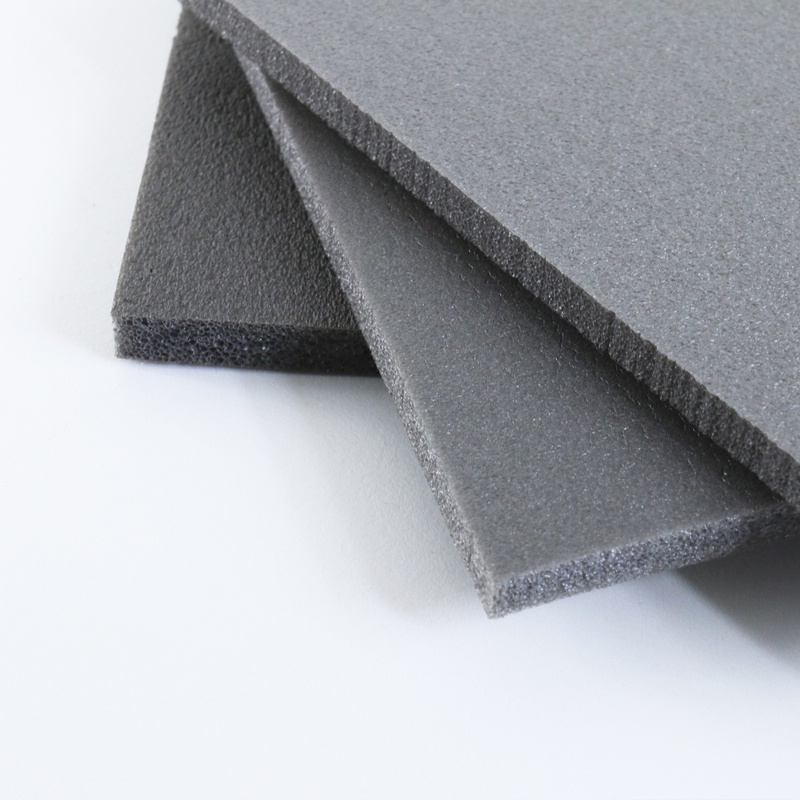

CNC Cut Esd Foam Packaging , PE Static Dissipative Foam Tray
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | CNC Cut Anti Static Dissipative Foam PE Packaing Foam Inserts Foam Tray | Key Words: | EVA Conductive Foam, IXPE ESD Foam, |
|---|---|---|---|
| Feature: | Conductive,Anti-static | Thickness: | 1mm-100mm |
| Cell Structure: | Close Cell | Density: | 20-200kg/m³ |
| Volume Resistance: | 10^3 - 10^11 Ω.cm | Application: | Electronic Packaging, Shipping, Storage |
| Highlight: | anti static ESD foam trays,oem static dissipative foam tray,customized thick ESD foam trays |
||
Product Description
CNC Cut Anti Static Dissipative Foam PE Packaing Foam Inserts Foam Tray
ESD foam trays are carefully produced from top-quality anti static/ conductive foam materials such as PE foam, EVA foam, EPE foam, and PU foam. These trays are specifically designed to provide exceptional protection and packaging for sensitive electronic components during turnover, storage, and shipping processes. With their ESD properties, our foam trays ensure that your electronics are shielded from potential damage caused by static electricity, offering a reliable and safe solution for your packaging needs.
Specification:
Types of ESD foam:
|
Anti-Static foam types |
Ordinal ESD Foam Features |
Foam Shape |
ESD Type |
Odor |
|
ESD PE Foam
|
Single Thickness: 0.5-7mm |
Roll / Sheet / Tray |
Permanently |
No Odor |
|
Laminated :100mm |
|
|
|
|
|
Color: Black |
|
|
|
|
|
ESD EVA Foam
|
Single Thickness: 0.5-70mm |
Sheet / Block/ Tray |
Permanently |
—– |
|
Laminated :100mm |
|
|
|
|
|
Color: Black/Blue/Red |
|
|
|
|
|
ESD EPE Foam
|
Single Thickness: 3-50mm |
Sheet / Tray/ Insert |
Around 6 Months |
No Odor |
|
Laminated :100mm |
|
|
|
|
|
Color: Black,Pink, Red |
|
|
|
|
|
ESD PU foam
|
Single Thickness: 3-40mm |
Sheet/ Block/ Tray |
Around 6 Months |
——– |
|
Laminated :100mm |
|
|
|
|
|
Color: Pink , Black |
|
|
|
Types of ESD Tray:
|
Item |
Foam Tray |
Blister Tray |
PP Injection molded Tray |
Corrugated Tray |
Foam Injection Molded Tray |
|
Material |
PU/PE/EVA/EPE |
PP/PS/PET |
PP |
PP |
PP |
|
Color |
Black/Pink/Red |
Black/Transparent |
Black |
Black |
Black |
|
Conductive Value |
10^3-10^5 |
10^3-10^5 |
10^4-10^9 |
10^3-10^5 |
10^5-10^8 |
|
ESD Value |
10^6-10^9 |
10^6-10^9 |
10^6-10^9 |
||
|
Customize |
Yes |
Yes |
Yes |
Yes |
Yes |
|
low cost |
Medium Cost |
High cost |
Low cost |
High cost |
FAQ:
Q1:How does the foam to be anti-static?
1)Adding antistatic agent
2)External coating anti-static liquid
The above two ways are most commonly used in the foam factory to make the foam to be anti-static, through these two methods can produce an effective anti-static packaging products for the electronics field.
Q2:Why do electronics need ESD packaging?
Electrostatic discharge (ESD) refers to the flow of electricity between two electrically charged objects. When static electricity builds up, it can damage sensitive electronic devices.
Q3:What does the mean of anti-static foam?
The anti-static foam can help to dissipate the electrostatic charges that can damage delicate electronic components. They are made from a combination of polyethylene and polyurethane. This Anti Static Foam is made by adding special chemicals, which are then combined with an antistatic agent. The manufacturing process for this type of foam involves using pink as a color to differentiate it from the others. The industry uses this color to help identify this type of foam as an ESD or antistatic material. The low molecular weight of the fatty acids used in the process is typically derived from amines or amides. The special chemicals used in the manufacturing process are then combined with an anti-static agent. This type of foam is usually made from pink as a color to differentiate it from the others. It can also help protect delicate electronic components from electrostatic discharge.
