1mx2m EPDM Foam Sheet Close Cell Insulation Rubber Material For Air Conditioning
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.8-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 1m*2m EPDM Foam Sheet Close Cell Insulation Rubber Material For Air Conditioning | Material: | EPDM Close Cell Sponge Rubber |
|---|---|---|---|
| Cell Structure: | Close Cell EPDM Foam Rubber | Density (Closed Cell): | 110-150kg/m³ |
| Max Size: | 1000*2000*50mm | Feature: | High Elastic Buffer, Temperature Resistance |
| Application: | Package Material For Transportation, Sealing Strip For Car's Window | Surface: | One Side Or Both Side Adhesive Or Plain |
| Highlight: | epdm foam sheet for air conditioning,1mx2m epdm closed cell foam,oem epdm closed cell foam |
||
Product Description

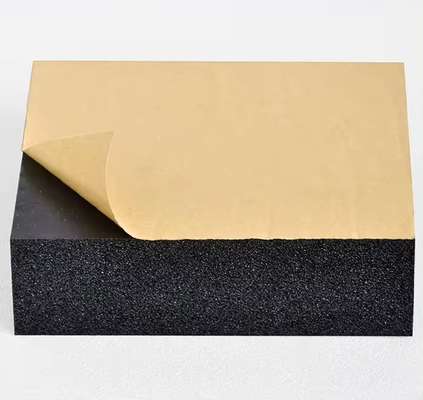

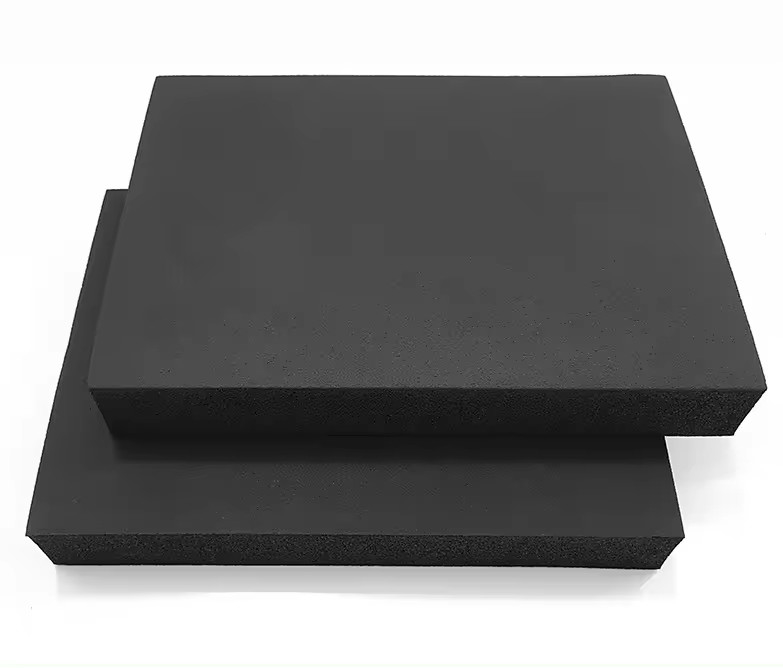

1m*2m EPDM Foam Sheet Close Cell Insulation Rubber Material For Air Conditioning
EPDM Foam Rubber (Ethylene Propylene Diene Monomer) is a closed cell mid-density foam rubber material which are versatile in a wide range of industrial and commercial applications. It outperforms in many aspects than other foam rubber material including aging properties, durability, compressibility, thermal durability and excellent slip resistance. It is also excellent at shock & sound insulation, moisture & sunlight resistance and wide operative temperature. Our EPDM sponge is available in various thickness from 0.5 mm to 40 mm. It can be easily processed by our state of machinery into sheets, rolls, strips, tape with or without adhesive and blocks. With impressive resistance to light and ozone and functions well in a wide temperature range, our EPDM foam is perfect for outdoor uses. It is used in various applications including construction, HVAC, transportation, automotive and general appliances and machinery in form of EPDM foam seals, gaskets, strips, tapes or sheets with or without aggressive self-adhesive backings.
Specification:
EPDM(Closed cell)Physical Properties:
| Name&Model | Color | Density (kg/m³) |
Hardness (Shore C°) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-9016 | Black | 190±15 | 25°±5 | ≥500 | ≥130 | ≤40 | ≥3.0 | 950*1900*40 | |
| EPDM-9015 | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤45 | ≥2.0 | 1000*2000*50 | |
| EPDM-9010 | Black | 130±15 | 10°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-9008 | Black | 110±15 | 8°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-WS | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤40 | ≥2.0 | 1000*2000*50 | Sulfur free |
| EPDM-GBZ | Black | 250-500 | 30°-50° | ≥800 | ≥130 | ≤20 | ≥5.0 | 900*1800*35 | High density |
| EPDM-GYD | Black | 600-700 | 50°-75° | ≥1200 | ≥90 | ≤10 | ≥8.0 | 600*1200*30 | High hardness |
| EPDM-SMP | Black | 300±25 | 18°±5 | ≥500 | ≥150 | ≤25 | ≥2.0 | 400*500*568 | Double sided crust |
EPDM (Open cell) Physical Property:
| Name&Model | Color | Density (kg/m³) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-10 | Black/Red/White | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | |
| EPDM-10Z | Black/Red | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | Fire retardant |
| EPDM-20 | Black | 85±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*30 |
The difference between EPDM ,NBR and CR rubber foam:
| Comparison of rubber foam performance parameters | |||
|
Performance |
EPDM Rubber Foam |
NBR Rubber Foam |
CR Rubber Foam |
|
Aging resistance |
good |
poor |
good |
|
electrical insulation |
very good |
poor |
poor |
|
preservative |
good |
general |
good |
|
Impact elasticity |
good |
general |
-- |
|
Adhesion properties |
poor |
good |
-- |
|
Oil resistance |
no |
very good |
good |
|
Wear resistance |
good |
good |
-- |
|
Heat resistance |
very good |
good |
good |
|
Cold resistance |
very good |
poor |
poor |
|
Ozone resistance |
good |
-- |
good |
|
Weather resistance |
very good |
general |
very good |
|
Flame resistance |
no |
-- |
good |
|
Acid resistance |
good |
good |
general |
|
Alkali resistance |
good |
good |
good |
FAQ:
Q1:How to get samples ?
Send inquiry to cissy@eco-polyfoam.com, with your details of the foams need, we will check reply in 24 hour.
Q2:What’s your MOQ of Foam Products ?
We have regular stocks of normal products in our product list.
But we have MOQ request of customized foam products, like Special spec.
( length, width, thickness) of rough buns(untrimmed sides and with skins),
Customized colors, Density and Hardness.
Q3:What’s the max thickness you can produce ?
We can laminated different thickness layers into one sheet, our max thickness of lamination is 200mm
