Low Thermal Conductivity Open Cell EPDM Foam Rubber Material For Building
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.8-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Low Thermal Conductivity Open Cell EPDM Foam Rubber Material For Building | Material: | Open Cell EPDM Insulation Foam Sheets |
|---|---|---|---|
| Cell Structure: | Open Cell EPDM Foam | Max Size: | 1000*2000*50mm |
| Density(Open Cell): | 95-100kg/m³ | Feature: | Light, Comfortable ,good Elasticity ,Heat Insulation |
| Application: | Building,Photovoltaic Panel | Surface: | One Side Or Both Side Adhesive Or Plain |
| Highlight: | low thermal conductivity open cell epdm foam,low thermal conductivity epdm foam rubber |
||
Product Description

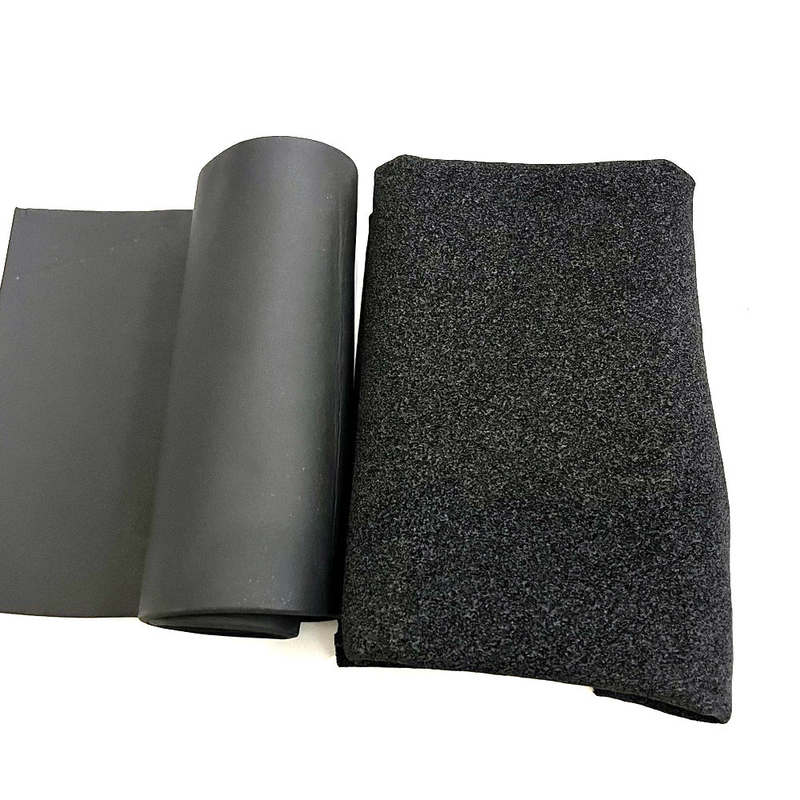

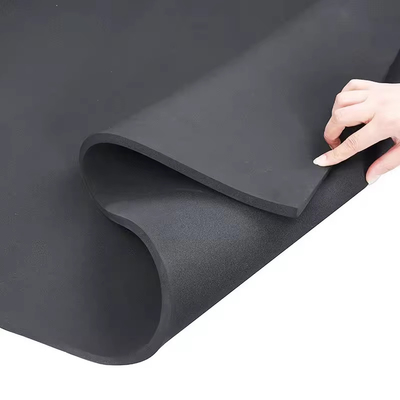

Low Thermal Conductivity Open Cell EPDM Foam Rubber Material For Building
Open Cell EPDM Sponge Rubber:
The Internal cells of EPDM open cell pore foam material are link together with each other and also link with the outer skin,
belongs to non-independent cell structure, and mainly are larger bubble holes or rough holes.
Excellent properties of resistance to high-temperature aging and flame retardant,commonly used in air conditioning,automobile,vibration and sound absorber.etc.
Application:
• Perimeter seals for windows and doors,roofing sheets
• Joints for portable or sectional buildings
• Abutment seals for conservatories,Energy-saving ventilation
• Soundproofed canopy,Timber buildings
• Electronic equipment,Air compressors
• Sealing roof lights,Draught sealing
• Installation of solar panels,Ductwork
Specification:
EPDM(Closed cell)Physical Properties:
| Name&Model | Color | Density (kg/m³) |
Hardness (Shore C°) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-9016 | Black | 190±15 | 25°±5 | ≥500 | ≥130 | ≤40 | ≥3.0 | 950*1900*40 | |
| EPDM-9015 | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤45 | ≥2.0 | 1000*2000*50 | |
| EPDM-9010 | Black | 130±15 | 10°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-9008 | Black | 110±15 | 8°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-WS | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤40 | ≥2.0 | 1000*2000*50 | Sulfur free |
| EPDM-GBZ | Black | 250-500 | 30°-50° | ≥800 | ≥130 | ≤20 | ≥5.0 | 900*1800*35 | High density |
| EPDM-GYD | Black | 600-700 | 50°-75° | ≥1200 | ≥90 | ≤10 | ≥8.0 | 600*1200*30 | High hardness |
| EPDM-SMP | Black | 300±25 | 18°±5 | ≥500 | ≥150 | ≤25 | ≥2.0 | 400*500*568 | Double sided crust |
EPDM (Open cell) Physical Property:
| Name&Model | Color | Density (kg/m³) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-10 | Black/Red/White | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | |
| EPDM-10Z | Black/Red | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | Fire retardant |
| EPDM-20 | Black | 85±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*30 |
The difference between EPDM ,NBR and CR rubber foam:
| Comparison of rubber foam performance parameters | |||
|
Performance |
EPDM Rubber Foam |
NBR Rubber Foam |
CR Rubber Foam |
|
Aging resistance |
good |
poor |
good |
|
electrical insulation |
very good |
poor |
poor |
|
preservative |
good |
general |
good |
|
Impact elasticity |
good |
general |
-- |
|
Adhesion properties |
poor |
good |
-- |
|
Oil resistance |
no |
very good |
good |
|
Wear resistance |
good |
good |
-- |
|
Heat resistance |
very good |
good |
good |
|
Cold resistance |
very good |
poor |
poor |
|
Ozone resistance |
good |
-- |
good |
|
Weather resistance |
very good |
general |
very good |
|
Flame resistance |
no |
-- |
good |
|
Acid resistance |
good |
good |
general |
|
Alkali resistance |
good |
good |
good |
FAQ:
Q1:What about our service?
1).After sale service
2).On time delivery
3).In time reply
Q2:What’s the max thickness you can produce ?
We can laminated different thickness layers into one sheet, our max thickness of lamination is 200mm
Q3:How about the delivery cost and tax cost?
Delivery cost is depend on the way, destination and weight.
And tax is depend on customer’s local customs.
