Heat Preservation Nitrile Foam Good Tear Resistance Self Adhesive NBR Rubber
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.8-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Heat Preservation Nitrile Foam Good Tear Resistance Self Adhesive NBR Rubber | Material: | Closed-cell NBR Sheet |
|---|---|---|---|
| Density: | 40-100kg/m³ | Thickness: | 6-30 Mm |
| Surface: | NBR Foam Rubber+Adhesive | Water Absorption: | ≤10% |
| Application: | Air Conditioning,Construction,Automotive,Electronics | ||
| Highlight: | self adhesive nbr rubber foam,self adhesive pvc nbr closed cell foam,air conditioning nbr rubber foam |
||
Product Description
Heat Preservation Nitrile Foam Good Tear Resistance Self Adhesive NBR Rubber
Nitrile closed cell sponge NBR rubber is an excellent gasket material for sealing applications that require oil and UV resistance.
Also resistant to vegetable oil, animal oil, and mineral oil, gasoline, diesel and other aliphatic and aromatic hydrocarbons. Closed Cell oil resistant Nitrile Sponge Rubber can handle temperatures ranging from -40°C to +95°C.
Sponge NBR rubber is an excellent material for gasket applications that require a soft compressible material.
Closed Cell Nitrile Rubber is a sponge formulation that is manufactured with a continuous skin on both sides. The skin makes the sponge stronger and more tear resistant.
Even if the skin is punctured or cut, the sheets will not allow passage of air or fluid between cells. These gaskets are highly compressible, resilient, light weight and provide good thermal insulation.

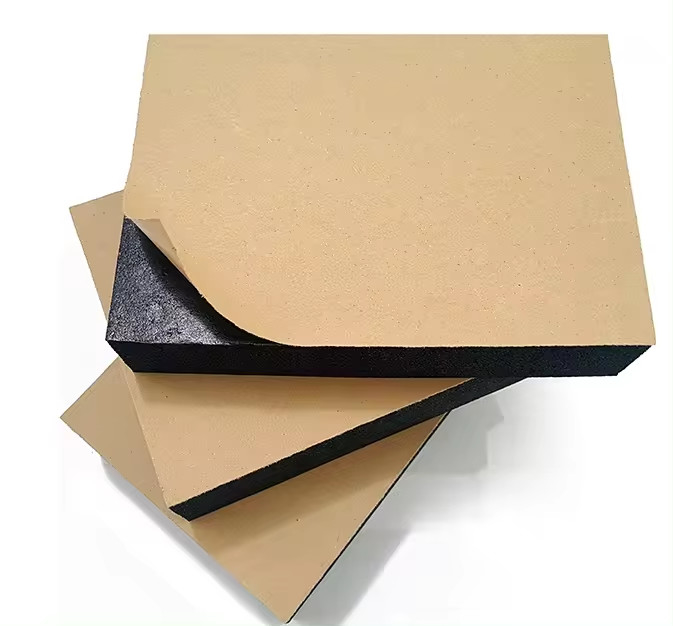

Nitrile Foam Sheet with or without Aluminum Foil:
To enhance durability, insulation and energy saving abilities, PVC Nitrile foam can even be laminated with aluminum foil. After added aluminum foil backing, Vinyl Nitrile foam can outperform other foam materials on thermal insulation and sound dampening occasions.
NBR Foam Tube/ Pipe
Due to its low thermal conductivity property, PVC Nitrile Foam materials are also frequently manufactured as foam tubes serving for HVAC system, industrial pipe lines and other industrial thermal insulation and energy saving applications.
Specification:
1. NBR Rubber Foam Sheet:
| Specification of NBR Sheet | ||||||
| Thickness(mm) | 6TK | 10TK | 15TK | 20TK | 25TK | 30TK |
| Width(mm) | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Length(mm) | 30 | 20 | 12 | 10 | 8 | 6 |
|
Material |
Density±10 |
Hardness |
Tensile Strength |
Ultimate Elongation |
Max Size |
|
NBR/PVC |
55kg/m³ |
|
≥120 Kpa |
≥120% |
2000*1000*30mm |
|
75kg/m³ |
|
≥120 Kpa |
≥120% |
2000*1000*30mm |
|
|
100kg/m³ |
25° |
≥1000 Kpa |
≥100% |
2000*1000*30mm |
2.NBR Rubber Foam Tube:
| Thickness | inches | 1/4“ | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| mm | 6 | 9 | 13 | 15 | 20 | 25 | 30 | |
| ID | Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
|
| mm | inches | |||||||
| 6 | 1/4" | 6*6 | 6*9 | 6*13 | 6*15 | 6*20 | 6*25 | / |
| 10 | 3/8" | 10*6 | 10*9 | 10*13 | 10*15 | 10*20 | 10*25 | / |
| 13 | 1/2" | 13*6 | 13*9 | 13*13 | 13*15 | 13*20 | 13*25 | / |
| 16 | 5/8" | 16*6 | 16*9 | 16*13 | 16*15 | 16*20 | 16*25 | 16*32 |
| 19 | 3/4" | 18*6 | 19*9 | 19*13 | 19*15 | 19*20 | 19*25 | 19*32 |
| 22 | 7/8" | 22*6 | 22*9 | 22*13 | / | 22*20 | 22*25 | 22*32 |
| 25 | 1" | 25*6 | 25*9 | 25*13 | 25*15 | 25*20 | 25*25 | 25*32 |
| 28 | 1-1/8" | 28*6 | 28*9 | 28*13 | / | 28*20 | 28*25 | 28*32 |
| 32 | 1-1/4" | 32*6 | 32*9 | 32*13 | / | 32*20 | 32*25 | 32*32 |
| 35 | 1-3/8" | 35*6 | 35*9 | 35*13 | / | 35*20 | 35*25 | 35*32 |
| 38 | 1-1/2" | / | 38*9 | 38*13 | / | 38*20 | 38*25 | 38*32 |
| 42 | 1-5/8" | / | 42*9 | 42*13 | / | 42*20 | 42*25 | 42*32 |
| 45 | 1-3/4" | / | / | / | / | / | / | / |
| 48 | 1-7/8" | / | 48*9 | 48*13 | / | 48*20 | 48*25 | 48*32 |
| 50 | 2" | / | 50*9 | 50*13 | / | / | / | / |
| 54 | 2-1/8" | / | 54*9 | 54*13 | / | 54*20 | 54*25 | / |
| 57 | 2-1/4" | / | / | / | / | / | / | / |
| 60 | 2-3/8" | / | 60*9 | 60*13 | / | 60*20 | 60*25 | 60*32 |
| 64 | 2-1/2" | / | / | / | / | / | / | / |
| 67 | 2-5/8" | / | / | / | / | / | / | / |
| 70 | 2-3/4" | / | / | / | / | / | / | / |
| 73 | 2-7/8" | / | / | / | / | / | / | / |
| 76 | 3" | / | / | 76*13 | / | 76*20 | 76*25 | 76*32 |
| 80 | 3-1/8" | / | / | / | / | / | / | / |
| 89 | 3-1/2" | / | / | 89*13 | / | 89*20 | 89*25 | 89*32 |
| 102 | 4" | / | / | / | / | / | / | / |
| 108 | 4-1/4" | / | / | / | / | / | 108*25 | 108*32 |
The comparison between EPDM ,NBR and CR foam rubber:
| Comparison of rubber foam performance parameters | |||
| Performance | EPDM Rubber Foam | NBR Rubber Foam | CR Rubber Foam |
| Aging resistance | good | poor | good |
| electrical insulation | very good | poor | poor |
| preservative | good | general | good |
| Impact elasticity | good | general | -- |
| Adhesion properties | poor | good | -- |
| Oil resistance | no | very good | good |
| Wear resistance | good | good | -- |
| Heat resistance | very good | good | good |
| Cold resistance | very good | poor | poor |
| Ozone resistance | good | -- | good |
| Weather resistance | very good | general | very good |
| Flame resistance | no | -- | good |
| Acid resistance | good | good | general |
| Alkali resistance | good | good | good |
FAQ:
Q1:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
Q2:What’s the kinds of Foam you can provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam, EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
Q3:How to get samples ?
Send enquiry to cissy@eco-polyfoam.com, with your details of the foams need, we will check reply in 24 hour
