Alkali Resistance NBR Rubber Plastic Foam Black Nitrile Rubber For Air Conditioning
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.8-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Alkali Resistance NBR Rubber Plastic Foam Black Nitrile Rubber For Air Conditioning | Material: | Cellular NBR Sponge Rubber |
|---|---|---|---|
| Cell Structure: | Closed Cell Foam | ID Size: | 6/10/13/16/19/22/25/28/32/42 |
| Feature: | Soft, Cold Resistance, Fire Retardant, Waterproof | Hardness: | 40-60 Shore C |
| Application: | Air Conditioning,Construction,Automotive,Electronics | ||
| Highlight: | alkali resistance nbr rubber foam,alkali resistance pvc nbr closed cell foam,air conditioning nbr rubber foam |
||
Product Description
Alkali Resistance NBR Rubber Plastic Foam Black Nitrile Rubber For Air Conditioning
Egg Crate Convoluted Nitrile Foam Sheet:
NBR foam sheet can also be convoluted into egg crate convoluted Nitrile foam just like polyurethane foam. The convoluted Nitrile foam can be powerful sound barriers and present superior acoustic insulation and fire retardance performance for lots of application including acoustic conference rooms, theaters and required testing rooms etc.
Nitrile Foam Sheet with or without Aluminum Foil:
To enhance durability, insulation and energy saving abilities, PVC Nitrile foam can even be laminated with aluminum foil. After added aluminum foil backing, Vinyl Nitrile foam can outperform other foam materials on thermal insulation and sound dampening occasions.

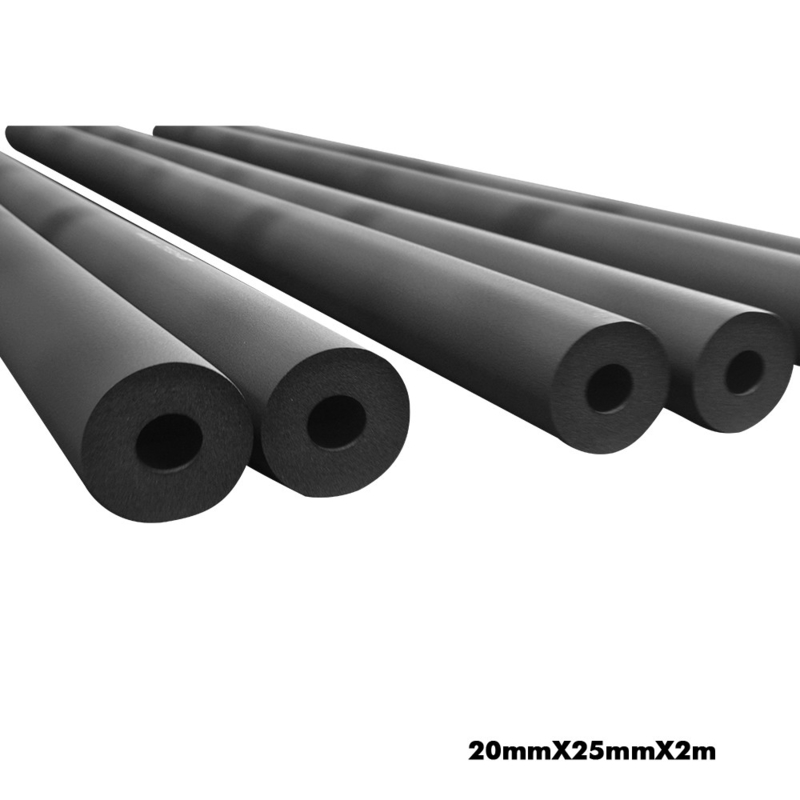

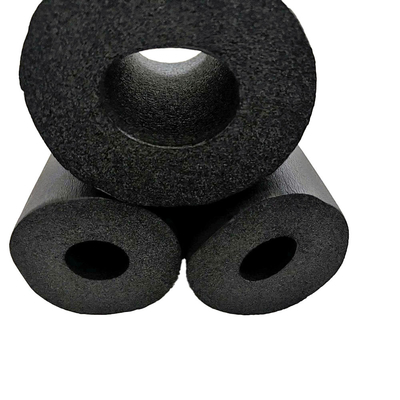

NBR Foam Tube/ Pipe:
Due to its low thermal conductivity property, PVC Nitrile Foam materials are also frequently manufactured as foam tubes serving for HVAC system, industrial pipe lines and other industrial thermal insulation and energy saving applications.
Specification:
1. NBR Rubber Foam Sheet:
| Specification of NBR Sheet | ||||||
| Thickness(mm) | 6TK | 10TK | 15TK | 20TK | 25TK | 30TK |
| Width(mm) | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Length(mm) | 30 | 20 | 12 | 10 | 8 | 6 |
|
Material |
Density±10 |
Hardness |
Tensile Strength |
Ultimate Elongation |
Max Size |
|
NBR/PVC |
55kg/m³ |
|
≥120 Kpa |
≥120% |
2000*1000*30mm |
|
75kg/m³ |
|
≥120 Kpa |
≥120% |
2000*1000*30mm |
|
|
100kg/m³ |
25° |
≥1000 Kpa |
≥100% |
2000*1000*30mm |
2.NBR Rubber Foam Tube:
| Thickness | inches | 1/4“ | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| mm | 6 | 9 | 13 | 15 | 20 | 25 | 30 | |
| ID | Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
|
| mm | inches | |||||||
| 6 | 1/4" | 6*6 | 6*9 | 6*13 | 6*15 | 6*20 | 6*25 | / |
| 10 | 3/8" | 10*6 | 10*9 | 10*13 | 10*15 | 10*20 | 10*25 | / |
| 13 | 1/2" | 13*6 | 13*9 | 13*13 | 13*15 | 13*20 | 13*25 | / |
| 16 | 5/8" | 16*6 | 16*9 | 16*13 | 16*15 | 16*20 | 16*25 | 16*32 |
| 19 | 3/4" | 18*6 | 19*9 | 19*13 | 19*15 | 19*20 | 19*25 | 19*32 |
| 22 | 7/8" | 22*6 | 22*9 | 22*13 | / | 22*20 | 22*25 | 22*32 |
| 25 | 1" | 25*6 | 25*9 | 25*13 | 25*15 | 25*20 | 25*25 | 25*32 |
| 28 | 1-1/8" | 28*6 | 28*9 | 28*13 | / | 28*20 | 28*25 | 28*32 |
| 32 | 1-1/4" | 32*6 | 32*9 | 32*13 | / | 32*20 | 32*25 | 32*32 |
| 35 | 1-3/8" | 35*6 | 35*9 | 35*13 | / | 35*20 | 35*25 | 35*32 |
| 38 | 1-1/2" | / | 38*9 | 38*13 | / | 38*20 | 38*25 | 38*32 |
| 42 | 1-5/8" | / | 42*9 | 42*13 | / | 42*20 | 42*25 | 42*32 |
| 45 | 1-3/4" | / | / | / | / | / | / | / |
| 48 | 1-7/8" | / | 48*9 | 48*13 | / | 48*20 | 48*25 | 48*32 |
| 50 | 2" | / | 50*9 | 50*13 | / | / | / | / |
| 54 | 2-1/8" | / | 54*9 | 54*13 | / | 54*20 | 54*25 | / |
| 57 | 2-1/4" | / | / | / | / | / | / | / |
| 60 | 2-3/8" | / | 60*9 | 60*13 | / | 60*20 | 60*25 | 60*32 |
| 64 | 2-1/2" | / | / | / | / | / | / | / |
| 67 | 2-5/8" | / | / | / | / | / | / | / |
| 70 | 2-3/4" | / | / | / | / | / | / | / |
| 73 | 2-7/8" | / | / | / | / | / | / | / |
| 76 | 3" | / | / | 76*13 | / | 76*20 | 76*25 | 76*32 |
| 80 | 3-1/8" | / | / | / | / | / | / | / |
| 89 | 3-1/2" | / | / | 89*13 | / | 89*20 | 89*25 | 89*32 |
| 102 | 4" | / | / | / | / | / | / | / |
| 108 | 4-1/4" | / | / | / | / | / | 108*25 | 108*32 |
The comparison between EPDM ,NBR and CR foam rubber:
| Comparison of rubber foam performance parameters | |||
| Performance | EPDM Rubber Foam | NBR Rubber Foam | CR Rubber Foam |
| Aging resistance | good | poor | good |
| electrical insulation | very good | poor | poor |
| preservative | good | general | good |
| Impact elasticity | good | general | -- |
| Adhesion properties | poor | good | -- |
| Oil resistance | no | very good | good |
| Wear resistance | good | good | -- |
| Heat resistance | very good | good | good |
| Cold resistance | very good | poor | poor |
| Ozone resistance | good | -- | good |
| Weather resistance | very good | general | very good |
| Flame resistance | no | -- | good |
| Acid resistance | good | good | general |
| Alkali resistance | good | good | good |
FAQ:
Q1:How to get samples ?
Send enquiry to cissy@eco-polyfoam.com, with your details of the foams need, we will check reply in 24 hour
Q2:What’s the kinds of Foam you can provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam, EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
Q3:How many color of foam products you can produce ?
We offer foam sheets in three standard colors: black, white, and grey. However, if you require a different color for your specific application, we are happy to accommodate your request. To ensure that we provide you with the exact color you need, please provide us with the corresponding Pantone code. If you do not have a Pantone code, you can send us a physical sample of the color you require for our production department to analyze. We strive to meet all of our customers' needs and ensure that they receive the high-quality foam products they require for their specific applications.
