High Density PVC NBR Closed Cell Foam Insulation Rubber In Roll And Sheet
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.8-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | High Density PVC NBR Closed Cell Foam Insulation Rubber In Roll And Sheet | Material: | Cellular NBR Sponge Rubber |
|---|---|---|---|
| Thickness: | 9,13,20,25,30 | ID Size: | 6/10/13/16/19/22/25/28/32/42 |
| Feature: | Soft, Cold Resistance, Fire Retardant, Waterproof | Thermal Conductivity: | 0.034-0.038 W/m·K |
| Application: | HVAC, Automotive, Construction | ||
| Highlight: | high density pvc nbr closed cell foam,high density nbr pvc foam,cold resistance nbr pvc foam |
||
Product Description
High Density PVC NBR Closed Cell Foam Insulation Rubber In Roll And Sheet
NBR foam sheet material, also called Vinyl Nitrile foam or PVC NBR foam, is one of most useful and excellent foam materials. They can be fabricated to be Nitrile foam tapes, strips, gaskets, pads, sheets and so on. NBR foam are mostly used for seals, gaskets, heat insulation, soundproof and vibration dampening applications. They are foamed polymer blend of PVC and Nitrile rubber materials. It is foamed Nitrile foam not like the solid and rigid Nitrile rubber.
NBR Foam Gaskets, Seals and Strips:
PVC NBR foam sheet has outstanding sealing and insulation abilities. They can also easily be fabricated to NBR foam gaskets, foam seals and foam weathering strips which widely used for construction and building, automotive and other industrial applications.
NBR Yoga Mats and Seat Cushions:
NBR foam sheets can also used to make yoga mats and they are available in various colors including red, blue, green and so on. We do utilize Nitrile foam materials to manufacture seat cushion which can be soft and resilient. Besides, NBR foam is easily to be printed with various custom designs by using basic screen printing.
Specification:

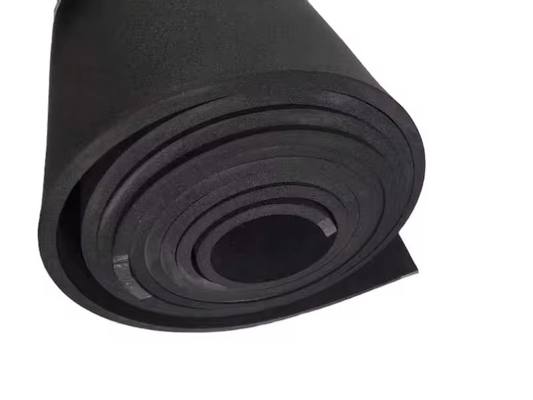

1. NBR Rubber Foam Sheet:
| Specification of NBR Sheet | ||||||
| Thickness(mm) | 6TK | 10TK | 15TK | 20TK | 25TK | 30TK |
| Width(mm) | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Length(mm) | 30 | 20 | 12 | 10 | 8 | 6 |
|
Material |
Density±10 |
Hardness |
Tensile Strength |
Ultimate Elongation |
Max Size |
|
NBR/PVC |
55kg/m³ |
|
≥120 Kpa |
≥120% |
2000*1000*30mm |
|
75kg/m³ |
|
≥120 Kpa |
≥120% |
2000*1000*30mm |
|
|
100kg/m³ |
25° |
≥1000 Kpa |
≥100% |
2000*1000*30mm |

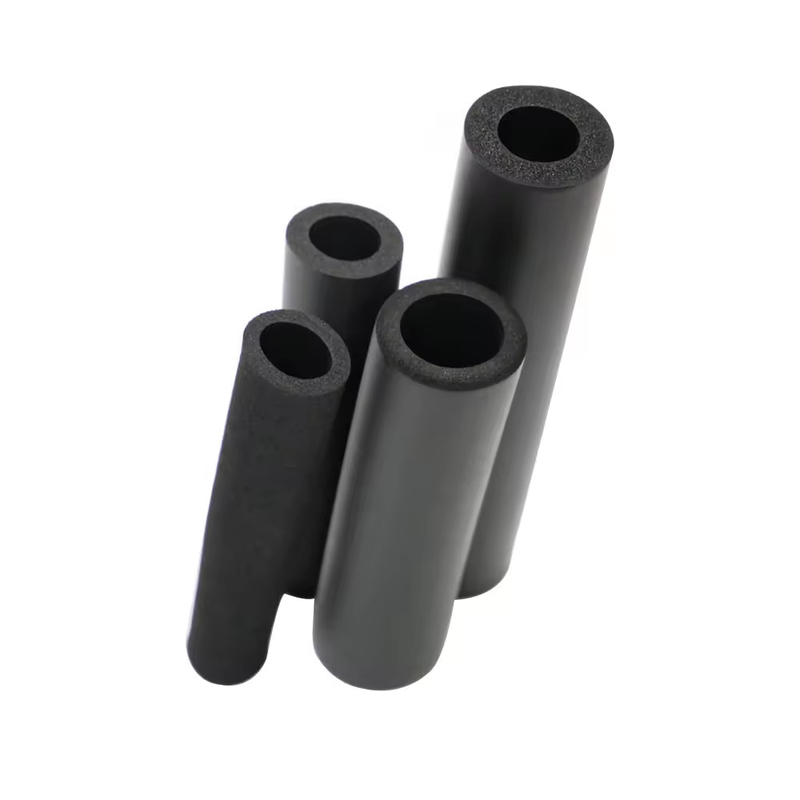

2.NBR Rubber Foam Tube:
| Thickness | inches | 1/4“ | 3/8" | 1/2" | 5/8" | 3/4" | 1" | 1-1/4" |
| mm | 6 | 9 | 13 | 15 | 20 | 25 | 30 | |
| ID | Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
Size ID*TK |
|
| mm | inches | |||||||
| 6 | 1/4" | 6*6 | 6*9 | 6*13 | 6*15 | 6*20 | 6*25 | / |
| 10 | 3/8" | 10*6 | 10*9 | 10*13 | 10*15 | 10*20 | 10*25 | / |
| 13 | 1/2" | 13*6 | 13*9 | 13*13 | 13*15 | 13*20 | 13*25 | / |
| 16 | 5/8" | 16*6 | 16*9 | 16*13 | 16*15 | 16*20 | 16*25 | 16*32 |
| 19 | 3/4" | 18*6 | 19*9 | 19*13 | 19*15 | 19*20 | 19*25 | 19*32 |
| 22 | 7/8" | 22*6 | 22*9 | 22*13 | / | 22*20 | 22*25 | 22*32 |
| 25 | 1" | 25*6 | 25*9 | 25*13 | 25*15 | 25*20 | 25*25 | 25*32 |
| 28 | 1-1/8" | 28*6 | 28*9 | 28*13 | / | 28*20 | 28*25 | 28*32 |
| 32 | 1-1/4" | 32*6 | 32*9 | 32*13 | / | 32*20 | 32*25 | 32*32 |
| 35 | 1-3/8" | 35*6 | 35*9 | 35*13 | / | 35*20 | 35*25 | 35*32 |
| 38 | 1-1/2" | / | 38*9 | 38*13 | / | 38*20 | 38*25 | 38*32 |
| 42 | 1-5/8" | / | 42*9 | 42*13 | / | 42*20 | 42*25 | 42*32 |
| 45 | 1-3/4" | / | / | / | / | / | / | / |
| 48 | 1-7/8" | / | 48*9 | 48*13 | / | 48*20 | 48*25 | 48*32 |
| 50 | 2" | / | 50*9 | 50*13 | / | / | / | / |
| 54 | 2-1/8" | / | 54*9 | 54*13 | / | 54*20 | 54*25 | / |
| 57 | 2-1/4" | / | / | / | / | / | / | / |
| 60 | 2-3/8" | / | 60*9 | 60*13 | / | 60*20 | 60*25 | 60*32 |
| 64 | 2-1/2" | / | / | / | / | / | / | / |
| 67 | 2-5/8" | / | / | / | / | / | / | / |
| 70 | 2-3/4" | / | / | / | / | / | / | / |
| 73 | 2-7/8" | / | / | / | / | / | / | / |
| 76 | 3" | / | / | 76*13 | / | 76*20 | 76*25 | 76*32 |
| 80 | 3-1/8" | / | / | / | / | / | / | / |
| 89 | 3-1/2" | / | / | 89*13 | / | 89*20 | 89*25 | 89*32 |
| 102 | 4" | / | / | / | / | / | / | / |
| 108 | 4-1/4" | / | / | / | / | / | 108*25 | 108*32 |
The comparison between EPDM ,NBR and CR foam rubber:
| Comparison of rubber foam performance parameters | |||
| Performance | EPDM Rubber Foam | NBR Rubber Foam | CR Rubber Foam |
| Aging resistance | good | poor | good |
| electrical insulation | very good | poor | poor |
| preservative | good | general | good |
| Impact elasticity | good | general | -- |
| Adhesion properties | poor | good | -- |
| Oil resistance | no | very good | good |
| Wear resistance | good | good | -- |
| Heat resistance | very good | good | good |
| Cold resistance | very good | poor | poor |
| Ozone resistance | good | -- | good |
| Weather resistance | very good | general | very good |
| Flame resistance | no | -- | good |
| Acid resistance | good | good | general |
| Alkali resistance | good | good | good |
FAQ:
Q1:How to get samples ?
Send enquiry to cissy@eco-polyfoam.com, with your details of the foams need, we will check reply in 24 hour
Q2:What’s the kinds of Foam you can provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam, EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
Q3:What’s the max thickness you can produce ?
We can laminated different thickness layers into one sheet, our max thickness of lamination is 200mm
