XPE IXPE Foam Sheet Extrusion Line Machinery For Polyethylene Foam Sheet Roll Making
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000-80,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | XPE IXPE Foam Sheet Extrusion Line Machinery For Polyethylene Foam Sheet Roll Making | Product Type: | Extrusion Molding Machine |
|---|---|---|---|
| Screw L/D Ratio: | 30:1 | Screw Material: | 38CrMoALA |
| Screw Diameter (mm): | 170mm | Temperature Measurement Point: | 16 Zones |
| Sheet Cooling Mode: | Water Cooling | Cooling Mode Of Barrel: | Circulating Water Cooling |
| Highlight: | Polyethylene Foam Sheet Extrusion Line,IXPE Foam Sheet Extrusion Line,XPE Foam Sheet Extrusion Line |
||
Product Description
XPE IXPE Foam Sheet Extrusion Line Machinery For Polyethylene Foam Sheet Roll Making
The IXPE XPE XLPE sheet extrusion line is a master sheet production line for processing IXPE(or XPE), Which can be used to process low-density polyethylene, foaming agent, crosslinking agent and other sheet extrusion, the width of the sheet is 300-1000mm,and the thickness is 0.1-3mm.
IXPE (irradiation crosslinked polyethylene foam sheet) is produced with high temperature foaming after radiation cross-linking of the electron accelerator(no chemical bridging agent)on the extruded materials from filling mixing with polyethylene modified polyethylene, meeting RoHS.
XPE(chemical crosslinked polyethylene foam sheet) is a polymer foam materials made by mixing polyethylene with various fillers and adding chemical crosslinker and foaming agent.
Specification:
|
Extruder |
Unit |
170/30 |
|
Screw Diameter |
mm |
170 |
|
L/D Screwt Ratio |
|
30:1 |
|
Screw Speed |
rpm |
1480 |
|
Motor Power |
KW |
200 |
|
Mattrix Thickness Range |
mm |
0.8-4 |
|
Capacity |
KG |
80-260 |
|
Dimension |
mm |
4600*2000*1600 |
|
Temperature measurement point |
Zone |
16 |
Machine Details:

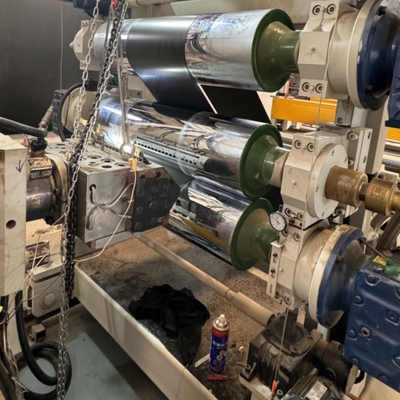

(1) Three Roll/Two Roll Extrusion Machine Sets:
Extruder Host → Three Roll Calender → Trimming Unit → Winding Unit
(2) Water Cooling Extrusion Machine Sets:
Extruder Host → Water Cooling Tank → Trimming Unit → Winding Unit
FAQ:
Q1:What plastic foaming machines could your company provide?
Internal mixer machine, Granulation machine, XPE foam extrusion machine,
XLPE Horizontal foaming furnace, IXPE Vertical foaming furnace, Embossing machine,
Foam laminating machine, Foam thicking machine, Glue coating machine, PE slicing machine.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:How long is your lead time?
Normally it's about 10-25 weeks after order confirmed and deposit received.
