XPE Crosslinked-Linked PE Foam Machine Horizontal Furnace Foaming Machine of CE
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,000-220,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | XPE Crosslinked-Linked PE Foam Machine Horizontal Furnace Foaming Machine Of CE | Product Type: | XPE Foam Machine |
|---|---|---|---|
| Temperature Zone: | 3 Zones | Burner Heat Output: | 300,000 Kcal |
| Length Of Foaming Furnace: | 24.4m | Equipment Output: | 60-200kg/h |
| Certification: | CE | Automation: | Automatic |
| Highlight: | XPE Horizontal Furnace Foaming Machine,CE Horizontal Furnace Foaming Machine,Horizontal Furnace Foaming Machine |
||
Product Description
XPE Crosslinked-Linked PE Foam Machine Horizontal Furnace Foaming Machine of CE

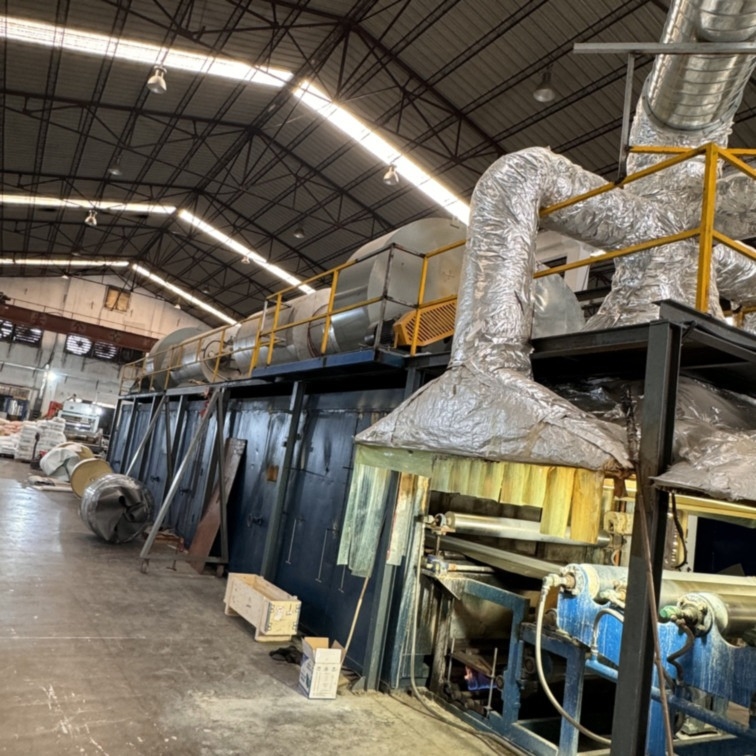

XPE foaming machine(XPE Machine, XPE foam machine) is a horizontal furnace, which mainly produces cross-linked PE foamed tech products. The heating method is gas heating. XPE foaming machine has the advantages of large output,uniform product width, high efficiency,convenient maintenance and stable production. XPE machines includes an unwinder, a horizontal furnace, a combustion unit, a 5-roller cooler ate the furnace mouth, a correction machine, a trimming machine, a sheet tractor, and a double-station winder. Optional corona machine and surface treatment machine.
Specification:
|
XPE Horizontal Foaming Furnace |
Unit |
XPE 24400-2000 |
|
Equipment Dimensions |
mm |
24400*3000*4750 |
|
Equipment Output |
kg/h |
60-200 |
|
Burner Heat Output |
Kcal |
300,000 |
|
Temperature Zone |
Zone |
3 |
|
Production Max Width |
mm |
2000 |
|
Production Thickness Range |
mm |
3-12 |
|
Preheating fan power |
KW |
18.5 |
|
Crosslinking fan power |
KW |
15 |
|
Foaming fan power |
KW |
37 |
XPE horizontal cross-linking foaming furnace includes the following units:
Master Unwinding Machine Furnance Mouth Tractor Horizontal Furnance Unit
Cooling and Shaping Unit Double Station Winder
FAQ:
Q1:What plastic foaming machines could your company provide?
Internal mixer machine, Granulation machine, XPE foam extrusion machine,
XLPE Horizontal foaming furnace, IXPE Vertical foaming furnace, Embossing machine,
Foam laminating machine, Foam thicking machine, Glue coating machine, PE slicing machine.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:How long is your lead time?
Normally it's about 10-25 weeks after order confirmed and deposit received.
Q4:Is there any vulnerable parts? How to do if the vulnerable parts damaged?
Yes, for the new XPE / IXPE enterprises, we provide operator training services to help enterprises enter into the normal production state in the shortest time.
Q5:Could you customize the plastic foaming machine?
Yes, Of course
Q6:How long is the guarantee period of the machines? When does it start?
The guarantee period of our equipment is one year, calculated the date from when it leaves the factory. During the guarantee period, we provide normal damaged spare parts for free. After the guarantee period, we only take the cost of components.
