XLPE IXPE Foam Machine Extrusion Making Machine For Crosslinked Polyethylene Foam
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000-80,000/set |
| Packaging Details: | in plywood pallet |
| Delivery Time: | 120 days or to be negotiated |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Product Name: | XLPE IXPE Foam Machine Extrusion Making Machine For Crosslinked Polyethylene Foam | Product Type: | Extrusion Molding Machine XLPE Foam Machine |
|---|---|---|---|
| Screw L/D Ratio: | 30:1 | Screw Material: | 38CrMoALA |
| Screw Diameter (mm): | 170mm | Screw Design: | Single-screw |
| Dimension(mm): | 4600*2000*1600 | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| Highlight: | IXPE Foam Machine,Crosslinked Polyethylene Foam Machine,XLPE IXPE Foam Machine |
||
Product Description
XLPE IXPE Foam Machine Extrusion Making Machine For Crosslinked Polyethylene Foam
Foam sheet extrusion line is a single screw extrusion capacity, which is suitable for the production of XPE foam sheet and IXPE foam sheet.

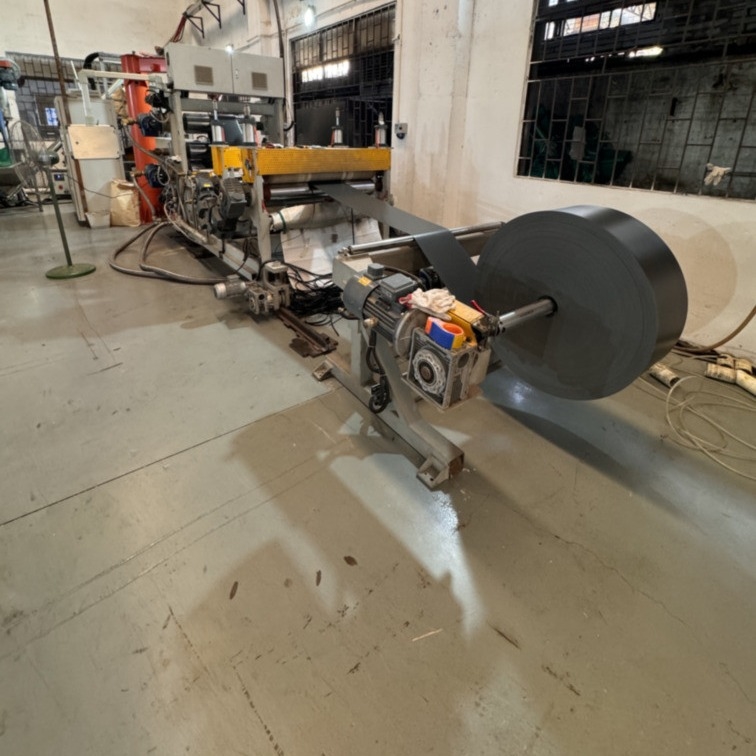

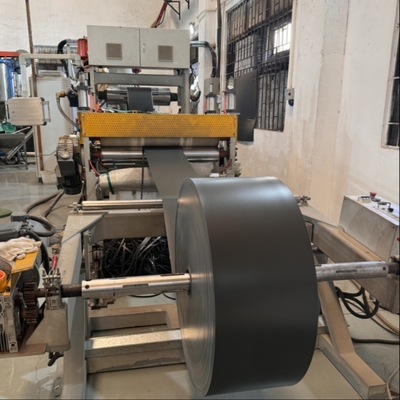

Foam sheet extrusion line is composed of feeder,extruder,main machine, mold, two-roll/three-roll calendering(or equipped with cooling water tank),cooling roll,trimming machine,sheet traction machine,single-station winder,etc.
IXPE (irradiation crosslinked polyethylene foam sheet) is produced with high temperature foaming after radiation cross-linking of the electron accelerator(no chemical bridging agent)on the extruded materials from filling mixing with polyethylene modified polyethylene, meeting RoHS
XPE(chemical crosslinked polyethylene foam sheet) is a polymer foam materials made by mixing polyethylene with various fillers and adding chemical crosslinker and foaming agent.
Specification:
|
Extruder |
Unit |
170/30 |
|
Screw Diameter |
mm |
170 |
|
L/D Screwt Ratio |
|
30:1 |
|
Screw Speed |
rpm |
1480 |
|
Motor Power |
KW |
200 |
|
Mattrix Thickness Range |
mm |
0.8-4 |
|
Capacity |
KG |
80-260 |
|
Dimension |
mm |
4600*2000*1600 |
|
Temperature measurement point |
Zone |
16 |
Machine Details:
(1) Three Roll/Two Roll Extrusion Machine Sets:
Extruder Host → Three Roll Calender → Trimming Unit → Winding Unit
(2) Water Cooling Extrusion Machine Sets:
Extruder Host → Water Cooling Tank → Trimming Unit → Winding Unit
FAQ:
Q1:What plastic foaming machines could your company provide?
Internal mixer machine, Granulation machine, XPE foam extrusion machine,
XLPE Horizontal foaming furnace, IXPE Vertical foaming furnace, Embossing machine,
Foam laminating machine, Foam thicking machine, Glue coating machine, PE slicing machine.
Q2:What kind of services can you provide?
We are specialized in manufacture the XPE/IXPE Foaming equipment, in addition to installation and setup the production line, our service also includes provide raw material formula, process parameters and other technical services to the buyer freely.
Q3:How long is your lead time?
Normally it's about 10-25 weeks after order confirmed and deposit received.
Q4:Is there any vulnerable parts? How to do if the vulnerable parts damaged?
Yes, for the new XPE / IXPE enterprises, we provide operator training services to help enterprises enter into the normal production state in the shortest time.
