10mm 20mm 30mm Self Adhesive XLPE HVAC Insulation Foam For Duct Work
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | BS476,UL94,RoHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 10mm 20mm 30mm Self Adhesive XLPE HVAC Insulation Foam For Duct Work | Structure: | Adhesive+XPE Foam+ Aluminum Foil |
|---|---|---|---|
| Density: | 28-35kg/m³ | Thickness: | 12/13/15/19/25/30mm |
| Working Temperature: | '-40℃ ~80℃ | Flammability: | B1 Grade |
| Water Absorption: | Less Than 0.5% | Type: | Insulation Material |
| Width: | 1000-1500mm | Application: | HVAC Ducts, Pipes, Tanks, And Equipment |
| Thermal Conductivity: | ≤0.045W/m.k | Reflective: | 96%~97% |
Product Description

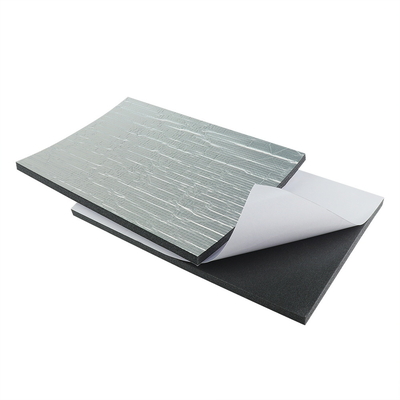

10mm 20mm 30mm Self Adhesive XLPE HVAC Insulation Foam For Duct Work
Available in 10mm, 20mm, and 30mm thickness options, our self-adhesive XLPE insulation foam is tailor-made for HVAC duct work. This product simplifies installation with its convenient self-adhesive backing. All you need to do is peel off the protective layer and firmly apply it to the duct surface, ensuring a seamless and secure fit.
The closed-cell XLPE structure is a powerhouse when it comes to performance. It offers remarkable thermal resistance, effectively curbing heat loss in winter and heat gain in summer. By minimizing temperature fluctuations within the ducts, it significantly boosts the energy efficiency of your HVAC system, leading to reduced utility bills.
Moreover, its closed-cell design acts as a reliable shield against moisture, preventing condensation from forming on the duct walls. This not only helps in maintaining the integrity of the ducts but also reduces the risk of mold growth, which could otherwise compromise indoor air quality. Additionally, the foam resists wear and tear, ensuring long-term durability even in demanding environments.
Whether it's a residential, commercial, or industrial HVAC setup, this self-adhesive XLPE insulation foam is up to the task. It can be used to insulate ducts of various shapes and sizes, helping to reduce noise from air movement and vibrations, creating a more comfortable indoor environment.
XPE foam coated adhesive and aluminum foil:
|

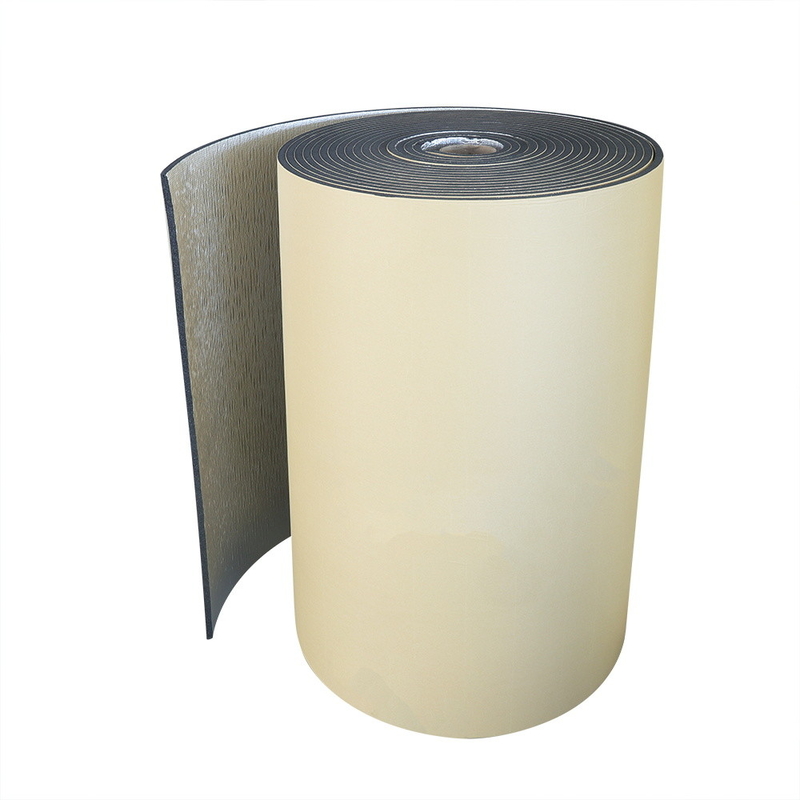

Rolls-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
5 |
1000,1200,1500 |
50 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
10 |
1000,1200,1500 |
25 |
|
|
12 |
1000,1200,1500 |
25 |
|
|
13 |
1000,1200,1500 |
25 |
|
|
15 |
1000,1200,1500 |
25 |
|
|
19 |
1000,1200,1500 |
25 |
|
|
20 |
1000,1200,1500 |
15 |
|
|
25 |
1000,1200,1500 |
15 |
|
|
Sheet-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
10 |
1000,1200,1500 |
2 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
12 |
1000,1200,1500 |
2 |
|
|
13 |
1000,1200,1500 |
2 |
|
|
15 |
1000,1200,1500 |
2 |
|
|
19 |
1000,1200,1500 |
2 |
|
|
20 |
1000,1200,1500 |
2 |
|
|
25 |
1000,1200,1500 |
2 |
|
|
30 |
1000,1200,1500 |
2 |
|
XPE foam with double sided Aluminum Foil:
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
4 |
1200,1350,1500 |
20.22.25.40.50 |
1.Both sides in aluminum foil faced 2.R value ≥2,based on thickness 3.Emissivity≥90% or ≥95%,based on foil type. 4.Thickness,width and length can be customized by customer's requests |
|
5 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
6 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
7 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
8 |
1200,1350,1500 |
20,40,50, |
|
|
10 |
1200,1350,1500 |
20,40 |
FAQ:
Q1:How can I know the suitable foam density I need?
Our PE foam density is between 25 kg/m3 and 330 kg/m3
We can provide the best solution for you according to the application, Density, hardness, thickness.
And The free sample is available for your confirmation and test.
Q2:What are the differences between XPE and IXPE?
XPE is chemically cross-linked, with rough surface.
IXPE is physically cross-linked, with smooth surface.
Q3:Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again, like to be remade
to be mattress, underlay, furniture filling etc
Q4:Does your foam work with adhesives?
Our foam does work well with adhesives. PE foam tape is one of the foam application
Q5: Is polyethylene foam toxic?
Polyethylene is Safe and Non-Toxic
Blocking chemical off-gassing is not so simple.Low density, food-grade polyethylene is safe and non-toxic. It has a simple molecular structure that does not require toxic chemical additives like phthalates and other unsafe plasticizers.
