25kg/M³ Aluminum Foil Composite Xpe Foam Polyolefin Insulation For HVAC Ductwork
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | BS476,UL94,RoHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 25kg/M³ Aluminum Foil Composite Xpe Foam Polyolefin Insulation For HVAC Ductwork | Structure: | Adhesive+XPE Foam+ Aluminum Foil |
|---|---|---|---|
| Density: | 28-35kg/m³ | Thickness: | 12/13/15/19/25/30mm |
| Working Temperature: | '-40℃ ~80℃ | Flammability: | B1 Grade |
| Water Absorption: | Less Than 0.5% | Type: | Insulation Material |
| Width: | 1000-1500mm | Application: | HVAC Ducts, Pipes, Tanks, And Equipment |
| Thermal Conductivity: | ≤0.045W/m.k | Reflective: | 96%~97% |
Product Description

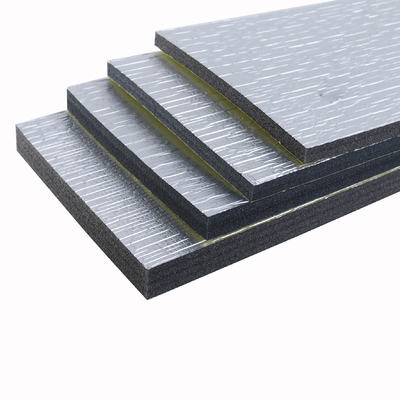

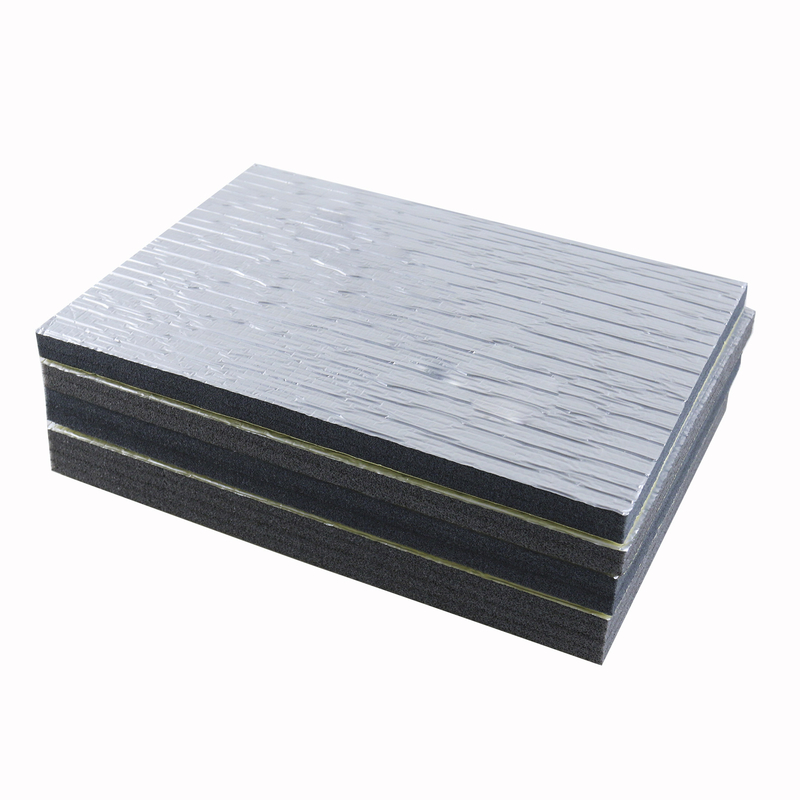

25kg/M³ Aluminum Foil Composite Xpe Foam Polyolefin Insulation For HVAC Ductwork
The 25kg/m³ density XPE foam in this aluminum foil composite insulation is key to its performance in HVAC ductwork. This density balances lightweight flexibility with structural integrity, allowing easy installation on various duct shapes while maintaining a tight seal.
Its closed-cell structure at 25kg/m³ offers optimal thermal resistance, curbing heat loss through ducts without adding excessive weight. The density ensures durability against wear during installation and operation, suitable for high-traffic construction sites.
Applications span residential, commercial, and industrial duct systems. In homes, it stabilizes airflow temperatures; in offices/malls, it boosts HVAC efficiency; in factories, it resists minor impacts. This density makes it versatile—effective for both small ducts in apartments and large industrial ductwork, enhancing energy savings across settings.
XPE foam coated adhesive and aluminum foil:
|
Rolls-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
5 |
1000,1200,1500 |
50 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
10 |
1000,1200,1500 |
25 |
|
|
12 |
1000,1200,1500 |
25 |
|
|
13 |
1000,1200,1500 |
25 |
|
|
15 |
1000,1200,1500 |
25 |
|
|
19 |
1000,1200,1500 |
25 |
|
|
20 |
1000,1200,1500 |
15 |
|
|
25 |
1000,1200,1500 |
15 |
|
|
Sheet-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
10 |
1000,1200,1500 |
2 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
12 |
1000,1200,1500 |
2 |
|
|
13 |
1000,1200,1500 |
2 |
|
|
15 |
1000,1200,1500 |
2 |
|
|
19 |
1000,1200,1500 |
2 |
|
|
20 |
1000,1200,1500 |
2 |
|
|
25 |
1000,1200,1500 |
2 |
|
|
30 |
1000,1200,1500 |
2 |
|
XPE foam with double sided Aluminum Foil:
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
4 |
1200,1350,1500 |
20.22.25.40.50 |
1.Both sides in aluminum foil faced 2.R value ≥2,based on thickness 3.Emissivity≥90% or ≥95%,based on foil type. 4.Thickness,width and length can be customized by customer's requests |
|
5 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
6 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
7 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
8 |
1200,1350,1500 |
20,40,50, |
|
|
10 |
1200,1350,1500 |
20,40 |
FAQ:
Q1:What applications could the XPE and IXPE foam applied for?
A lot. Automotive NVH; PE foam tape; Building insulation; HVAC insulation; Electronic; Sports protection; Flooring underlay;etc.
Q2:What are the differences between XPE and IXPE?
XPE is chemically cross-linked, with rough surface. IXPE is physically cross-linked, with
smooth surface.
Q3:Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again, like to be remade
to be mattress, underlay, furniture filling etc
Q4:Does your foam work with adhesives?
Our foam does work well with adhesives. PE foam tape is one of the foam application
Q5: Do you have fire retardant foam?
Yes, we have. UL94 HF-1; FMVSS302/ISO3795; BS476 Class 0
