Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | BS476,UL94,RoHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration | Structure: | Adhesive+XPE Foam+ Aluminum Foil |
|---|---|---|---|
| Density: | 28-35kg/m³ | Thickness: | 12/13/15/19/25/30mm |
| Working Temperature: | '-40℃ ~80℃ | Flammability: | B1 Grade |
| Water Absorption: | Less Than 0.5% | Type: | Insulation Material |
| Width: | 1000-1500mm | Application: | HVAC Ducts, Pipes, Tanks, And Equipment |
| Thermal Conductivity: | ≤0.045W/m.k | Reflective: | 96%~97% |
Product Description
Reflective Heat Insulation Material XLPE Foam Backed Film For Refrigeration
Beyond refrigerators, aluminum-backed XLPE finds applications in a wide range of industries. In the building and construction sector, it's used for insulating walls, roofs, and floors. The aluminum film reflects solar radiation, while the XLPE foam provides thermal insulation, helping to regulate indoor temperatures and reduce energy consumption for heating and cooling. This is especially beneficial in both residential and commercial buildings, such as offices, hotels, and apartment complexes.
For heating, ventilation, and air conditioning (HVAC) systems, aluminum-backed XLPE is applied to ducts. It not only insulates the ducts to prevent heat loss or gain but also dampens noise from air movement. The material's moisture resistance is crucial in maintaining the integrity of the ducts, as it can prevent condensation and subsequent mold growth, which is a common issue in HVAC systems.
XPE foam coated adhesive and aluminum foil:
|
Rolls-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
5 |
1000,1200,1500 |
50 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
10 |
1000,1200,1500 |
25 |
|
|
12 |
1000,1200,1500 |
25 |
|
|
13 |
1000,1200,1500 |
25 |
|
|
15 |
1000,1200,1500 |
25 |
|
|
19 |
1000,1200,1500 |
25 |
|
|
20 |
1000,1200,1500 |
15 |
|
|
25 |
1000,1200,1500 |
15 |
|
|
Sheet-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
10 |
1000,1200,1500 |
2 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
12 |
1000,1200,1500 |
2 |
|
|
13 |
1000,1200,1500 |
2 |
|
|
15 |
1000,1200,1500 |
2 |
|
|
19 |
1000,1200,1500 |
2 |
|
|
20 |
1000,1200,1500 |
2 |
|
|
25 |
1000,1200,1500 |
2 |
|
|
30 |
1000,1200,1500 |
2 |
|

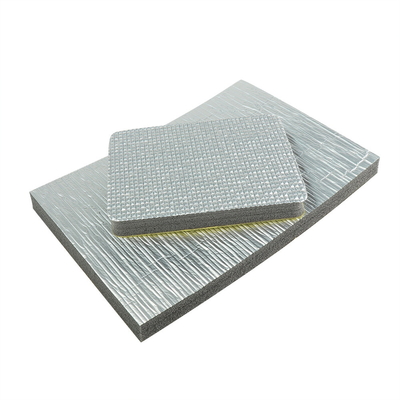

XPE foam with double sided Aluminum Foil:
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
4 |
1200,1350,1500 |
20.22.25.40.50 |
1.Both sides in aluminum foil faced 2.R value ≥2,based on thickness 3.Emissivity≥90% or ≥95%,based on foil type. 4.Thickness,width and length can be customized by customer's requests |
|
5 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
6 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
7 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
8 |
1200,1350,1500 |
20,40,50, |
|
|
10 |
1200,1350,1500 |
20,40 |
FAQ:
Q1:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q2:What are the differences between XPE and IXPE?
XPE is chemically cross-linked, with rough surface. IXPE is physically cross-linked, with
smooth surface.
Q3:Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again, like to be remade
to be mattress, underlay, furniture filling etc
Q4:Does your foam work with adhesives?
Our foam does work well with adhesives. PE foam tape is one of the foam application
