Reduce Heat Energy Saving Material XPE Insulation Foam For AC Pipe
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | BS476,UL94,RoHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Reduce Heat Energy Saving Material XPE Insulation Foam For AC Pipe | Structure: | PET Film + Embossed IXPE Foam |
|---|---|---|---|
| Density: | 28-35kg/m³ | Working Temperature: | '-40℃ ~80℃ |
| Flammability: | B1 Grade | Water Absorption: | Less Than 0.5% |
| Type: | Insulation Material | Application: | HVAC Ducts, Pipes, Tanks, And Equipment |
| Thermal Conductivity: | ≤0.045W/m.k | Reflective: | 96%~97% |
Product Description

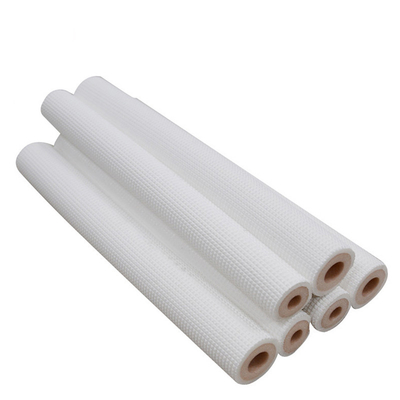

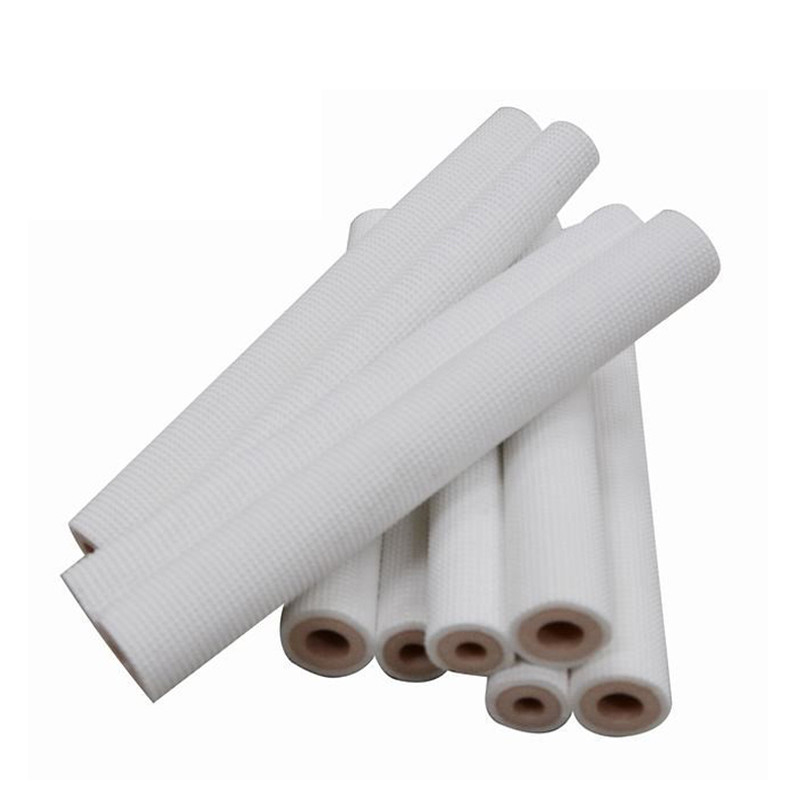

Reduce Heat Energy Saving Material XPE Insulation Foam For AC Pipe
XPE insulation foam is a high-performance heat-reducing and energy-saving material specifically designed for AC pipes. Its closed-cell structure forms an effective barrier against heat transfer, significantly minimizing the amount of external heat that penetrates into the pipes. This ensures that the cooled air flowing through the AC pipes remains at the desired temperature, reducing the workload on the air conditioning system and thus saving a considerable amount of energy.
In terms of performance, XPE insulation foam is lightweight yet durable. It exhibits excellent resistance to moisture, which prevents condensation from forming on the outer surface of the AC pipes—condensation that could otherwise lead to corrosion or mold growth, compromising the system's lifespan. Additionally, it is flexible and easy to install, conforming tightly to the shape of various AC pipes, whether they are straight or curved, ensuring a seamless fit that maximizes heat insulation efficiency.
This material finds wide application in both residential and commercial AC systems. For residential use, it is ideal for insulating the copper pipes of split air conditioners, helping to maintain efficient cooling in homes. In commercial settings, such as office buildings, shopping malls, and hotels, it is used to insulate the extensive network of AC pipes, ensuring that the central air conditioning systems operate at peak energy efficiency, reducing overall operational costs while providing consistent cooling comfort.
XPE foam coated adhesive and aluminum foil:
|
Rolls-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
5 |
1000,1200,1500 |
50 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
10 |
1000,1200,1500 |
25 |
|
|
12 |
1000,1200,1500 |
25 |
|
|
13 |
1000,1200,1500 |
25 |
|
|
15 |
1000,1200,1500 |
25 |
|
|
19 |
1000,1200,1500 |
25 |
|
|
20 |
1000,1200,1500 |
15 |
|
|
25 |
1000,1200,1500 |
15 |
|
|
Sheet-air condition air duct |
|||
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
10 |
1000,1200,1500 |
2 |
1.One side adhesive,the other side with aluminum foil; 2.One side with aluminum foil; 3.One side with adhesive 4.No aluminum foil or no adhesive
Aluminum foil: silver color Adhesive:Acrylic |
|
12 |
1000,1200,1500 |
2 |
|
|
13 |
1000,1200,1500 |
2 |
|
|
15 |
1000,1200,1500 |
2 |
|
|
19 |
1000,1200,1500 |
2 |
|
|
20 |
1000,1200,1500 |
2 |
|
|
25 |
1000,1200,1500 |
2 |
|
|
30 |
1000,1200,1500 |
2 |
|
XPE foam with double sided Aluminum Foil:
|
Thickness (mm) |
Width(mm) |
Length(m) |
Remark |
|
4 |
1200,1350,1500 |
20.22.25.40.50 |
1.Both sides in aluminum foil faced 2.R value ≥2,based on thickness 3.Emissivity≥90% or ≥95%,based on foil type. 4.Thickness,width and length can be customized by customer's requests |
|
5 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
6 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
7 |
1200,1350,1500 |
20,22,25,40,50 |
|
|
8 |
1200,1350,1500 |
20,40,50, |
|
|
10 |
1200,1350,1500 |
20,40 |
FAQ:
Q1:What is the thickness tolerance?
It depends on the density and thickness.
Q2:What are the differences between XPE and IXPE?
XPE is chemically cross-linked, with rough surface. IXPE is physically cross-linked, with
smooth surface.
Q3:Is XLPE foam recyclable?
Due to it is crosslinked and close cell, it is hard to recyclable. But the wasted pe foam could be reused again, like to be remade
to be mattress, underlay, furniture filling etc
Q4:Does your foam work with adhesives?
Our foam does work well with adhesives. PE foam tape is one of the foam application
