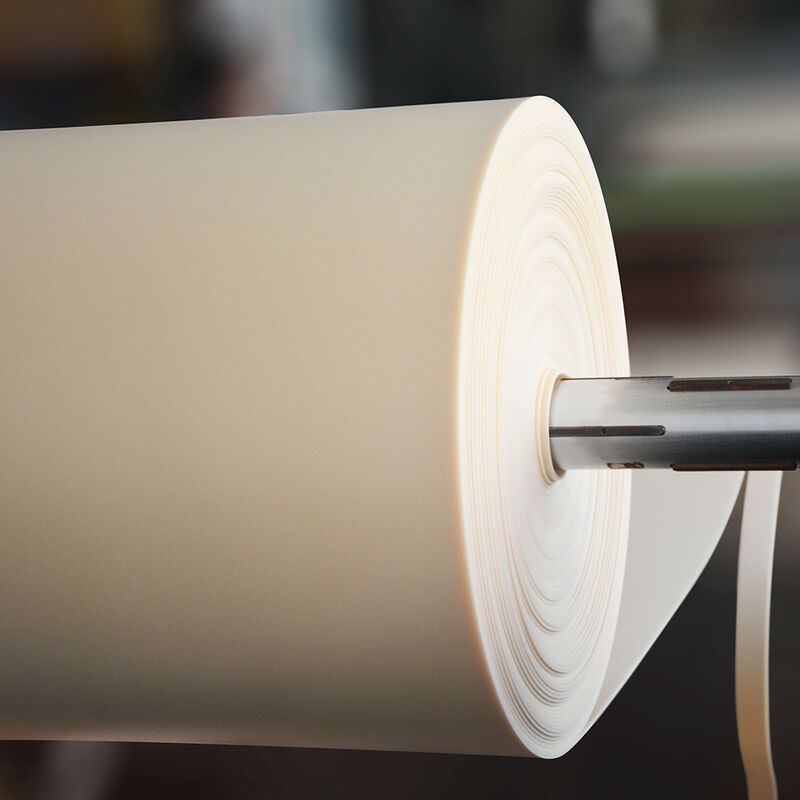

Lightweight Closed Cell Cross-Linked IXPP Foam Roll 3mm-8mm Thickness for Anti-Static Electronic Packaging Protection
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EKKOFLEX |
| Certification: | ISO 9001:2015, RoHS, REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 Square Meters |
|---|---|
| Price: | USD 0.8-3.5 / Square Meter |
| Packaging Details: | PE film wrapped rolls with protective end caps |
| Delivery Time: | 7-10 working days for stock, 15-25 days for production |
| Payment Terms: | T/T,L/C,PayPal |
| Supply Ability: | 200000 Square Meters per Month |
|
Detail Information |
|||
| Material: | IXPP (Irradiation Cross-Linked Polypropylene Foam) | Foam Type: | Closed Cell |
|---|---|---|---|
| Thickness Range: | 3mm - 8mm | Density Range: | 33-200 Kg/m³ |
| Color: | White, Black, Pink (Anti-Static), Custom Colors | Roll Width: | 1000mm, 1200mm, 1500mm, Custom Width |
| Roll Length: | Up To 200m Per Roll | Temperature Resistance: | -40°C To +130°C |
| Surface Resistivity: | 10⁶ - 10⁹ Ω/sq | Application: | Electronic Component Packaging, ESD Protection, Cushion Pads |
| Highlight: | anti-static foam roll,electronic packaging foam,cross-linked PP foam |
||
Product Description
Anti-Static IXPP Foam Roll for Electronic Packaging
Lightweight Closed Cell Cross-Linked Polypropylene Foam — Superior ESD Protection for Sensitive Components
Product Overview
EKKOFLEX's IXPP (Irradiation Cross-Linked Polypropylene) foam roll is a lightweight closed cell foam material specifically engineered for anti-static electronic packaging protection. Through advanced electron beam irradiation cross-linking technology, the foam achieves a uniform microcellular structure that delivers exceptional cushioning performance while maintaining stable surface resistivity for ESD-sensitive environments.
Unlike traditional PE or PU foams, IXPP foam offers superior thermal stability (up to 130°C), chemical resistance, and dimensional stability, making it the ideal choice for protecting PCBs, semiconductors, LCD panels, and other precision electronic components during shipping and handling.
Key Features
Surface resistivity 10⁶-10⁹ Ω/sq, protects sensitive electronics from electrostatic discharge damage
Non-absorbent microcellular foam provides consistent cushioning without moisture retention
Stable performance from -40°C to +130°C, suitable for global shipping conditions
Density as low as 33 kg/m³ reduces shipping weight and logistics costs significantly
Available in 3mm-8mm thickness, multiple roll widths, die-cutting and lamination services offered
ISO 9001:2015, RoHS, and REACH certified, meeting international compliance standards
Technical Specifications
| Property | Specification |
|---|---|
| Material | IXPP (Irradiation Cross-Linked Polypropylene Foam) |
| Foam Structure | Closed Cell |
| Thickness | 3mm, 4mm, 5mm, 6mm, 8mm (custom available) |
| Density Range | 33 - 200 kg/m³ |
| Roll Width | 1000mm / 1200mm / 1500mm (custom available) |
| Roll Length | Up to 200m per roll |
| Temperature Resistance | -40°C to +130°C |
| Surface Resistivity | 10⁶ - 10⁹ Ω/sq (Anti-Static Grade) |
| Color | White, Black, Pink (Anti-Static), Custom Colors |
| Certification | ISO 9001:2015, RoHS, REACH |
Applications
Why Choose EKKOFLEX IXPP Foam
Specialized in cross-linked polyolefin foam production since 2010
ISO 9001:2015 quality management system with in-house testing laboratory
Tailored density, thickness, color, and anti-static properties to meet your specifications
Reliable logistics network covering North America, Europe, Southeast Asia, and Middle East.
