Black IXPE ESD Foam Anti Static Conductive Closed Cell Polyethylene Foam
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Anti-static IXPE Foam Conductive PE Foam | Material: | Polyethylene Foam |
|---|---|---|---|
| Density: | 20-200kg/m³ | Thickness: | 1mm-100mm |
| Color: | Black,white,red,pink,customized | Cell Structure: | Close Cell |
| Elongation: | 100-210% | Application: | Packaging, Cushioning, And Protection Of Electronic Components |
| Highlight: | reach approved black esd foam,67kg/m3 esd foam tray,45kg/m3 esd foam packaging |
||
Product Description

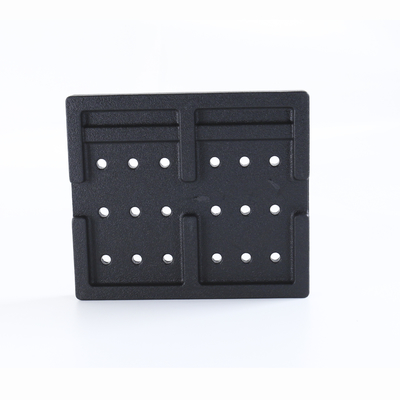

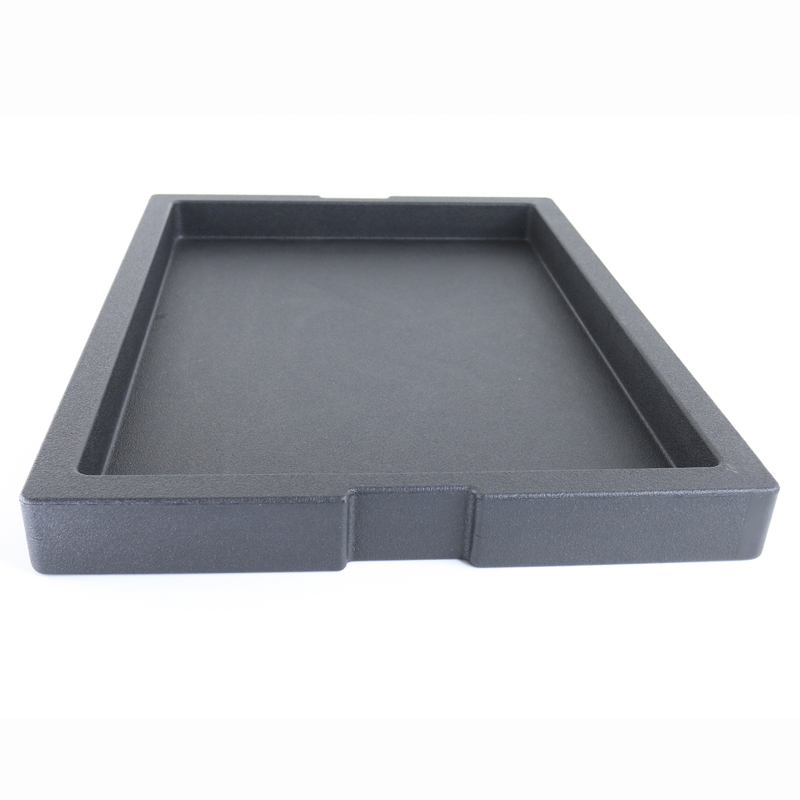

Anti static IXPE foam conductive PE foam for packaging tray
ESD PE Foam, also known as Antistatic polyethylene foam or Anti static IXPE foam, is a permanent antistatic material made from polyethylene with foaming agents and conductive agents. It comes in rolls, sheets, trays, lining, tape, and shock absorbers. Regularly black, odorless, with closed-cell structure and densities of 45kg/m3, 67kg/m3, it meets various anti-static packaging needs.
Advantage of ESD foam: permanent anti-static, environmentally friendly, odorless, glue-free but heat-bonding processing which shows good performance.
Application of ESD foam:Anti-static hollow board turnover box / tray, anti-static plastic turnover box / tray, anti-static card board, anti-static tool board, anti-static table / table pad, anti-static protective film / bag, etc.
Type of ESD foam:ESD IXPE,ESD XPE,ESD PU,ESD EVA
Specification:
|
ESD IXPE&XPE Foam |
||||
|
Property |
Standard |
Unit |
Value |
|
|
Density |
- |
Kg/m³ |
40.00-50 |
|
|
|
|
|
|
|
|
Tensile Strength |
Transverse |
ISO-1798 |
MPa |
0.15~0.18 |
|
Longitudinal |
0.16~0.19 |
|||
|
Elongation |
Transverse |
ISO-1798 |
% |
90.50~100.20 |
|
Longitudinal |
90.60~100.20 |
|||
|
Tearing Strength |
Transverse |
ISO-8067
|
Kn/m |
0.9~1.0 |
|
Longitudinal |
0.95~1.05 |
|||
|
Operating Temperature Range |
Internal |
°C |
(-40,+80) |
|
|
Water Absorption % Volume (Maximum) |
Internal |
% |
0.50 |
|
|
Volume resistance |
SJ/T10694-2006 |
Ώ |
103--106(Conductive), 106—109(Anti Static) |
|
|
Surface resistance |
SJ/T10694-2006 |
Ώ |
103--106(Conductive), 106—109(Anti Static) |
|
|
Friction Voltage |
SJ/T10694-2006 |
V |
＜100v |
|
|
Static decay period |
GJN3007A-2006 |
S |
0.2S |
|
Additional Information:
Conductive and anti-static performance are permanent , not affected by ambient temperature and humidity
FAQ:
Q1:What about our service?
1).After sale service
2).On time delivery
3).In time reply
Q2:When could I get the quotation?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email.
Q3:What is the thickness tolerance?
It depends on the density and thickness.
Q4:What is the working temperature of the foam?
Maximum continuous operating temperature of PE foam is between -40°C to 80°C.
