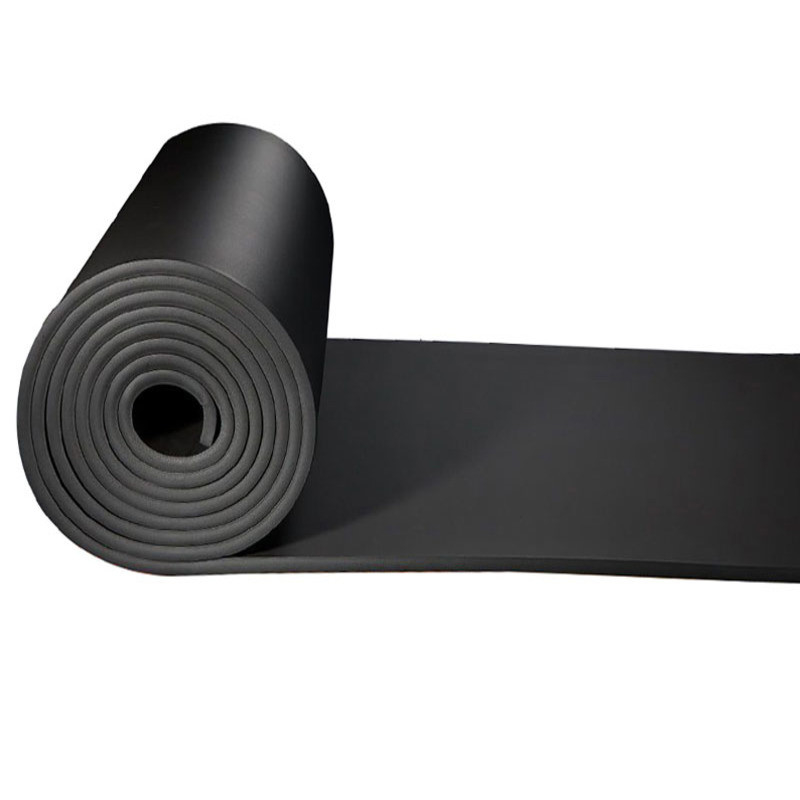

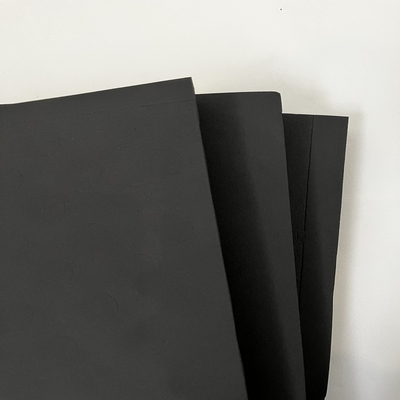

Oil Resistance 1Mx2M EPDM Foam Rubber Closed Cell Open Cell High Density Foam Sheet
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.8-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | EPDM Rubber Foam Sheet Strip Roll | Material: | Ethylene-Propylene-Diene Monome |
|---|---|---|---|
| Cell Structure: | Close Cell EPDM Foam And Open Cell EPDM Foam | Density (Closed Cell): | 110-150kg/m³ |
| Density(Open Cell): | 95-100kg/m³ | Thickness: | 1-50mm |
| Color: | Black | Shore Hardness: | 8-25° |
| Feature: | Heat Resistance Anti-collision Sound Insulation | Application: | Sealing, Gasket, Packing, Automotive, Electronic, Household Machine |
| Highlight: | 1Mx2M epdm sponge sheet,oil resistance epdm foam rubber,rohs approved open cell epdm foam |
||
Product Description
Oil Resistance 1M*2M EPDM Foam Rubber Closed Cell Open Cell High DensityFoam Sheet
Rubber Foam refers to rubber that has been manufactured with a foaming agent to create an air-filled matrix structure.
The main physical properties of foam rubber are generalized as being ‘Lightweight, buoyant, cushioning performance, thermal and acoustic insulation, impact damping, and cost reduction
- EPDM Rubber Foam
- NBR Rubber Foam
- CR Rubber Foam
Specification:
EPDM(Closed cell)Physical Properties:
The internal cells of EPDM closed cell pore foam material are separated by cell wall membranes, they don’t link together,belonging to independent cell structure, and mainly are the smaller bubble hole shape or extremely small micropore.
Excellent property of resistance to oil-induced degradation or thermal aging, widely used in electronics,automobile,home appliance and aerospace industry as gasket,shock/vibration absorber,sound proofing materials.
| Name&Model | Color | Density (kg/m³) |
Hardness (Shore C°) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-9016 | Black | 190±15 | 25°±5 | ≥500 | ≥130 | ≤40 | ≥3.0 | 950*1900*40 | |
| EPDM-9015 | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤45 | ≥2.0 | 1000*2000*50 | |
| EPDM-9010 | Black | 130±15 | 10°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-9008 | Black | 110±15 | 8°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-WS | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤40 | ≥2.0 | 1000*2000*50 | Sulfur free |
| EPDM-GBZ | Black | 250-500 | 30°-50° | ≥800 | ≥130 | ≤20 | ≥5.0 | 900*1800*35 | High density |
| EPDM-GYD | Black | 600-700 | 50°-75° | ≥1200 | ≥90 | ≤10 | ≥8.0 | 600*1200*30 | High hardness |
| EPDM-SMP | Black | 300±25 | 18°±5 | ≥500 | ≥150 | ≤25 | ≥2.0 | 400*500*568 | Double sided crust |
EPDM (Open cell) Physical Property:
The Internal cells of EPDM open cell pore foam material are link together with each other and also link with the outer skin,
belongs to non-independent cell structure, and mainly are larger bubble holes or rough holes.
| Name&Model | Color | Density (kg/m³) |
Tensile Strength (Kpa) |
Elongation (%) |
Compression Deformation (%) |
Tear Strength (kn/m) |
Size(mm) | Remarks |
| EPDM-10 | Black/Red/White | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | |
| EPDM-10Z | Black/Red | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | Fire retardant |
| EPDM-20 | Black | 85±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*30 |
The difference between EPDM ,NBR and CR rubber foam:
| Comparison of rubber foam performance parameters | |||
|
Performance |
EPDM Rubber Foam |
NBR Rubber Foam |
CR Rubber Foam |
|
Aging resistance |
good |
poor |
good |
|
electrical insulation |
very good |
poor |
poor |
|
preservative |
good |
general |
good |
|
Impact elasticity |
good |
general |
-- |
|
Adhesion properties |
poor |
good |
-- |
|
Oil resistance |
no |
very good |
good |
|
Wear resistance |
good |
good |
-- |
|
Heat resistance |
very good |
good |
good |
|
Cold resistance |
very good |
poor |
poor |
|
Ozone resistance |
good |
-- |
good |
|
Weather resistance |
very good |
general |
very good |
|
Flame resistance |
no |
-- |
good |
|
Acid resistance |
good |
good |
general |
|
Alkali resistance |
good |
good |
good |
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q3:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
