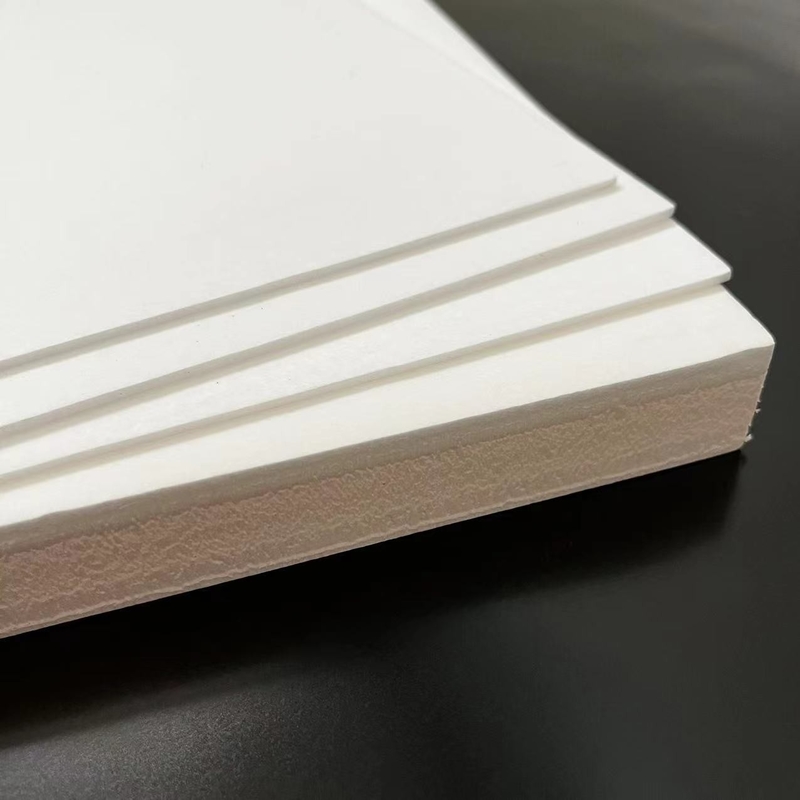

White MPP Foam Non Crosslinked New Material In Sheet For New Energy Battery
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.35-0.84/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | White MPP Foam Non Crosslinked New Material In Sheet For New Energy Battery | Matrial: | Polypropylene Microcellular Foam |
|---|---|---|---|
| Density: | 38-85kg/m³ | Thickness: | 0.5-30mm |
| Color: | White | Cell Structure: | Non-crosslinked |
| Hardness: | 59-79 Shore C | Foam Principle: | Supercritical Carbon Dioxide Technology |
| Highlight: | mpp foam non crosslinked,non crosslinked mpp porous foam |
||
Product Description
White MPP Foam Non crosslinked New Material In Sheet For New Energy Battery
Green foaming process:Supercritical CO2 instead of traditional foam agent
A large number of micron bubbles are formed in the polymer material
Foam density:25kg/m3 to 100kg/m3,thickness more than 30mm;
Supercritical CO2 molding foam technology can be used in many types of polymer, such as PP,POE,TPE,PA6 and so on
Our current lightweight foam materials:MPP,MTPU,M-PVDF:
1)All supercritical physical foaming, environmental protection without odor;
2) No chemical residue
3) Closed cell structure,exquisite cells, nanoscale aperture diameter
4) Light weight, high strength, high elasticity, excellent mechanical properties;
5) Non crosslinked, can be recyclable.
Specification:
| MPP-10 | MPP-15 | MPP-25 |
|---|---|---|---|
Density (kg/m³) | 85±15 | 59±11 | 38±8 |
Hardness (°) | 79±5 | 70±5 | 59±7 |
Compression Strength | 10%:0.26~0.78 | 10%:0.24~0.66 | 10%:0.08~0.27 |
Tensile Strength(Mpa) | ≥3.5 | ≥2.5 | ≥1.5 |
Shear Strength(Mpa) | ≥2 | ≥1.6 | ≥1.1 |
Thermal Comductvity | 0.04 | 0.04 | 0.04 |
Temperature Humidity Bias Test (85℃/85%RH 1000H) | The performance keep the same | ||
Insulation Resistance | ≥500MΩ,Leakage of electricity＜1mA | ||
Resilience | ≥30% | ||
Application:
Power battery cushion
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q3:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
