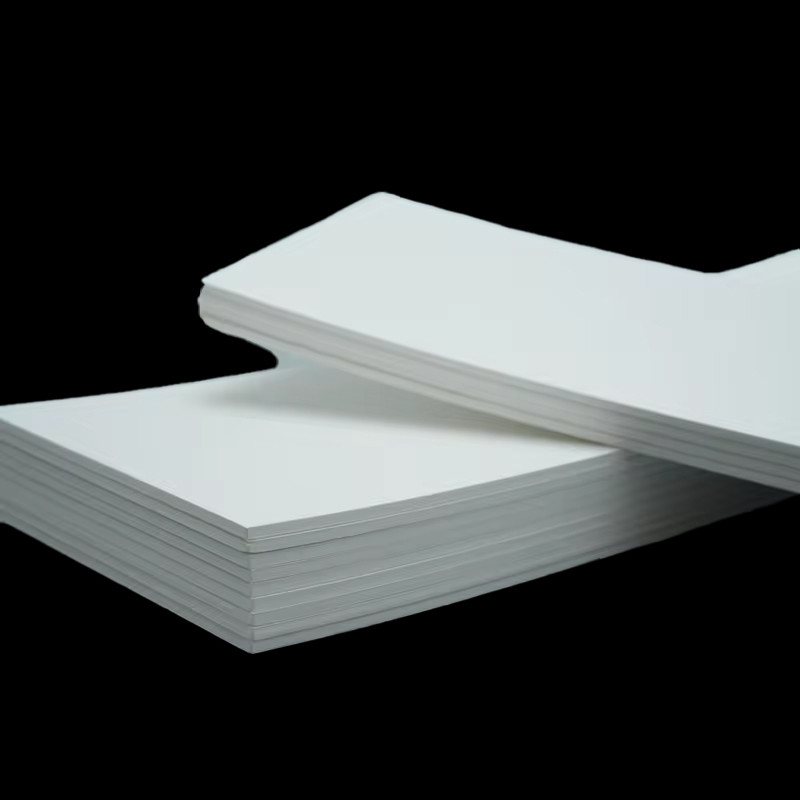

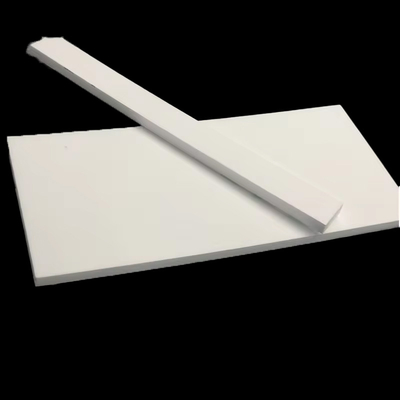

Chemical Resistance CO2 Foaming Porous MPP Sheet Foam For Semiconductor

Chemical Resistance CO2 Foaming Porous MPP Sheet Foam For Semiconductor

Product Details:

Place of Origin: Made In China
Brand Name: EkkoFlex
Certification: ROHS,REACH

Payment & Shipping Terms:

Minimum Order Quantity: 3000㎡
Price: $0.35-0.84/㎡
Packaging Details: poly bag or customized
Delivery Time: 7-14 work days
Payment Terms: T/T, L/C
Supply Ability: 1000000m per month
Get Best Price Contact Now

Detail Information

Product Name: Chemical Resistance CO2 Foaming Porous MPP Foam For Semiconductor Martrial: Microcellular High- Strength PP Foams
Density: 38-85kg/m³ Thickness: 0.5-30mm
Foam Principle: Supercritical Carbon Dioxide Technology Cell Structure: Non-crosslinked
Application: Battery Buffers Advantage: Light,Zero VOC
Highlight:

chemical resistance mpp porous foam

,

chemical resistance mpp porous foam

,

mpp porous foam for semiconductor

Product Description

Chemical Resistance CO2 Foaming Porous MPP Foam For Semiconductor

Green foaming process:Supercritical CO2 instead of traditional foam agent
A large number of micron bubbles are formed in the polymer material
Foam density:25kg/m3 to 100kg/m3,thickness more than 30mm;
Supercritical CO2 molding foam technology can be used in many types of polymer, such as PP,TPU,PVDF so on



Functions of MPP:
(1) Scalable deformation, compensation for
assembly tolerances, providing preload
(1) UL94 HF-1 Flame-retardant
(2) Resistance to electrolyte corrosion
(3) Withstanding voltage breakdown


Chemical Resistance CO2 Foaming Porous MPP Sheet Foam For Semiconductor 0



Specification:



Test Item Test Method Unit Typical Values
Density ISO 845:2006 Kg/m³ 30-100
Hot Deformation Temperature ISO 75-2 120
Thermal Conductivity GB/T 10294-2008 W/(m*k) 0.04
Water Absorption CNS2536-1990 THE 3RD, 10TH SECTION % <0.10
Chemical Resistance / / Resistant to strong acids and alkalis





MPP-10

MPP-15

MPP-25

Density (kg/m³)

85±15

59±11

38±8

Hardness (°)

79±5

70±5

59±7

Compression Strength
(MPa)

10%:0.26~0.78
50%:0.56~1.24
70%:0.80~1.72

10%:0.24~0.66
50%:0.40~0.90
70%:0.58~1.60

10%:0.08~0.27
50%:0.24~0.51
70%:0.38~0.76

Tensile Strength(Mpa)

≥3.5

≥2.5

≥1.5

Shear Strength(Mpa)

≥2

≥1.6

≥1.1

Thermal Comductvity
(w/m.k)

0.04

0.04

0.04

Temperature Humidity Bias Test (85℃/85%RH 1000H)

The performance keep the same

Insulation Resistance

≥500MΩ,Leakage of electricity<1mA

Resilience

≥30%
GB/T 1685, compression 50% keep 30days




Application:

Chemical Resistance CO2 Foaming Porous MPP Sheet Foam For Semiconductor 1



                                                                 Power battery cushion



Chemical Resistance CO2 Foaming Porous MPP Sheet Foam For Semiconductor 2Chemical Resistance CO2 Foaming Porous MPP Sheet Foam For Semiconductor 3

                           5G                                                                                panel packing





FAQ:

Q1:How about delivery time?
Normally our delivery time is about 15-20 days after confirm your deposit.


Q2:Is sample free?
Yes,we can offer free samples by small pieces.

Q3:How many kinds of foam could you provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam,,ESD foam,EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and PE foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
