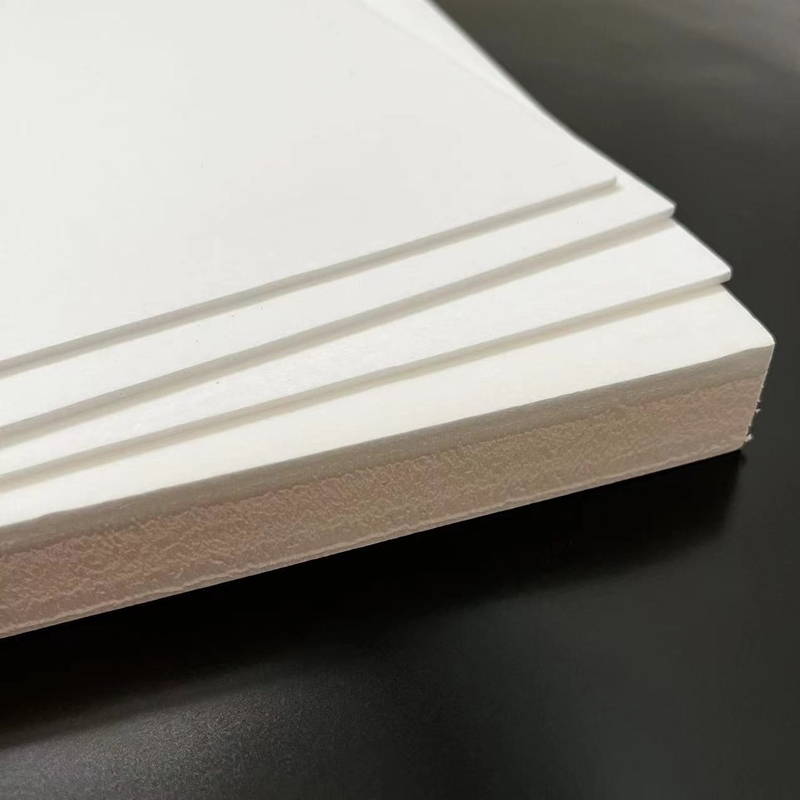

Shock Absorption Co2 Foaming MPP Sheet Foam Zero VOC White For Slippers
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.35-0.84/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Shock Absorption Co2 Foaming MPP Sheet Zero VOC White For Slippers | Matrial: | Microcellular High- Strength PP Foams |
|---|---|---|---|
| Density: | 38-85kg/m³ | Foam Principle: | Supercritical Carbon Dioxide Technology |
| Shore Hardness: | 59-79 Shore C | Cell Structure: | Non-crosslinked |
| Application: | Radomes For 5G Communication | Advantage: | 100% Recyclable |
| Highlight: | shock absorption mpp sheet foam,mpp sheet foam for slippers |
||
Product Description
Shock Absorption Co2 Foaming MPP Sheet Zero VOC White For Slippers
Our current lightweight foam materials:MPP,MTPU,M-PVDF:
All supercritical physical foaming, environmental protection without odor;
2) No chemical residue
3) Closed cell structure,exquisite cells, nanoscale aperture diameter
4) Light weight, high strength, high elasticity, excellent mechanical properties;
5) Non crosslinked, can be recyclable.
MPP Properties:
Low dielectric constant and dielectric loss meeting the
demand of microwave transmission
Lightweight and high-strength, wind resistance
Water-resistant, not hanging water on the surface
therefore not affecting the wave transmission
Anti-photooxidative aging, 10-year lifespan
Specification:
| Test Item | Test Method | Unit | Typical Values |
| Density | ISO 845:2006 | Kg/m³ | 30-100 |
| Hot Deformation Temperature | ISO 75-2 | ℃ | 120 |
| Thermal Conductivity | GB/T 10294-2008 | W/(m*k) | 0.04 |
| Water Absorption | CNS2536-1990 THE 3RD, 10TH SECTION | % | ＜0.10 |
| Chemical Resistance | / | / | Resistant to strong acids and alkalis |
|
|
MPP-10 |
MPP-15 |
MPP-25 |
|
Density (kg/m³) |
85±15 |
59±11 |
38±8 |
|
Hardness (°) |
79±5 |
70±5 |
59±7 |
|
Compression Strength |
10%:0.26~0.78 |
10%:0.24~0.66 |
10%:0.08~0.27 |
|
Tensile Strength(Mpa) |
≥3.5 |
≥2.5 |
≥1.5 |
|
Shear Strength(Mpa) |
≥2 |
≥1.6 |
≥1.1 |
|
Thermal Comductvity |
0.04 |
0.04 |
0.04 |
|
Temperature Humidity Bias Test (85℃/85%RH 1000H) |
The performance keep the same |
||
|
Insulation Resistance |
≥500MΩ,Leakage of electricity＜1mA |
||
|
Resilience |
≥30% |
||
Application:
Power battery cushion
5G panel packing
FAQ:
Q1:Do you have design services?
Yes, we have R & D department,we can develop new design as required.
Q2:For the afer-sale service, how to solve the problem of your overseas customer in time?
The warranty of our products is one year.If our products or packing exist quality problem,we will replace or compensate accordingly
Q3:How many kinds of foam could you provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam,,ESD foam,EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and PE foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
Q4:Can we have logo on the foam?
Yes ,please send us your logo artwork so we can recommend the best solution.
