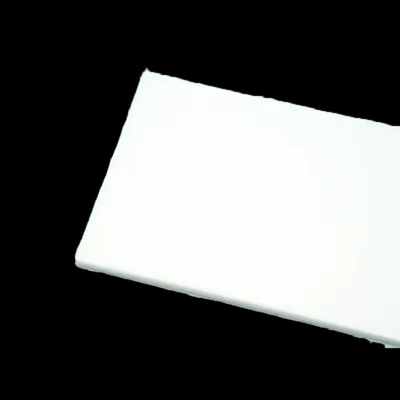

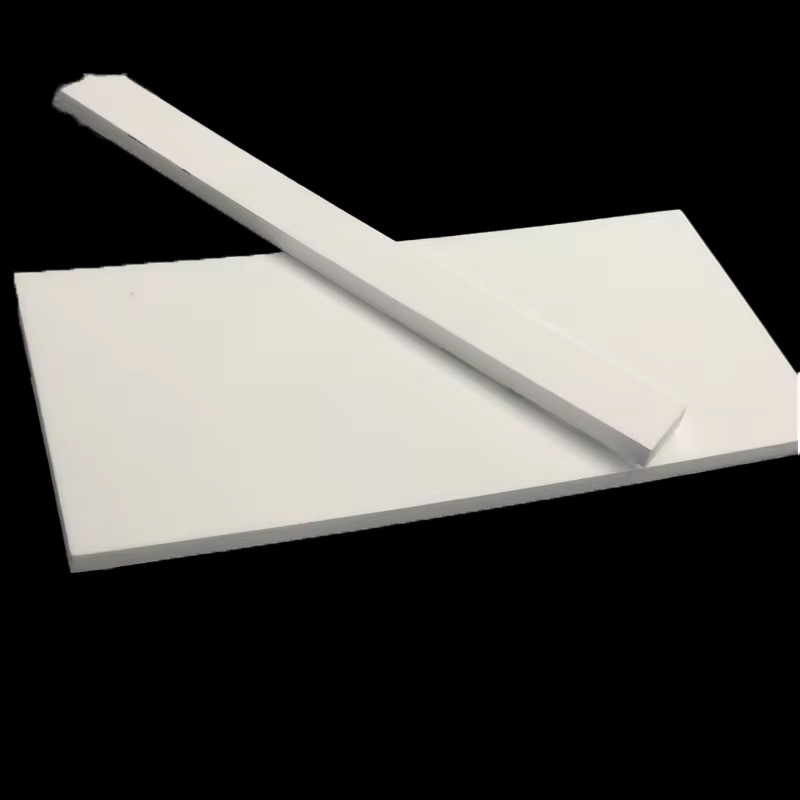

100% Recyclable Foamed PP Material Waterproof MPP Foaming Sheet For Backpack
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.35-0.84/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 100% Recyclable Foamed PP Material Waterproof MPP Foaming Sheet For Backpack | Matrial: | Microcellular High Strength PP Foams |
|---|---|---|---|
| Density: | 38-85kg/m³ | Thickness: | 0.5-30mm |
| Color: | White | Cell Structure: | Non-crosslinked |
| Application: | Radomes For 5G Communication | Advantage: | 100% Recyclable |
| Highlight: | backpack material mpp foaming sheet,backpack material mpp porous foam |
||
Product Description
100% Recyclable Foamed PP Material Waterproof MPP Foaming Sheet For Backpack
Microcellular Polypropylene foam is a porous foam made from a polypropylene base material with a large number of micron-sized bubbles formed in it by clean supercritical carbon dioxide technology
Functions of MPP:
(1) Scalable deformation, compensation for
assembly tolerances, providing preload
(1) UL94 HF-1 Flame-retardant
(2) Resistance to electrolyte corrosion
(3) Withstanding voltage breakdown
Specification:
| Test Item | Test Method | Unit | Typical Values |
| Density | ISO 845:2006 | Kg/m³ | 30-100 |
| Hot Deformation Temperature | ISO 75-2 | ℃ | 120 |
| Thermal Conductivity | GB/T 10294-2008 | W/(m*k) | 0.04 |
| Water Absorption | CNS2536-1990 THE 3RD, 10TH SECTION | % | ＜0.10 |
| Chemical Resistance | / | / | Resistant to strong acids and alkalis |
|
|
MPP-10 |
MPP-15 |
MPP-25 |
|
Density (kg/m³) |
85±15 |
59±11 |
38±8 |
|
Hardness (°) |
79±5 |
70±5 |
59±7 |
|
Compression Strength |
10%:0.26~0.78 |
10%:0.24~0.66 |
10%:0.08~0.27 |
|
Tensile Strength(Mpa) |
≥3.5 |
≥2.5 |
≥1.5 |
|
Shear Strength(Mpa) |
≥2 |
≥1.6 |
≥1.1 |
|
Thermal Comductvity |
0.04 |
0.04 |
0.04 |
|
Temperature Humidity Bias Test (85℃/85%RH 1000H) |
The performance keep the same |
||
|
Insulation Resistance |
≥500MΩ,Leakage of electricity＜1mA |
||
|
Resilience |
≥30% |
||
Application:
Power battery cushion
5G panel packing
FAQ:
Q1:How about delivery time?
Normally our delivery time is about 15-20 days after confirm your deposit.
Q2:For the afer-sale service, how to solve the problem of your overseas customer in time?
The warranty of our products is one year.If our products or packing exist quality problem,we will replace or compensate accordingly
Q3:How many kinds of foam could you provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam,,ESD foam,EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and PE foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
