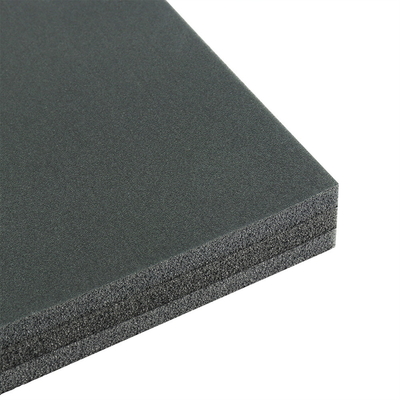

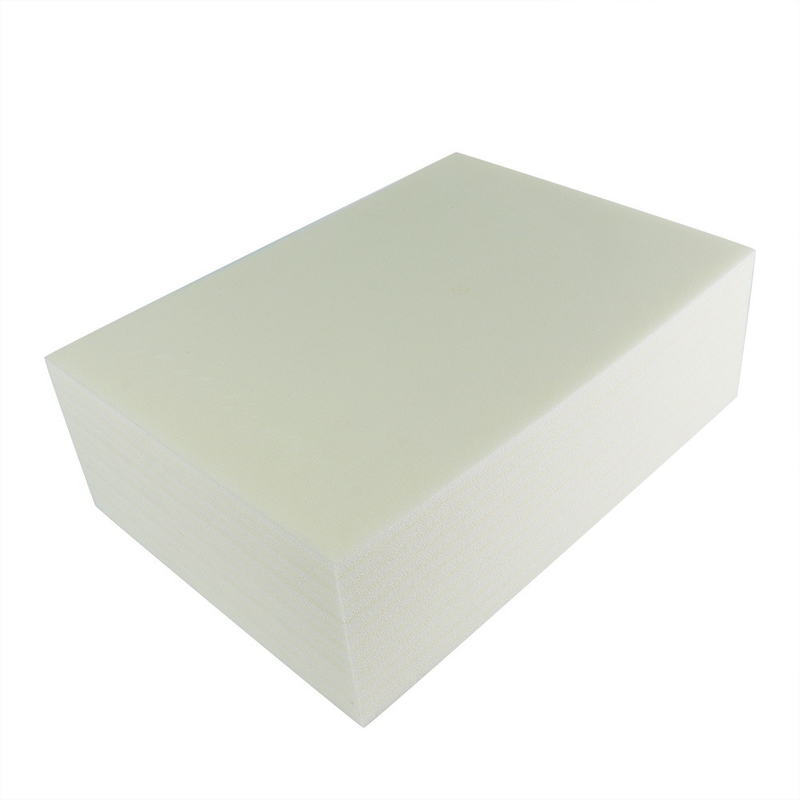

White Black XPE Foam Board Polyethylene Foam Blocks For Automotive
Product Details:
| Place of Origin: | Made in china |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.18-1.89/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | White And Black Foam XLPE Material Polyethylene XPE Foam For Automotive | Material: | Cross-linked Polyethylene Foam |
|---|---|---|---|
| Density: | 28~200kg/m³ | Thermal Conductivity: | 0.038-0.092W/m·K |
| Temperature Resistance: | -40℃ To 80℃ | Flammability: | B1 Grade |
| Uv Resistance: | Good | Production Process: | Compounding-extrusion-foaming |
| Highlight: | Uv Resistance xpe foam board,oem Cross linked Polyethylene Foam,rohs approved polyethylene foam blocks |
||
Product Description
White And Black Foam XLPE Material Polyethylene XPE Foam For Automotive
PE foam Is a kind of widely used,the superior performance of foam plastic.
The product is LDPE (low density polyethylene) as the main material,through DCP (cross-linking agent) bridge,adopting AC (azo type foaming agent) foaming of new material.
In the process of production can lead to add other material modification.
Specifications:
| XLPE Foam Physical Properties | |||||||||
| Test Item | 5 Times | 8 Times | 10 Times | 15 Times | 20 Times | 25 Times | 30 Times | 35 Times | |
| Density(kg/m³) | 200±30 | 125±15 | 100±10 | 66.7±8 | 50±6 | 40±4 | 33.3±3 | 28.6±2 | |
| Shore Hardness(°) | 60-70 | 50-60 | 45-50 | 35-45 | 30-35 | 25-30 | 18-25 | 13-18 | |
| Tensile Strength(Mpa) | TD | ≥1.3 | ≥0.9 | ≥0.7 | ≥0.5 | ≥0.35 | ≥0.3 | ≥0.2 | ≥0.15 |
| MD | ≥1.5 | ≥1.0 | ≥0.8 | ≥0.6 | ≥0.38 | ≥0.35 | ≥2.5 | ≥0.2 | |
| Elogation(%) | TD | ≥130 | ≥125 | ≥110 | ≥100 | ≥80 | ≥80 | ≥80 | ≥70 |
| MD | ≥150 | ≥125 | ≥120 | ≥110 | ≥90 | ≥90 | ≥90 | ≥80 | |
| Tearing Strength(KN/m) | TD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.5 | ≥1.3 |
| MD | ≥9 | ≥8 | ≥6 | ≥4 | ≥2.5 | ≥2 | ≥1.2 | ≥1.2 | |
| Compressed Distortions(% 23℃+2℃6,22h) | ≤2 | ≤3 | ≤5 | ≤7 | ≤8 | ≤9 | ≤10 | ≤11 | |
| Dimension Change (% 70℃+2℃,22h) |
TD | ≤-4 | ≤-4 | ≤-4 | ≤-4 | ≤-6 | ≤-6 | ≤-6 | ≤-6 |
| MD | ≤-6 | ≤-6 | ≤-6 | ≤-6 | ≤-8 | ≤-8 | ≤-8 | ≤-8 | |
| Water Absorbtion (g/cm2)23℃+2℃,24h | ≤0.02 | ≤0.02 | ≤0.03 | ≤0.03 | ≤0.04 | ≤0.04 | ≤0.05 | ≤0.05 | |
| Thermal Conductivity(w/mk) | ≤0.092 | ≤0.082 | ≤0.072 | ≤0.062 | ≤0.053 | ≤0.047 | ≤0.041 | ≤0.038 | |
The difference between XPE foam and IXPE foam
|
IXPE foam Physical crosslinked polyethylene foam or Irradiation crosslinked polyethylene foam Material PE--Extrusion--Vertical foaming--IXPE foam |
XPE foam Chemically crosslinked polyethylene foam Material PE--Extrusion--Horizontal foaming--XPE foam |
|
|---|---|---|
|
Full name |
||
|
Production |
||
|
Difference |
Compared with XPE foam, IXPE foam has more delicate cellular,more smooth and flat surface,more excellent mechanical performance |
|
|
Color |
Black ,White,Grey and customization |
|
|
Density |
25-200kg/m3 |
|
|
Thickness |
3-15mm(single layer) to 100mm(multilayer) |
0.5-12mm(single layer) to 100mm(multilayer) |
|
Material |
LDPE(Low density polyethylene) |
|
|
Length |
No limited |
|
|
Width |
300-1800mm |
|
|
Supplied form |
Foam roll, Foam sheet, Foam block, ESD PE foam, PE foam with adhesive, PE foam with aluminum foil |
|
|
Optional service |
Laminating, Cutting and Adhesive coated |
|
|
Application |
HVAC system&Airconditioning,Packaging, Building&construction,Sports&Leisure, |
Foam tape,Floor underlayment,Sports&Leisure |
Applications:
Pool Cover Air Conditioning Tube
FAQ:
Q1:What's the difference between open and closed cell foam?
Insulation foam is referred to open cell or closed cell because of the difference between the small bubbles (cells) that make up the foam. The cells are pressed together, so air and moisture are unable to get inside the foam. Because of this,closed cell foam is much more rigid and stable than open cell foam.
Q2:How about the delivery cost and tax cost?
Delivery cost is depend on the way, destination and weight.
And tax is depend on customer’s local customs.
Q3:Why choose you?
Our Foam is in Sheet, Roll, and customed shape ,
The Thickness Single layer 0.15-15mm,
Max Width 1.6meter Can Be Cut By Customers’ Requirement.
Packaging Polybag Lead Time 3 Days For Sampling, 15 Days For Production.
No MOQ For Stock, 3000 Meter For Customized Product.
