Black ESD PU Foam Sheet Anti Static Conductive Polyurethane Foam For Protective Packing
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH,UL-94 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.16-3.61/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Electrostatic Discharge Foam | Material: | PE Foam,EVA Foam,EPE Foam,PU Foam,Hollow Board, PP Corrugated Box |
|---|---|---|---|
| Density: | 20-200kg/m³ | Service: | OEM ODM |
| Color: | Black | Type: | Anti-static Foam,ESD Conductive Foam,ESD Tray Products |
| Surface Resistivity: | 10^3 - 10^11 Ω | Feature: | Conductive,Anti-static |
| Highlight: | esd protection conductive polyurethane foam,anti static polyurethane foam odm,custom thickness conductive polyurethane foam |
||
Product Description

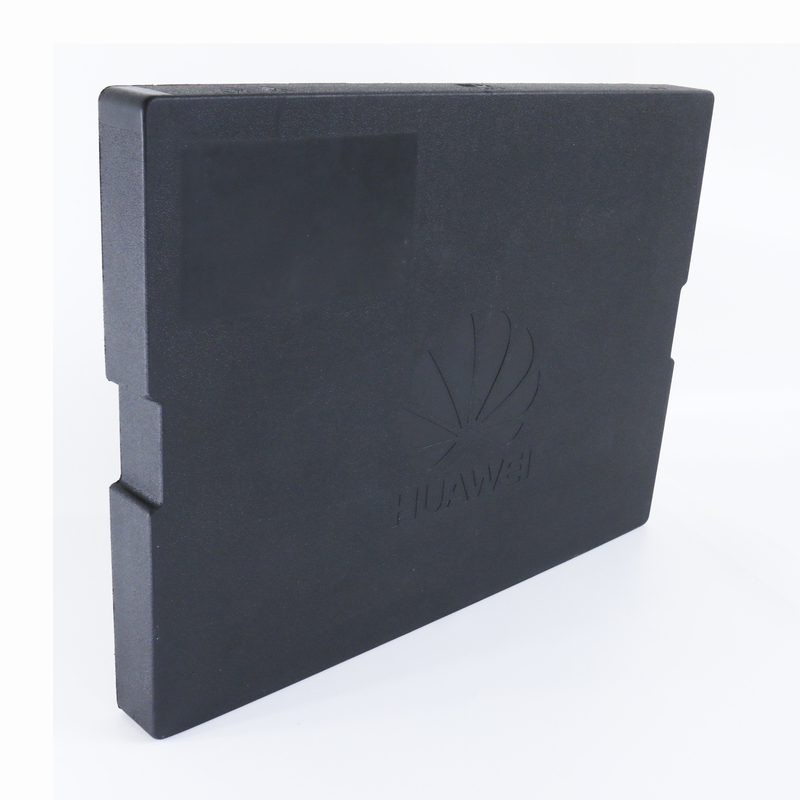

Black ESD PU Foam Sheet Anti Static Polyurethane Foam For Protective Packing
ESD Foam, also known as anti static Foam, is a versatile foam material that can be used for ESD protection and packaging of electrostatic-sensitive device that meets a variety of requirements.
ESD foam is classified into different types based on resistance, including antistatic foam, conductive foam, and static dissipative foam. It is offered in the form of foam rolls, anti-static foam sheets, foam blocks, ESD foam inserts, foam padding, plank foam, and various foam shapes to accommodate diverse packaging needs.
Specification:
Types of ESD foam:
|
Anti-Static foam types |
Ordinal ESD Foam Features |
Foam Shape |
ESD Type |
Odor |
|
ESD PE Foam
|
Single Thickness: 0.5-7mm |
Roll / Sheet / Tray |
Permanently |
No Odor |
|
Laminated :100mm |
|
|
|
|
|
Color: Black |
|
|
|
|
|
ESD EVA Foam
|
Single Thickness: 0.5-70mm |
Sheet / Block/ Tray |
Permanently |
—– |
|
Laminated :100mm |
|
|
|
|
|
Color: Black/Blue/Red |
|
|
|
|
|
ESD EPE Foam
|
Single Thickness: 3-50mm |
Sheet / Tray/ Insert |
Around 6 Months |
No Odor |
|
Laminated :100mm |
|
|
|
|
|
Color: Black,Pink, Red |
|
|
|
|
|
ESD PU foam
|
Single Thickness: 3-40mm |
Sheet/ Block/ Tray |
Around 6 Months |
——– |
|
Laminated :100mm |
|
|
|
|
|
Color: Pink , Black |
|
|
|

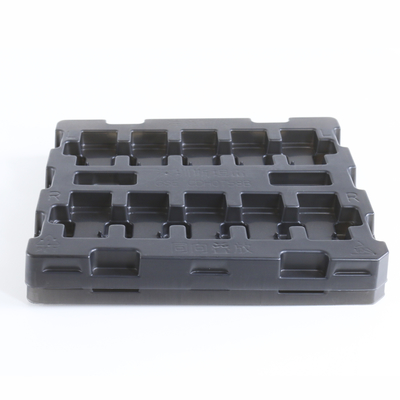

Types of ESD Tray:
|
Item |
Foam Tray |
Blister Tray |
PP Injection molded Tray |
Corrugated Tray |
Foam Injection Molded Tray |
|
Material |
PU/PE/EVA/EPE |
PP/PS/PET |
PP |
PP |
PP |
|
Color |
Black/Pink/Red |
Black/Transparent |
Black |
Black |
Black |
|
Conductive Value |
10^3-10^5 |
10^3-10^5 |
10^4-10^9 |
10^3-10^5 |
10^5-10^8 |
|
ESD Value |
10^6-10^9 |
10^6-10^9 |
10^6-10^9 |
||
|
Customize |
Yes |
Yes |
Yes |
Yes |
Yes |
|
low cost |
Medium Cost |
High cost |
Low cost |
High cost |
FAQ:
Q1:How does the foam to be anti-static?
1)Adding antistatic agent
2)External coating anti-static liquid
The above two ways are most commonly used in the foam factory to make the foam to be anti-static, through these two methods can produce an effective anti-static packaging products for the electronics field.
Q2:Why do electronics need ESD packaging?
Electrostatic discharge (ESD) refers to the flow of electricity between two electrically charged objects. When static electricity builds up, it can damage sensitive electronic devices.
Q3:Waht ESD trays could we provide?
ESD PE foam tray, ESD EVA foam tray, ESD EPE foam tray,ESD PU foam tray,ESD PP box,ESD corrugare box ,ESD Blister tray ESD PCB Rack
