0.12g/cm3 Density Porous Foam MTPU Mat Extra Light ScCO2 Foaming For Mattresses
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 0.12g/Cm3 Density Porous Foam MTPU Mat Extra Light ScCO2 Foaming For Mattresses | Material: | Microcellular TPU Foam |
|---|---|---|---|
| Thickness: | 0.6-30mm | Structure: | Close Cell Foam |
| Density: | 0.12-0.22g/cm³ | Hardness: | 23-34 Shore C |
| Advantage: | High Tensile Strength,Zero VOC | Application: | Marathon Running Shoes Midsole |
| Highlight: | 0.12g/cm3 density mtpu porous foam,Zero VOC microcellular TPU foam |
||
Product Description

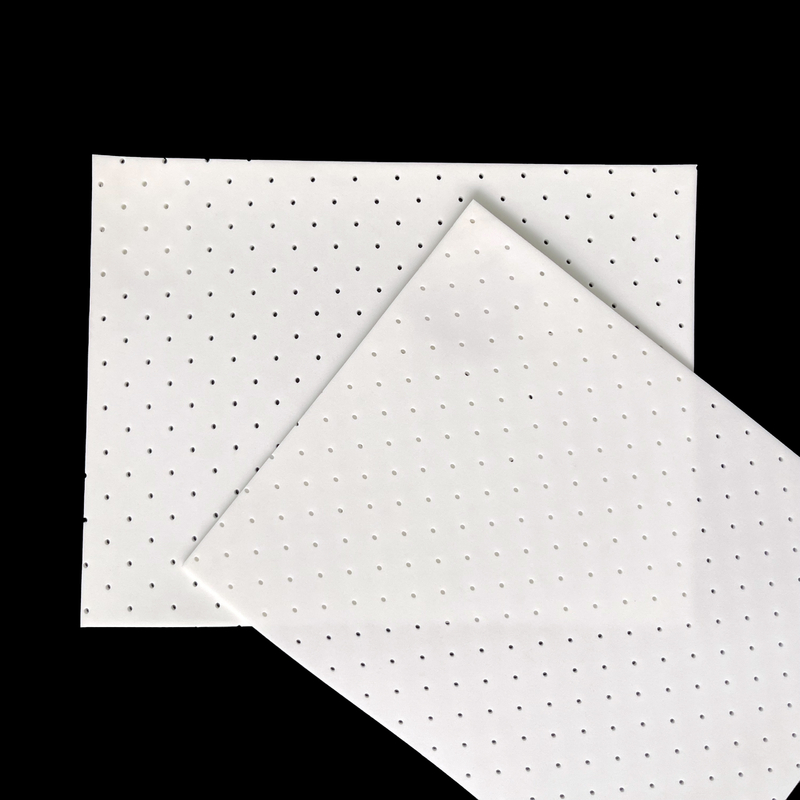

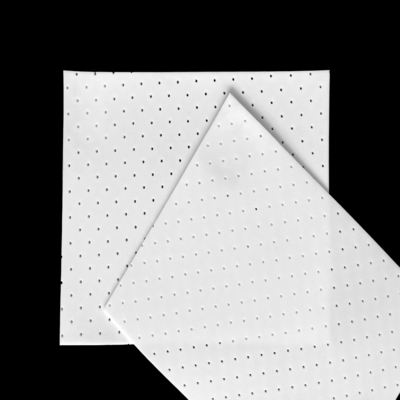

0.12g/Cm3 Density Porous Foam MTPU Mat Extra Light ScCO2 Foaming For Mattresses
MTPU is microcellular TPU foam, produced using thermoplastic polyurethane (TPU) as the composition with clean supercritical carbon dioxide as blowing agent to form a large number of microcells in the matrix
Specification:
|
Product name |
White Black TPU Foam CO2 Foaming MTPU New Foam Materia |
|
Color |
White,Black |
|
Density |
0.12~0.18g/cm³ |
|
Thickness |
0.5-30mm |
|
Width |
1.4-1.45m |
|
Surface |
Perforated foamed sheet, Non-perforated foamed sheet |
|
Foaming principle |
Supercritical Carbon Dioxide Technology |
|
Advantage |
Light, Excellent elasticity, High tensile strength,Zero VOC, 100% recyclable, Soft fell, Water resistance |
|
Specification |
1mm*1400mm*20m; 2*1250*1950mm;3*1200*1900mm |
|
Application |
Insoles, Yoga mat, Camera, Garment lettering film, Clothing lining, bags lining, shoes lining,Soles,Protective gear |
|
Test Items |
M-TPU12 |
M-TPU16 |
M-TPU20 |
|
Density |
0.12±0.015 |
0.14~0.18 |
0.18~0.22 |
|
Hardness |
23±3 |
27 |
34 |
|
Tensile Strength |
1.4 |
4 |
4.4 |
|
Elongation at Break |
130 |
320 |
360 |
|
Method A Tear Trouser Test |
20 |
42 |
52 |
|
Method B Tear AngleTest |
90 |
96 |
110 |
|
Ball Resilience |
≥65 |
68 |
66 |
|
Compression Set |
26 |
25 |
23 |
|
Sun Test |
/ |
4 |
4 |
Application:
Fitness Mat Sockliner
FAQ:
Q1:What supercritical dioxide Co2 foam could we provide?
MTPU foam,MPP foam, M-PVDF foam
Q2:.Can we have logo on the foam?
Yes ,please send us your logo artwork so we can recommend the best solution.
Q3:.How long you could prepare samples?
Normally 3days if we have the sample in hand. If customized one, about a week around.
