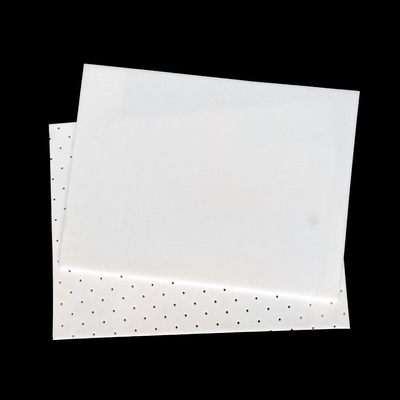

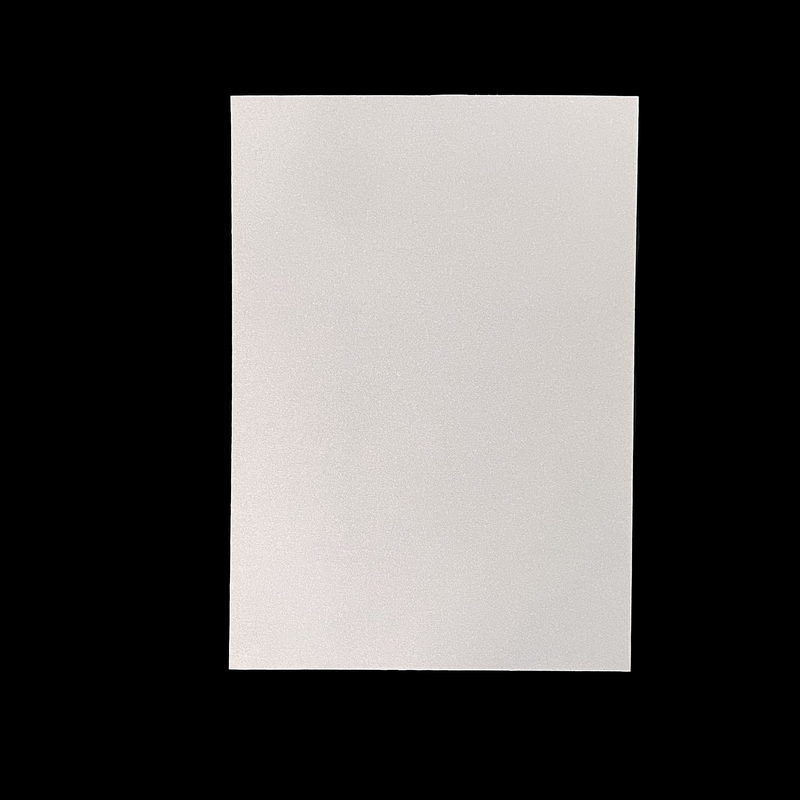

White 2mm Thick No Chemical Blowing Agent MTPU Foaming Sheet For Shoes Lining
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | White 2mm Thick No Chemical Blowing Agent MTPU Foaming Sheet For Shoes Lining | Material: | Microcellular Thermoplastic Elastomers-MTPU |
|---|---|---|---|
| Density: | 0.12-0.22g/cm³ | Structure: | Non- Crosslinked,close Cell Foam |
| Surface: | Perforated Foamed Sheet, Non-perforated Foamed Sheet | Normal Size: | 1mm*1400mm*20m; 2*1250*1950mm;3*1200*1900mm |
| Advantage: | Light, Excellent Elasticity | Application: | Insoles, Yoga Mat |
| Highlight: | 2mm thick mtpu foam,2mm thick mtpu porous foam |
||
Product Description
White 2mm Thick No Chemical Blowing Agent MTPU Foaming Sheet For Shoes Lining
Green foaming process:Supercritical CO2 instead of traditional foam agent
A large number of micron bubbles are formed in the polymer material
Foam density:25kg/m3 to 100kg/m3,thickness more than 30mm;
Supercritical CO2 molding foam technology can be used in many types of polymer, such as PP,POE,TPE,PA6 and so on
The advantage of supercritical CO2 foam:
√ All supercritical physical foaming
√ Environmental protection without odor
√ No chemical redisue
√Can be recyclableBack
√Light,weight,high strength,high elasticity,excellent mechanical properties
Specification:
|
Product name |
White Black TPU Foam CO2 Foaming MTPU New Foam Materia |
|
Color |
White,Black |
|
Density |
0.12~0.18g/cm³ |
|
Thickness |
0.5-30mm |
|
Width |
1.4-1.45m |
|
Surface |
Perforated foamed sheet, Non-perforated foamed sheet |
|
Foaming principle |
Supercritical Carbon Dioxide Technology |
|
Advantage |
Light, Excellent elasticity, High tensile strength,Zero VOC, 100% recyclable, Soft fell, Water resistance |
|
Specification |
1mm*1400mm*20m; 2*1250*1950mm;3*1200*1900mm |
|
Application |
Insoles, Yoga mat, Camera, Garment lettering film, Clothing lining, bags lining, shoes lining,Soles,Protective gear |
|
Test Items |
M-TPU12 |
M-TPU16 |
M-TPU20 |
|
Density |
0.12±0.015 |
0.14~0.18 |
0.18~0.22 |
|
Hardness |
23±3 |
27 |
34 |
|
Tensile Strength |
1.4 |
4 |
4.4 |
|
Elongation at Break |
130 |
320 |
360 |
|
Method A Tear Trouser Test |
20 |
42 |
52 |
|
Method B Tear AngleTest |
90 |
96 |
110 |
|
Ball Resilience |
≥65 |
68 |
66 |
|
Compression Set |
26 |
25 |
23 |
|
Sun Test |
/ |
4 |
4 |
Application:
Sock Liner Fitness mat
FAQ:
Q1:Do you have design services?
Yes, we have R & D department,we can develop new design as required.
Q2:Is sample free?
Yes,we can offer free samples by small pieces.
Q3:What supercritical dioxide Co2 foam could we provide?
MTPU foam,MPP foam, M-PVDF foam
