Recyclable ScCO2 Foming TPU Sheet Environmentally Friendly For Garment Lettering Film
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Recyclable ScCO2 Foming TPU Sheet Environmentally Friendly For Garment Lettering Film | Material: | Microcellular Thermoplastic Elastomers-MTPU |
|---|---|---|---|
| Thickness: | 0.6-30mm | Structure: | Non- Crosslinked |
| Surface: | Perforated Foamed Sheet, Non-perforated Foamed Sheet | Normal Size: | 1mm*1400mm*20m |
| Advantage: | 100% Recyclable High Elastic | Application: | Wafer CMP Pads |
| Highlight: | Garment Lettering Film ScCO2 Foming,Environmentally Friendly ScCO2 Foming |
||
Product Description

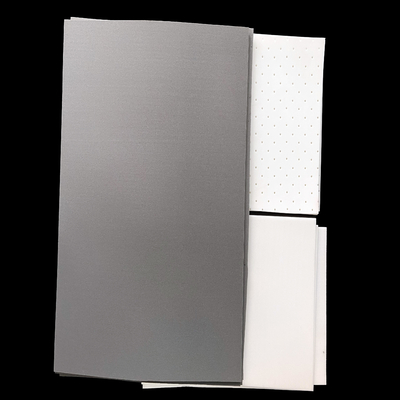

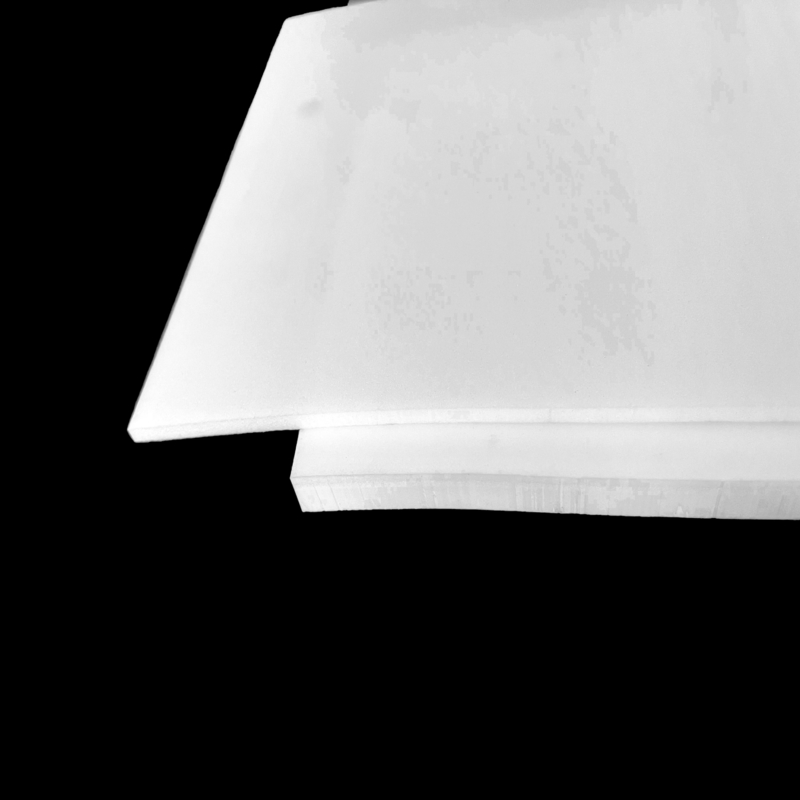

Recyclable ScCO2 Foming TPU Sheet Environmentally Friendly For Garment Lettering Film
Supercritical CO2 Foam Technology specializes in the development and green manufacturing of clean and environmentally friendly high performance lightweight polymer foams.We use N2 and CO2 gases commonly found in the air to expand the plastic and form a large number of micro and nano bubbles inside. This is a purely physical foaming process with no chemical blowing agents added and no chemical cross-linking during the foaming process. Compared with traditional foaming materials, our material is recyclable, non-toxic and environmentally friendly, and meets the needs of sustainable development.
MTPU foam sheet is suitable for insole, midsole and filler
Specification:
|
Product name |
White Black TPU Foam CO2 Foaming MTPU New Foam Materia |
|
Color |
White,Black |
|
Density |
0.12~0.18g/cm³ |
|
Thickness |
0.5-30mm |
|
Width |
1.4-1.45m |
|
Surface |
Perforated foamed sheet, Non-perforated foamed sheet |
|
Foaming principle |
Supercritical Carbon Dioxide Technology |
|
Advantage |
Light, Excellent elasticity, High tensile strength,Zero VOC, 100% recyclable, Soft fell, Water resistance |
|
Specification |
1mm*1400mm*20m; 2*1250*1950mm;3*1200*1900mm |
|
Application |
Insoles, Yoga mat, Camera, Garment lettering film, Clothing lining, bags lining, shoes lining,Soles,Protective gear |
|
Test Items |
M-TPU12 |
M-TPU16 |
M-TPU20 |
|
Density |
0.12±0.015 |
0.14~0.18 |
0.18~0.22 |
|
Hardness |
23±3 |
27 |
34 |
|
Tensile Strength |
1.4 |
4 |
4.4 |
|
Elongation at Break |
130 |
320 |
360 |
|
Method A Tear Trouser Test |
20 |
42 |
52 |
|
Method B Tear AngleTest |
90 |
96 |
110 |
|
Ball Resilience |
≥65 |
68 |
66 |
|
Compression Set |
26 |
25 |
23 |
|
Sun Test |
/ |
4 |
4 |
Application:
Fitness Mat Yoga mat
FAQ:
Q1:For the afer-sale service, how to solve the problem of your overseas customer in time?
The warranty of our products is one year.If our products or packing exist quality problem,we will replace or compensate accordingly
Q2:.Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
Q3:Where is our port of loading?
Shekou or Tantian Port in Shenzhen
