Supercritical CO2 Foaming MTPU Foamed Sheet Excellent Elasticity For Bags Lining
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Supercritical CO2 Foaming MTPU Foamed Sheet Excellent Elasticity For Bags Lining | Material: | Microcellular TPU Foam |
|---|---|---|---|
| Density: | 0.12-0.22g/cm³ | Structure: | Close Cell Foam |
| Color: | White Black | Normal Size: | 1mm*1400mm*20m; 2*1250*1950mm;3*1200*1900mm |
| Advantage: | Light, Excellent Elasticity | Application: | Insoles, Yoga Mat, Camera |
| Highlight: | co2 foaming mtpu foamed sheet,co2 foaming mtpu sheet |
||
Product Description
Supercritical CO2 Foaming MTPU Foamed Sheet Excellent Elasticity For Bags Lining
MTPU is microcellular TPU foam, produced using thermoplastic polyurethane (TPU) as the composition with clean supercritical carbon dioxide as blowing agent to form a large number of microcells in the matrix
- Light weight
- Clean and environmental friendly
- Good cushion performance
- Excellent low temperature resistance
- Good chemical resistance
- Recyclable
- Outstanding resilience
- High tensile strength
Specification:
|
Product name |
White Black TPU Foam CO2 Foaming MTPU New Foam Materia |
|
Color |
White,Black |
|
Density |
0.12~0.18g/cm³ |
|
Thickness |
0.5-30mm |
|
Width |
1.4-1.45m |
|
Surface |

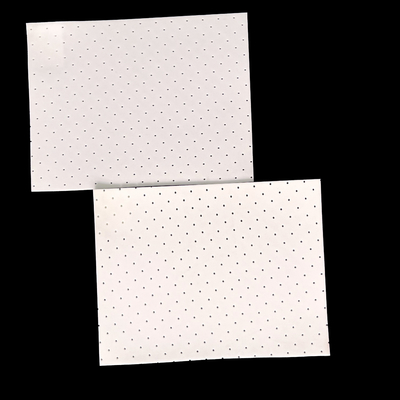

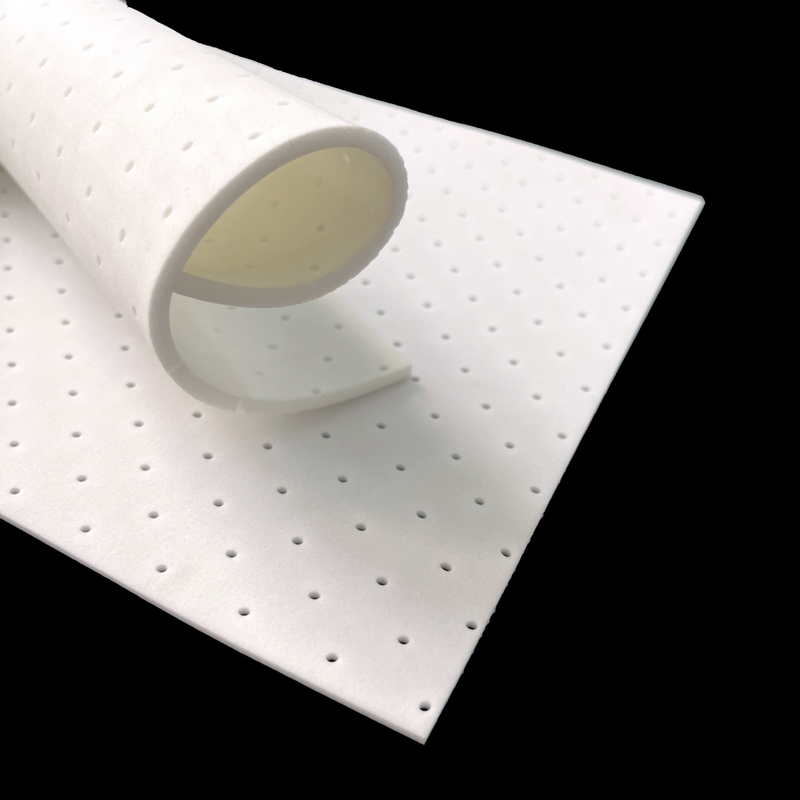

Perforated foamed sheet, Non-perforated foamed sheet |
|
Foaming principle |
Supercritical Carbon Dioxide Technology |
|
Advantage |
Light, Excellent elasticity, High tensile strength,Zero VOC, 100% recyclable, Soft fell, Water resistance |
|
Specification |
1mm*1400mm*20m; 2*1250*1950mm;3*1200*1900mm |
|
Application |
Insoles, Yoga mat, Camera, Garment lettering film, Clothing lining, bags lining, shoes lining,Soles,Protective gear |
|
Test Items |
M-TPU12 |
M-TPU16 |
M-TPU20 |
|
Density |
0.12±0.015 |
0.14~0.18 |
0.18~0.22 |
|
Hardness |
23±3 |
27 |
34 |
|
Tensile Strength |
1.4 |
4 |
4.4 |
|
Elongation at Break |
130 |
320 |
360 |
|
Method A Tear Trouser Test |
20 |
42 |
52 |
|
Method B Tear AngleTest |
90 |
96 |
110 |
|
Ball Resilience |
≥65 |
68 |
66 |
|
Compression Set |
26 |
25 |
23 |
|
Sun Test |
/ |
4 |
4 |
Application:
Sock Liner Yoga mat
FAQ:
Q1:Do you have design services?
Yes, we have R & D department,we can develop new design as required.
Q2:How about delivery time?
Normally our delivery time is about 15-20 days after confirm your deposit.
Q3:Where is our port of loading?
Shekou or Tantian Port in Shenzhen
