Anti Shrinkage CO2 Foaming Porous TPU Foam Sheet Lightweight For Shoes Lining
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Anti Shrinkage CO2 Foaming Porous TPU Foam Sheet Lightweight For Shoes Lining | Material: | Microcellular TPU Foam |
|---|---|---|---|
| Density: | 0.12-0.22g/cm³ | Structure: | Close Cell Foam |
| Surface: | Perforated Foamed Sheet, Non-perforated Foamed Sheet | Normal Size: | 1mm*1400mm*20m; 2*1250*1950mm;3*1200*1900mm |
| Advantage: | Light, Excellent Elasticity | Application: | Insoles, Yoga Mat, |
| Highlight: | co2 foaming mtpu foam,co2 foaming mtpu porous foam |
||
Product Description

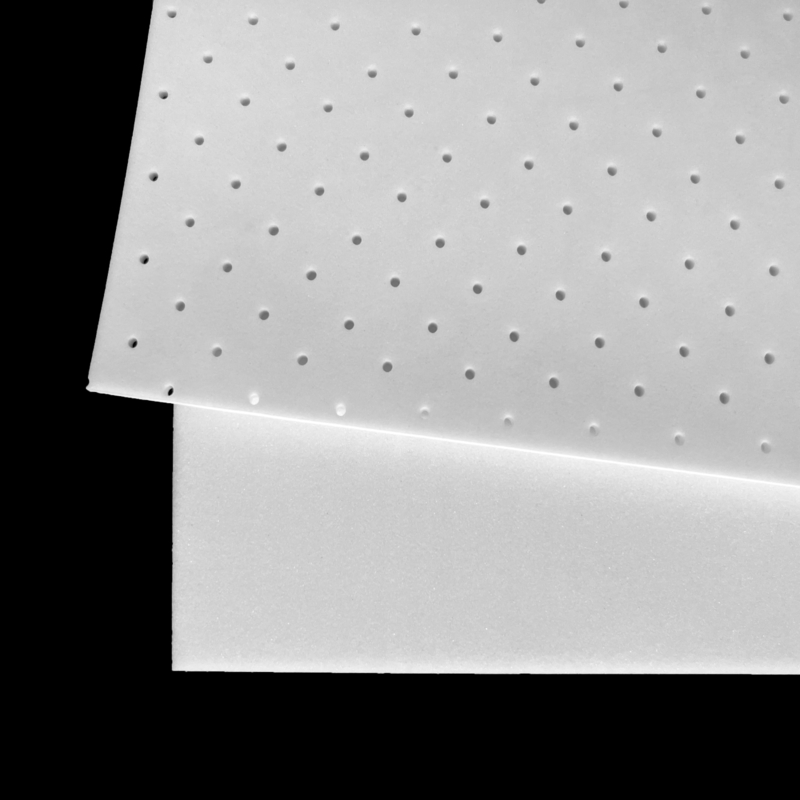

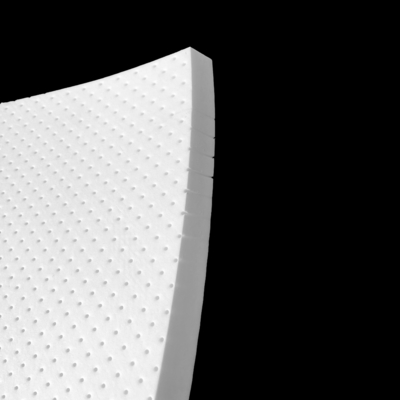

Anti Shrinkage CO2 Foaming Porous TPU Foam Sheet Lightweight For Shoes Lining
Perforated MTPU is microcellular TPU foam, produced using thermoplastic polyurethane (TPU) as the composition with clean supercritical carbon dioxide as blowing agent to form a large number of microcells in the matrix
1.High-elastic means no wrinkles occur, it bounces back quickly after being pressed
2. Super light-weight and soft; weight 300g per square meter
3. Excellent tear strength, withstanding tension of 63kg
4. Oil and dirt resistance
5. Environmentally friendly without odor and waterproof.
The use of PUR adhesive for bonding means 0 formaldehyde, 0 phthalates, safety of medical grade MTPU foam could be recycled
Specification:
|
Product name |
White Black TPU Foam CO2 Foaming MTPU New Foam Materia |
|
Color |
White,Black |
|
Density |
0.12~0.18g/cm³ |
|
Thickness |
0.5-30mm |
|
Width |
1.4-1.45m |
|
Surface |
Perforated foamed sheet, Non-perforated foamed sheet |
|
Foaming principle |
Supercritical Carbon Dioxide Technology |
|
Advantage |
Light, Excellent elasticity, High tensile strength,Zero VOC, 100% recyclable, Soft fell, Water resistance |
|
Specification |
1mm*1400mm*20m; 2*1250*1950mm;3*1200*1900mm |
|
Application |
Insoles, Yoga mat, Camera, Garment lettering film, Clothing lining, bags lining, shoes lining,Soles,Protective gear |
|
Test Items |
M-TPU12 |
M-TPU16 |
M-TPU20 |
|
Density |
0.12±0.015 |
0.14~0.18 |
0.18~0.22 |
|
Hardness |
23±3 |
27 |
34 |
|
Tensile Strength |
1.4 |
4 |
4.4 |
|
Elongation at Break |
130 |
320 |
360 |
|
Method A Tear Trouser Test |
20 |
42 |
52 |
|
Method B Tear AngleTest |
90 |
96 |
110 |
|
Ball Resilience |
≥65 |
68 |
66 |
|
Compression Set |
26 |
25 |
23 |
|
Sun Test |
/ |
4 |
4 |
Application:
Sock Liner Yoga mat
FAQ:
Q1:Do you have design services?
Yes, we have R & D department,we can develop new design as required.
Q2:How about delivery time?
Normally our delivery time is about 15-20 days after confirm your deposit.
Q3:For the afer-sale service, how to solve the problem of your overseas customer in time?
The warranty of our products is one year.If our products or packing exist quality problem,we will replace or compensate accordingly
