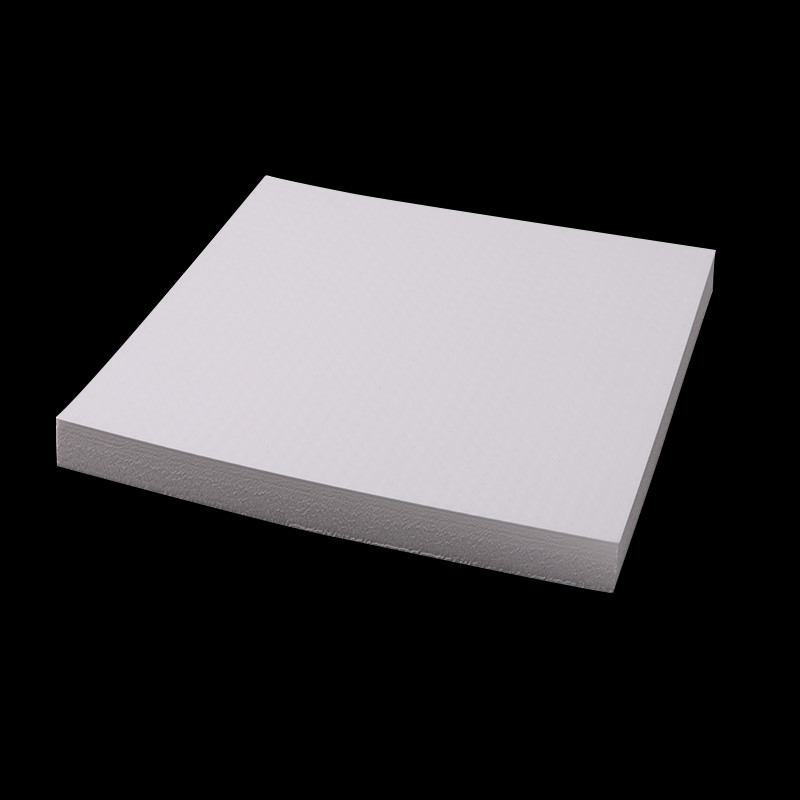

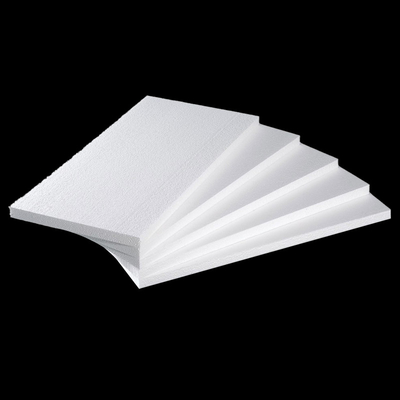

Zero VOC Porous Foam Material MPP Foaming Sheet For Aviation Model
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.35-0.84/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Zero VOC Porous Foam Material MPP Foaming Sheet For Aviation Model | Matrial: | Microcellular High- Strength PP Foams |
|---|---|---|---|
| Density: | 38-85kg/m³ | Thickness: | 0.5-30mm |
| Color: | White | Cell Structure: | Non-crosslinked |
| Application: | Battery Buffers | Advantage: | Flame Retardant |
| Highlight: | mpp foaming sheet 25kg/m3,mpp foaming sheet for aviation model |
||
Product Description
Zero VOC Porous Foam Material MPP Foaming Sheet For Aviation Model
Green foaming process:Supercritical CO2 instead of traditional foam agent
A large number of micron bubbles are formed in the polymer material
Foam density:25kg/m3 to 100kg/m3,thickness more than 30mm;
Supercritical CO2 molding foam technology can be used in many types of polymer, such as PP,POE,TPE,PA6 and so on
The crisis of traditional foam:
× Poor production conditions
× VOCS problem
× Inflammable and explosive
× Bad to the environment
The advantage of supercritical CO2 foam:
√ All supercritical physical foaming
√ Environmental protection without odor
√ No chemical redisue
√ Can be recyclable
√ Light,weight,high strength,high elasticity,excellent mechanical properties
Specification:
| Test Item | Test Method | Unit | Typical Values |
| Density | ISO 845:2006 | Kg/m³ | 30-100 |
| Hot Deformation Temperature | ISO 75-2 | ℃ | 120 |
| Thermal Conductivity | GB/T 10294-2008 | W/(m*k) | 0.04 |
| Water Absorption | CNS2536-1990 THE 3RD, 10TH SECTION | % | ＜0.10 |
| Chemical Resistance | / | / | Resistant to strong acids and alkalis |
|
|
MPP-10 |
MPP-15 |
MPP-25 |
|---|---|---|---|
|
Density (kg/m³) |
85±15 |
59±11 |
38±8 |
|
Hardness (°) |
79±5 |
70±5 |
59±7 |
|
Compression Strength |
10%:0.26~0.78 |
10%:0.24~0.66 |
10%:0.08~0.27 |
|
Tensile Strength(Mpa) |
≥3.5 |
≥2.5 |
≥1.5 |
|
Shear Strength(Mpa) |
≥2 |
≥1.6 |
≥1.1 |
|
Thermal Comductvity |
0.04 |
0.04 |
0.04 |
|
Temperature Humidity Bias Test (85℃/85%RH 1000H) |
The performance keep the same |
||
|
Insulation Resistance |
≥500MΩ,Leakage of electricity＜1mA |
||
|
Resilience |
≥30% |
||
Application:
Power battery cushion
FAQ:
Q1:.Where is our port of loading?
Shekou or Yantian Port in Shenzhen
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q3:How many kinds of foam could you provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam,,ESD foam,EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and PE foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
