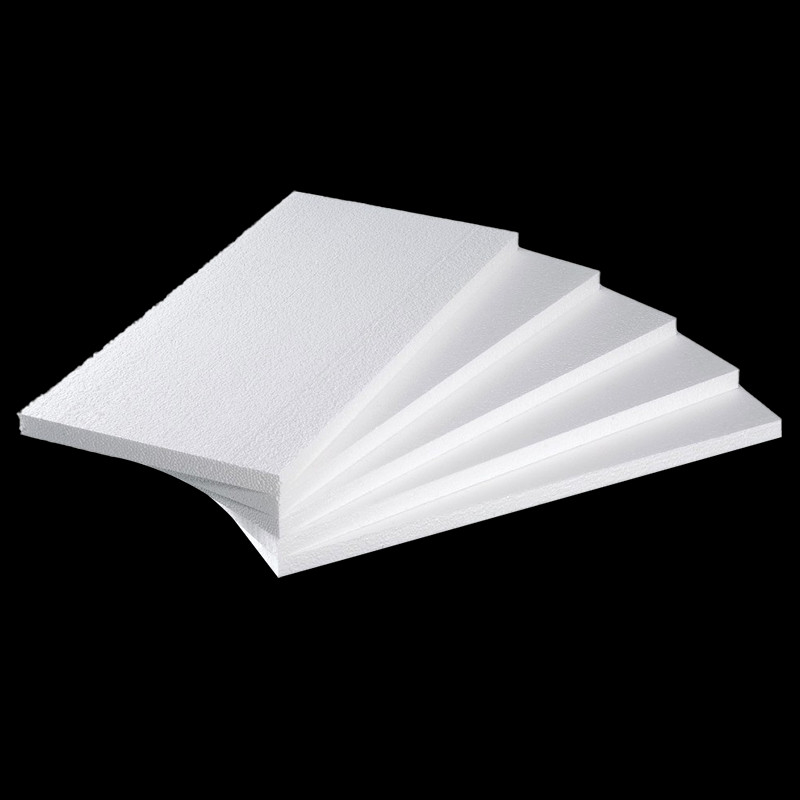

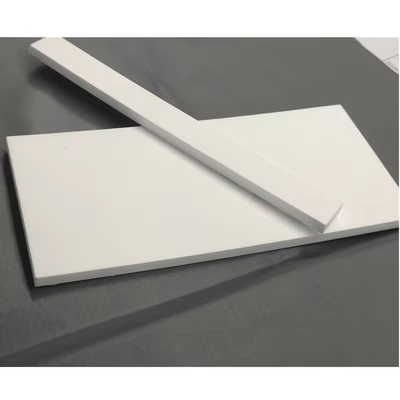

White Supercritical Co2 Foaming MPP Foam Sheet Thermal Insulated For Military
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.35-0.84/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | White Supercritical Co2 Foaming MPP Sheet Thermal Insulated For Military | Matrial: | Microcellular High- Strength PP Foams |
|---|---|---|---|
| Density: | 38-85kg/m³ | Thickness: | 0.5-30mm |
| Thermal Comductvity: | 0.04w/m.k | Cell Structure: | Non-crosslinked |
| Application: | Pouch Cells And Power Batteries | Advantage: | Lightweight |
| Highlight: | mpp foam sheet thermal insulated,supercritical co2 mpp foam sheet,supercritical co2 mpp sheet foam |
||
Product Description
White Supercritical Co2 Foaming MPP Sheet Thermal Insulated For Military
Green foaming process:Supercritical CO2 instead of traditional foam agent
A large number of micron bubbles are formed in the polymer material
Foam density:25kg/m3 to 100kg/m3,thickness more than 30mm;
Supercritical CO2 molding foam technology can be used in many types of polymer, such as PP,POE,TPE,PA6 and so on
Functions of MPP:
(1) Scalable deformation, compensation for assembly tolerances, providing preload
(2) UL94 HF-1 Flame-retardant
(3) Resistance to electrolyte corrosion
(4) Withstanding voltage breakdown
Our current lightweight foam materials:MPP,MTPU,M-PVDF:
All supercritical physical foaming, environmental protection without odor;
2) No chemical residue
3) Closed cell structure,exquisite cells, nanoscale aperture diameter
4) Light weight, high strength, high elasticity, excellent mechanical properties;
5) Non crosslinked, can be recyclable.
Specification:
| Test Item | Test Method | Unit | Typical Values |
| Density | ISO 845:2006 | Kg/m³ | 30-100 |
| Hot Deformation Temperature | ISO 75-2 | ℃ | 120 |
| Thermal Conductivity | GB/T 10294-2008 | W/(m*k) | 0.04 |
| Water Absorption | CNS2536-1990 THE 3RD, 10TH SECTION | % | ＜0.10 |
| Chemical Resistance | / | / | Resistant to strong acids and alkalis |
|
|
MPP-10 |
MPP-15 |
MPP-25 |
|
Density (kg/m³) |
85±15 |
59±11 |
38±8 |
|
Hardness (°) |
79±5 |
70±5 |
59±7 |
|
Compression Strength |
10%:0.26~0.78 |
10%:0.24~0.66 |
10%:0.08~0.27 |
|
Tensile Strength(Mpa) |
≥3.5 |
≥2.5 |
≥1.5 |
|
Shear Strength(Mpa) |
≥2 |
≥1.6 |
≥1.1 |
|
Thermal Comductvity |
0.04 |
0.04 |
0.04 |
|
Temperature Humidity Bias Test (85℃/85%RH 1000H) |
The performance keep the same |
||
|
Insulation Resistance |
≥500MΩ,Leakage of electricity＜1mA |
||
|
Resilience |
≥30% |
||
Application:
Power battery cushion
FAQ:
Q1:.Where is our port of loading?
Shekou or Yantian Port in Shenzhen
Q2:Is sample free?
Yes,we can offer free samples by small pieces.
Q3:How many kinds of foam could you provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam,,ESD foam,EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and PE foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
