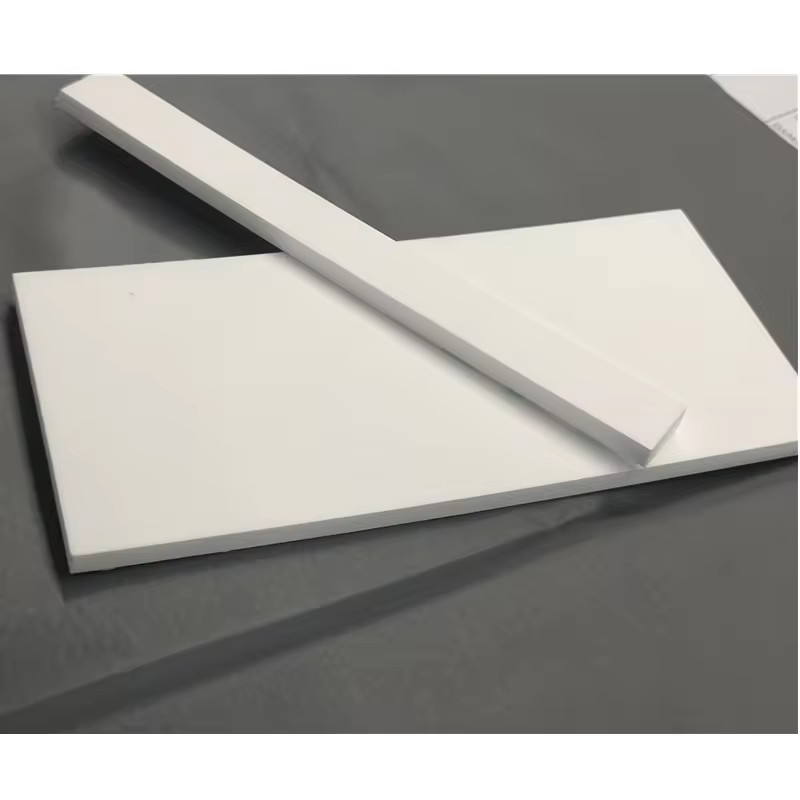

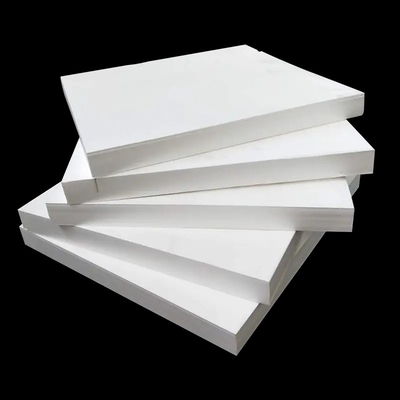

Waterproof MPP Foam Sheet Supercritical CO2 Molding Foam Porous For Lithium Battery
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $0.35-0.84/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Waterproof Supercritical CO2 Molding Foam Porous MPP Sheet For Lithium Battery | Matrial: | Microcellular High- Strength PP Foams |
|---|---|---|---|
| Density: | 38-85kg/m³ | Thickness: | 0.5-30mm |
| Thermal Comductvity: | 0.04w/m.k | Cell Structure: | Non-crosslinked |
| Application: | Radomes For 5G Communication | Advantage: | 100% Recyclable |
| Highlight: | supercritical co2 mpp foam,supercritical co2 mpp porous foam,lithium battery mpp foam |
||
Product Description
Waterproof Supercritical CO2 Molding Foam Porous MPP Sheet For Lithium Battery
Green foaming process:Supercritical CO2 instead of traditional foam agent
A large number of micron bubbles are formed in the polymer material
Foam density:25kg/m3 to 100kg/m3,thickness more than 30mm;
Supercritical CO2 molding foam technology can be used in many types of polymer, such as PP,POE,TPE,PA6 and so on
MPP Properties:
Low dielectric constant and dielectric loss meeting the demand of microwave transmission
Lightweight and high-strength, wind resistance
Water-resistant, not hanging water on the surface
therefore not affecting the wave transmission
Anti-photooxidative aging, 10-year lifespan
Specification:
| Test Item | Test Method | Unit | Typical Values |
| Density | ISO 845:2006 | Kg/m³ | 30-100 |
| Hot Deformation Temperature | ISO 75-2 | ℃ | 120 |
| Thermal Conductivity | GB/T 10294-2008 | W/(m*k) | 0.04 |
| Water Absorption | CNS2536-1990 THE 3RD, 10TH SECTION | % | ＜0.10 |
| Chemical Resistance | / | / | Resistant to strong acids and alkalis |
|
|
MPP-10 |
MPP-15 |
MPP-25 |
|
Density (kg/m³) |
85±15 |
59±11 |
38±8 |
|
Hardness (°) |
79±5 |
70±5 |
59±7 |
|
Compression Strength |
10%:0.26~0.78 |
10%:0.24~0.66 |
10%:0.08~0.27 |
|
Tensile Strength(Mpa) |
≥3.5 |
≥2.5 |
≥1.5 |
|
Shear Strength(Mpa) |
≥2 |
≥1.6 |
≥1.1 |
|
Thermal Comductvity |
0.04 |
0.04 |
0.04 |
|
Temperature Humidity Bias Test (85℃/85%RH 1000H) |
The performance keep the same |
||
|
Insulation Resistance |
≥500MΩ,Leakage of electricity＜1mA |
||
|
Resilience |
≥30% |
||
Application:
Power battery cushion
FAQ:
Q1:.Where is our port of loading?
Shekou or Yantian Port in Shenzhen
Q2:Is sample free?
Yes,we can offer free samples by small pieces.
Q3:How many kinds of foam could you provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam,,ESD foam,EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and PE foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
