White Color PVDF Foam Sheet Thermal Insulation For Tube Insulated System
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | White Color PVDF Foam Sheet Thermal Insulation For Tube Insulated System | Material: | Lightweight Aviation Interior Foam |
|---|---|---|---|
| Cell Structure: | Non-crosslinked | Foam Principle: | Supercritical Carbon Dioxide Technology |
| Advantage: | Light,Zero VOC | Application: | Aircraft Interior Finishing And Structural Parts |
| Highlight: | pvdf foam sheet thermal insulation,thermal insulation pvdf foaming sheet |
||
Product Description

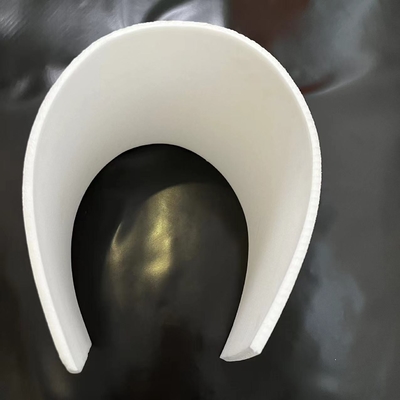

White Color PVDF Foam Sheet Thermal Insulation For Tube Insulated System
Our current lightweight foam materials:MPP,MTPU,M-PVDF:
1)All supercritical physical foaming, environmental protection without odor;
2) No chemical residue
3) Closed cell structure,exquisite cells, nanoscale aperture diameter
4) Light weight, high strength, high elasticity, excellent mechanical properties;
5) Non crosslinked, can be recyclable.
The crisis of traditional foam:
× Poor production conditions
× VOCS problem
× Inflammable and explosive
× Bad to the environment
The advantage of supercritical CO2 foam:
√ All supercritical physical foaming
√ Environmental protection without odor
√ No chemical redisue
√Can be recyclable
√Light,weight,high strength,high elasticity,excellent mechanical properties
Specification:
| Test Item | Test method | Unit | PVDF05 |
| Density | ISO845:2006 | g/cm³ | 0.045-0.07 |
| Hardness | SATRA TM205-16 | shore C | 42 |
| Tensile Strength (MPa) |
ISO1798:2008 | MPa | 0.84 |
| Elongation at Break (%) |
ISO1798:2008 | % | 148 |
| Shrinkage | ASTM D1148 | % | 3(120℃) |
| compression rebound | ASTM D1148 (50% 22h) |
% | 1.47(24h) |
| Method A Tear Trouser Test (N/cm) |
ISO8067:2008 | N/cm | / |
| Method B Tear AngleTest (N/cm) |
ISO8067:2008 | N/cm | 38.75 |
| Ball Resilience (%) |
ASTM D3574 | % | 50.5 |
Application:
Clean pipe Medical neck colla
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q3:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
