Lightweight PVDF Sheet Foaming Aging Resistance For Reducers Insulation
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | Lightweight PVDF Sheet Foaming Aging Resistance For Reducers Insulation | Material: | Lightweight Aviation Interior Foam |
|---|---|---|---|
| Cell Structure: | Non-crosslinked | Color: | White |
| Advantage: | Lightweight | Application: | Medical |
| Highlight: | aging resistance pvdf sheet foam,non crosslinked pvdf sheet foam |
||
Product Description

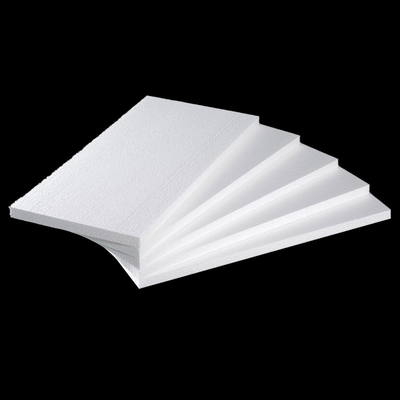

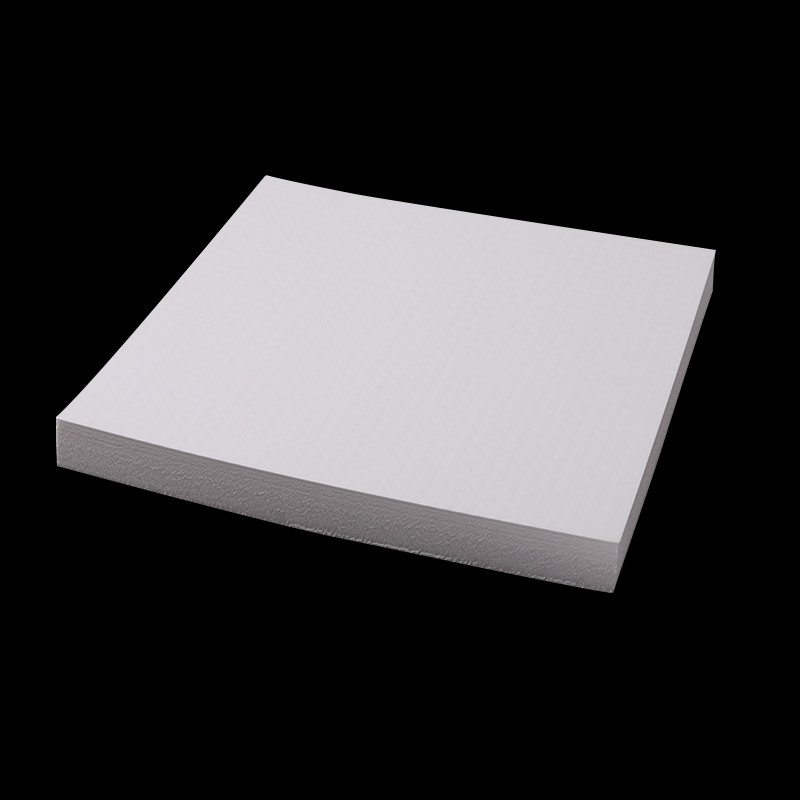

Lightweight PVDF Sheet Foaming Aging Resistance For Reducers Insulation
Supercritical CO2 Foam Technology specializes in the development and green manufacturing of clean and environmentally friendly high performance lightweight polymer foams.We use N2 and CO2 gases commonly found in the air to expand the plastic and form a large number of micro and nano bubbles inside. This is a purely physical foaming process with no chemical blowing agents added and no chemical cross-linking during the foaming process. Compared with traditional foaming materials, our material is recyclable, non-toxic and environmentally friendly, and meets the needs of sustainable development.
PVDF (poly vinylidene fluoride) foaming sheet has outstanding resistance to a wide range of aggressive chemicals. It also offers excellent toughness, wide temperature tolerance (-40 to 160℃), high dielectric strength and excellent resistance to nuclear radiation, UV and ageing.
Specification:
| Test Item | Test method | Unit | PVDF05 |
| Density | ISO845:2006 | g/cm³ | 0.045-0.07 |
| Hardness | SATRA TM205-16 | shore C | 42 |
| Tensile Strength (MPa) |
ISO1798:2008 | MPa | 0.84 |
| Elongation at Break (%) |
ISO1798:2008 | % | 148 |
| Shrinkage | ASTM D1148 | % | 3(120℃) |
| compression rebound | ASTM D1148 (50% 22h) |
% | 1.47(24h) |
| Method A Tear Trouser Test (N/cm) |
ISO8067:2008 | N/cm | / |
| Method B Tear AngleTest (N/cm) |
ISO8067:2008 | N/cm | 38.75 |
| Ball Resilience (%) |
ASTM D3574 | % | 50.5 |
Application:
Clean pipe Medical neck colla
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How long is your production lead time?
1) Sample date will take be in 7 days
2)Mass production delivery date will be around 15-45 days,Depends on the quantity.
Q3:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
