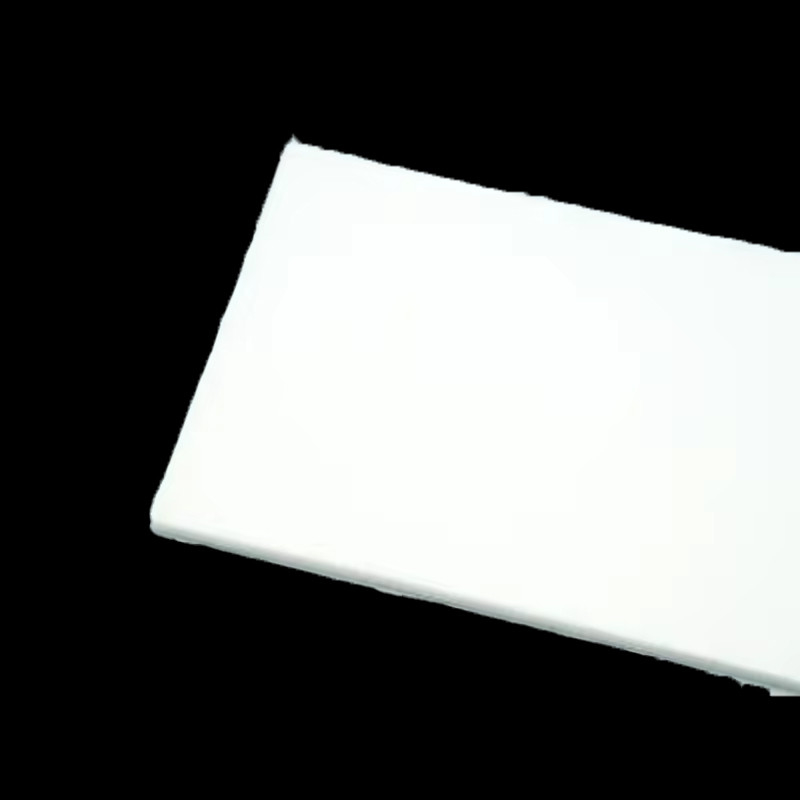

0.05g/Cm3 Lighweight Co2 Foaming PVDF Foam Sheet Material Recycle For Pipe Insulation
Product Details:
| Place of Origin: | Made In China |
| Brand Name: | EkkoFlex |
| Certification: | ROHS,REACH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3000㎡ |
|---|---|
| Price: | $3.34-5.2/㎡ |
| Packaging Details: | poly bag or customized |
| Delivery Time: | 7-14 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000000m per month |
|
Detail Information |
|||
| Product Name: | 0.05g/Cm3 Lighweight Co2 Foaming PVDF Foam Sheet Material Recycle For Pipe Insulation | Material: | M-PVDF Foam Supercritical Carbon Dioxide Foam |
|---|---|---|---|
| Color: | White | Density: | 40-70kg/m³ |
| Advantage: | 100% Recyclable | Application: | Aircraft Interior Finishing And Structural Parts |
| Highlight: | 0.05g/cm3 pvdf foam sheet,0.05g/cm3 pvdf foaming sheet,pipe insulation pvdf foam sheet |
||
Product Description
0.05g/Cm3 Lighweight Co2 Foaming PVDF Foam Sheet Material Recycle For Pipe Insulation
PVDF (poly vinylidene fluoride) foaming sheet has outstanding resistance to a wide range of aggressive chemicals. It also offers excellent toughness, wide temperature tolerance (-40 to 160℃), high dielectric strength and excellent resistance to nuclear radiation, UV and ageing.
Green foaming process:Supercritical CO2 instead of traditional foam agent
A large number of micron bubbles are formed in the polymer material
Foam density:25kg/m3 to 100kg/m3,thickness more than 30mm;
Supercritical CO2 molding foam technology can be used in many types of polymer, such as PP,TPU,PVDF and so on
Specification:
| Test Item | Test method | Unit | PVDF05 |
| Density | ISO845:2006 | g/cm³ | 0.045-0.07 |
| Hardness | SATRA TM205-16 | shore C | 42 |
| Tensile Strength (MPa) |
ISO1798:2008 | MPa | 0.84 |
| Elongation at Break (%) |
ISO1798:2008 | % | 148 |
| Shrinkage | ASTM D1148 | % | 3(120℃) |
| compression rebound | ASTM D1148 (50% 22h) |
% | 1.47(24h) |
| Method A Tear Trouser Test (N/cm) |
ISO8067:2008 | N/cm | / |
| Method B Tear AngleTest (N/cm) |
ISO8067:2008 | N/cm | 38.75 |
| Ball Resilience (%) |
ASTM D3574 | % | 50.5 |
Application:
Clean pipe Medical neck colla
FAQ:
Q1:How can I place an order?
1)Tell us the size details and quantity you want to order.
2)We will make PI for you.
3)Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4)We will take photos for you to confirm and then deliver the goods soon after the balance.
5)Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q2:How many kinds of foam could you provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam,,ESD foam,EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and PE foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
Q3:Do you accept customized foam products ?
We have customized production service, we can produce foam products as per client’s requests.
Q4:How long you could prepare samples?
Normally 3days if we have the sample in hand. If customized one, about a week around.
